        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator

        Dayton Audio DMA90-PR 3-1/2" Aluminum Cone Passive Radiator

        €13,95

        3 In stock

        Add to cart

        Dayton Audio DMA90-PR 3-1/2" Aluminum Cone Passive Radiator

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all Passive radiator
        passive | 3.5"
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        € 11,53€ 13,95 3 In stock
        • -5% Purchase 4 for only € 13,25 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator
        DMA90-PR 3-1/2" Aluminum Cone Passive Radiator

        Product description Dayton Audio DMA90-PR Passive Radiator

        Dayton Audio's DMA90-PR 3-1/2" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.



        Highlights

        • Perfect match for the Dayton Audio DMA series drivers
        • Allows tuning small enclosures lower than using conventional ports

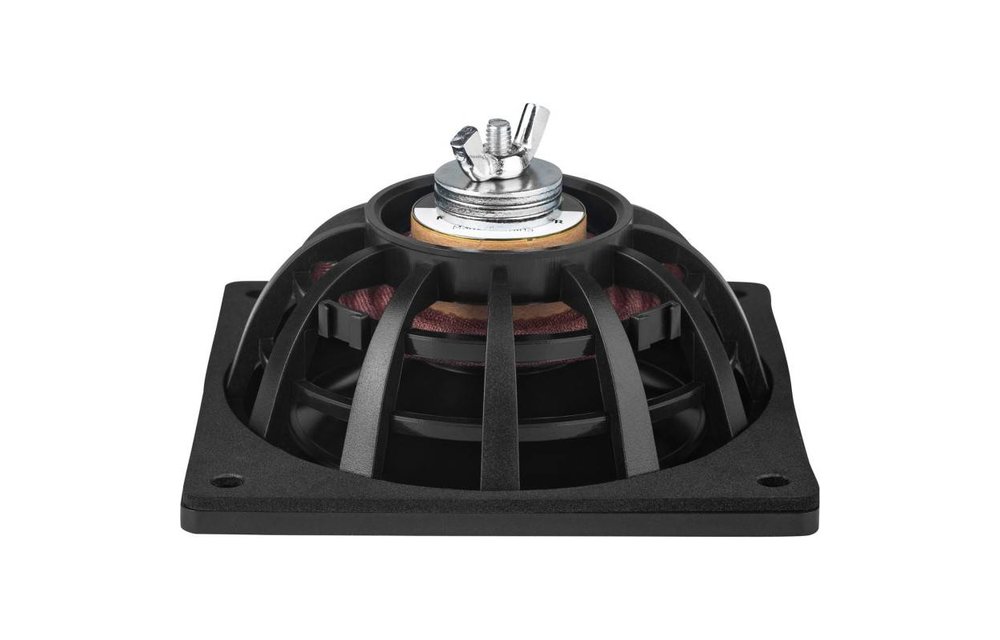

        • Rear mounted threaded post allows easy mass adjustment for custom tuning
        • DIY friendly, oversized mounting flange makes installation simple



        Product details

        Dayton Audio DMA90-PR 3-1/2" DMA Series Passive Radiator

        The DMA90-PR 3-1/2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA90-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA90-PR introduces a new range of possibilities.



        Specifications: • Fs: 38.0 Hz • Vas: 0.082 ft³ (2.32 liters) • Qms: 5.01 • Cms: 1.10 mm/N • Mms: 15.9 g • Rms: 0.76 kg/s • Sd: 38.5 cm² • Xmech: 8 mm • Dimensions: Overall diameter: 3.54" x 3.54", Cutout diameter: 3.29", Depth: 1.85".



        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
        To calculate Vd: Sd x Xmax = Vd

        Show more

        Specifications

        Article number
        DMA90-PR
        EAN
        0848791005640
        Woofer Series
        Dayton Audio DMA series
        Woofer Type
        Passiver radiator
        Resonant Frequency (Fs)
        38 Hz
        Mechanical Q (Qms)
        5.01
        Diaphragm Mass Inc. Airload (Mms)
        15.9 g
        Mechanical Compliance of Suspension (Cms)
        1.10 mm/N
        Surface Area of Cone (Sd)
        38.5 cm²
        Compliance Equivalent Volume (Vas)
        0.082 ft³ (2.32 liters)
        Maximum Linear Excursion (Xmax)
        8 mm
        Driver's Mechanical Losses (Rms)
        0.76 kg/s
        Cone / Diaphragm Material
        Aluminum
        Basket / Frame Material
        Polymer
        Overall Outside Diameter
        3.54" x 3.54"
        Overall Depth
        1.85"
        Baffle Cutout Diameter
        3.29"
        Bolt Circle Diameter
        4.25"
        # Mounting Holes
        4

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        Ideal zum Bau von kleinen Lautsprechern, bei denen ein Bassreflexrohr zu lang wäre. Ich benutze 4 stk davon mit einem 10cm tieftöner in 4l Volumen erstaunlich was da an Bass rauskommt. Über die Gewichte kann die Abstimmung leicht vorgenommen werden
        By Axel L. on 18 November 2020
