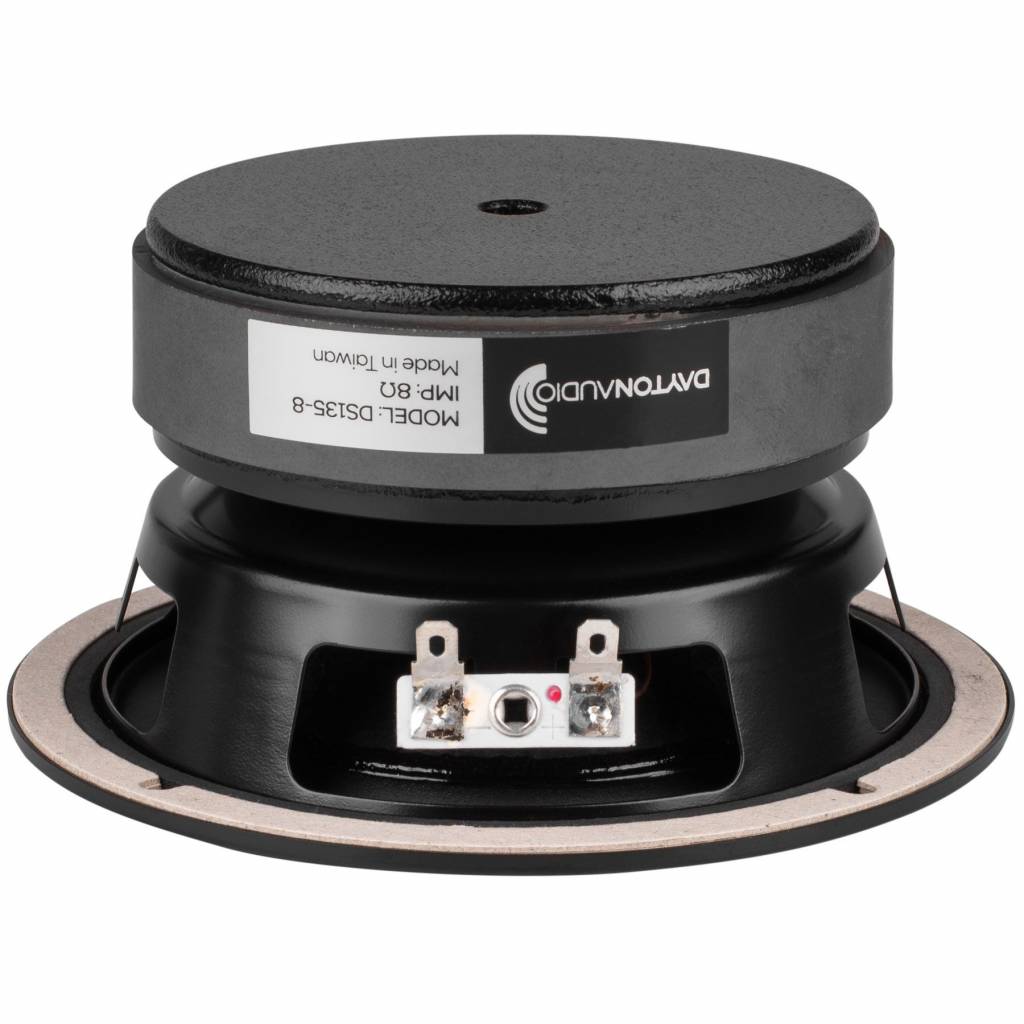

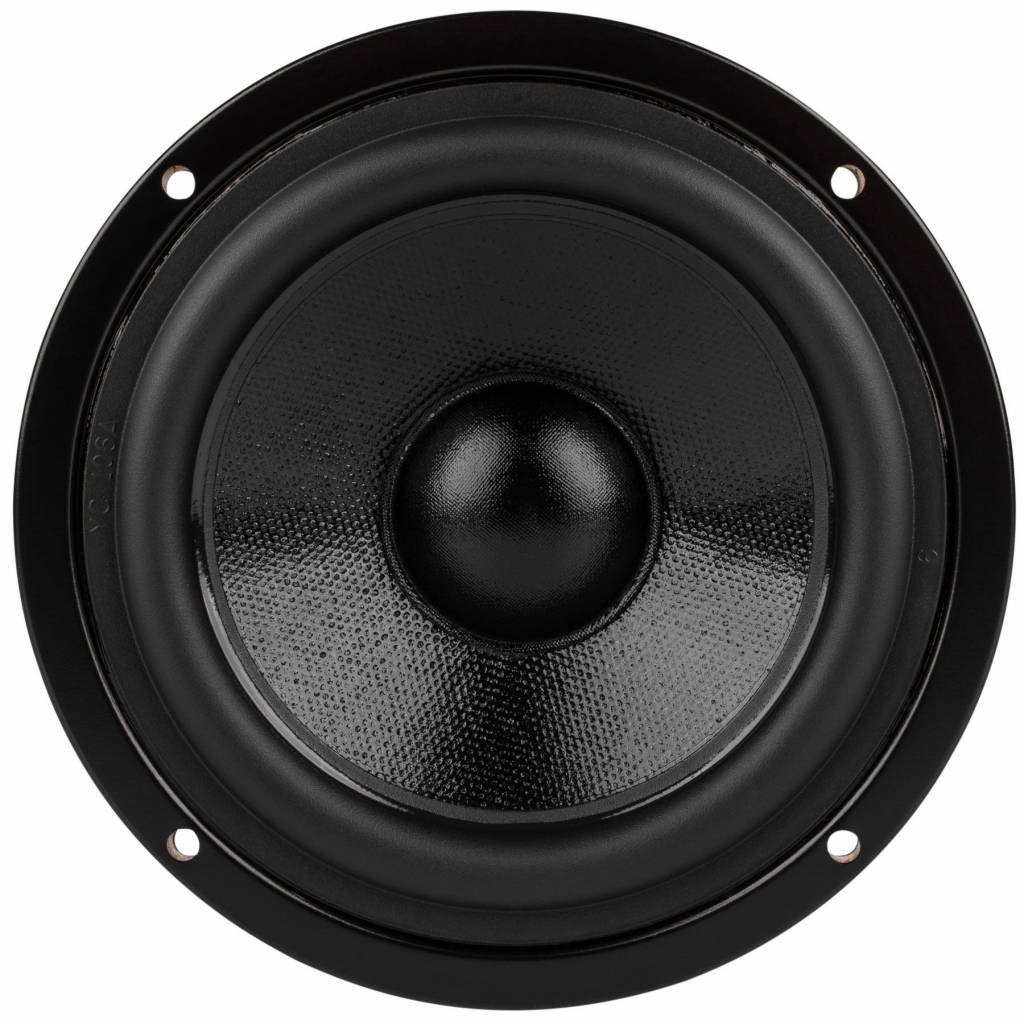

        DS135-8 5" Designer Series Woofer Speaker

        Dayton Audio DS135-8 5" Designer Series Woofer Speaker

        €41,95

        9 In stock10+ expected on 20-12-2024

        Add to cart

        Dayton Audio DS135-8 5" Designer Series Woofer Speaker

        6 reviews
        5 from 5
        6 reviews
        5 stars
        83%
        4 stars
        17%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all Bass-mid woofer
        5" | 8 Ω
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        € 34,67€ 41,95 9 In stock10+ expected on 20-12-2024
        • -5% Purchase 4 for only € 39,85 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker
        DS135-8 5" Designer Series Woofer Speaker

        Product description Dayton Audio Designer DS135-8 Bass-midwoofer

        The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



        Highlights

        • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
        • Coated paper cone, half roll rubber surround for durability and accurate reproduction
        • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
        • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
        • Vented pole piece for minimized power compression and maximized reliability
        • Generous Xmax capability encourages use of moderate bass boost to tailor the response
        • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



        Product details

        Dayton Audio DS135-8 5" Designer Series Woofer Speaker



        The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



        These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



        • Suggested enclosures:

        Sealed cabinet: Type: Acoustic suspension (alpha 3.0), Qtc 0.60; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9-1/8"H x 5-5/8"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 118 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 50 Hz.



        Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.17 ft³; Internal cabinet dimensions (golden ratio): 10-3/4"H x 6-5/8"W x 4-1/8"D; Port dimensions (with flared exit): 1" dia. x 4"L. Typical results: 3 dB down-point (f3): 66 Hz; Tuning frequency (fb): 62 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 48 Hz.



        Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



        Show more

        Specifications

        Article number
        DS135-8
        EAN
        0844632095399
        Woofer Series
        Dayton Audio Designer series
        Woofer Type
        Midwoofer
        Nominal Diameter
        3.50"
        Power Handling (RMS)
        50 watts
        Power Handling (max)
        100 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        86.6 dB
        Frequency Response
        50 - 7,000 Hz
        Voice Coil Diameter
        25.4 mm
        Magnet Weight
        21 oz.
        DC Resistance (Re)
        5.9 ohms
        Voice Coil Inductance (Le)
        0.84 mH @ 1 kHz
        Resonant Frequency (Fs)
        52.5 Hz
        Mechanical Q (Qms)
        2.02
        Electromagnetic Q (Qes)
        0.48
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        9.7g
        Mechanical Compliance of Suspension (Cms)
        0.95 mm/N
        Surface Area of Cone (Sd)
        75.4 cm²
        Volume of Displacement (Vd)
        36.6 cm³
        BL Product (BL)
        6.23 Tm
        Compliance Equivalent Volume (Vas)
        7.27 liters
        Maximum Linear Excursion (Xmax)
        4.85 mm
        Cone / Diaphragm Material
        Coated Paper
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        135 mm
        Overall Depth
        68.6 mm
        Baffle Cutout Diameter
        111.5 mm
        # Mounting Holes
        4
        Sealed Volume
        0.07 ft.³
        Sealed F3
        113 Hz
        Vented Volume
        0.15 ft.³
        Vented F3
        66 Hz
