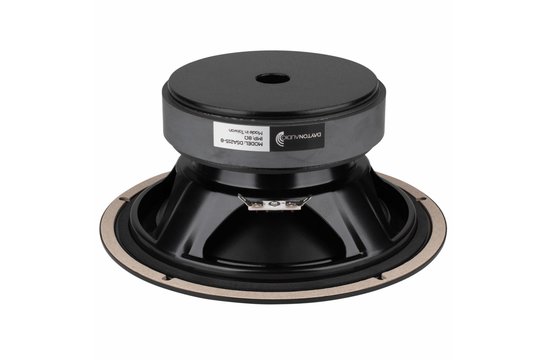

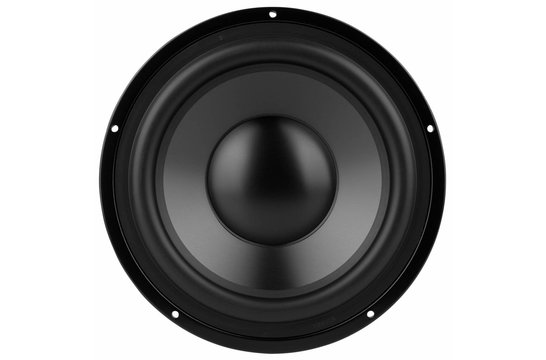

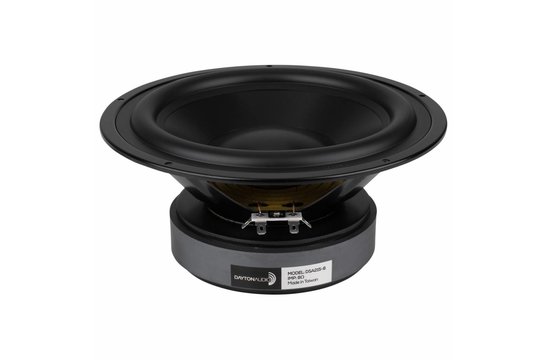

Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer

€94,45

7 In stock10+ expected on 27-05-2025

Add to cart

Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer

7 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

8" | 8 Ω

DSA215-8 8" Designer Series Aluminum Cone Woofer

€ 94,⁴⁵ 7 In stock10+ expected on 27-05-2025

We ship to United States of America
Ordered now, shipped today
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Dayton Audio Designer DSA215-8 Bass-midwoofer

Dayton Audio's Designer Series DSA215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.

Highlights

Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
Low distortion motor system with copper shorting ring
Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
Smooth frequency response and linear roll-off simplify filter design
Vented pole piece for minimized power compression and maximized reliability
Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Generous Xmax capability encourages use of moderate bass boost to tailor the response

Product details

Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Specifications

Article number: DSA215-8
EAN: 0848791002427
Woofer Series: Dayton Audio Designer series
Woofer Type: Midwoofer
Nominal Diameter: 8"
Power Handling (RMS): 80 watts
Power Handling (max): 160 watts
Impedance (Z): 8 ohms
Sensitivity (SPL at 1m / 2.83V): 89.2 dB
Frequency Response: 35 - 7,000 Hz
Voice Coil Diameter: 38.5 mm
Magnet Weight: 49 oz.
DC Resistance (Re): 5.9 ohms
Voice Coil Inductance (Le): 1 mH @ 1 kHz
Resonant Frequency (Fs): 35 Hz
Mechanical Q (Qms): 1.87
Electromagnetic Q (Qes): 0.40
Total Q (Qts): 0.33
Diaphragm Mass Inc. Airload (Mms): 34.6g
Mechanical Compliance of Suspension (Cms): 0.6 mm/N
Surface Area of Cone (Sd): 211.2 cm²
Volume of Displacement (Vd): 116.2 cm³
BL Product (BL): 10.6 Tm
Compliance Equivalent Volume (Vas): 37.4 liters
Maximum Linear Excursion (Xmax): 5.5 mm
Cone / Diaphragm Material: Aluminum Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 216 mm
Overall Depth: 95.5 mm
Baffle Cutout Diameter: 180 mm
# Mounting Holes: 5
Sealed Volume: 0.28 ft.³
Sealed F3: 89 Hz
Vented Volume: 0.54 ft.³
Vented F3: 55 Hz

Reviews

7 reviews

Review this product

5 of 5

By Jürgen on 26 December 2024

5 of 5

zum Shop: Netter Kontakt , gute faire Beratung und Super schnell geliefert. zum Artikel : Wie schon in der Beschreibung Stahlblechkorb , was aber nicht negativ bewertet werden sollte. Dafür ein super trocken und klarer Klang dank der Alu-Membran mit softer Gummisickenaufhänung. Ich trenne über eine 12DB- Weiche bei ca.2400 Hz und verwende ein 25L BR-Gehäuse mit mittlerer Dämmung . Das Chassis spielt bei mir am Messmikro bis auf 31Hz (-3DB)...

By Kai Haun on 29 March 2022

5 of 5

Der Lautsprecher macht einen sehr guten Eindruck, ist gut verarbeitet. Die Lieferszeit war sehr gut. Insgesamt kann ich das weiterempfehlen.

By Peter P. on 3 November 2020

5 of 5

Kan niet anders zeggen dat top woofer voor het geld! Vervanger Dayton DC200-8 i.v.m. schade. Op de baffle gemonteerd i.p.v. verzonken. De woofer doet het goed in een kleine behuizing. (10,8 liter voor qtc 0.7) Zit nu in een behuizing van in 21 liter waardoor deze net wat meer diepgang heeft. T.o.v. de dc200-8 wel een vooruitgang qua laag.

By Nick S. on 15 May 2020

5 of 5

Very nice quality and beautiful sound. Fast delivery

By Anton Mihhailov on 8 April 2020

5 of 5

Absolut sauber verarbeitet Sauberer Klang und annähernd gerader Frequenzgang

By Alexander k. on 17 March 2020

5 of 5

Spettacolo

By Nicolas E. on 7 February 2020
