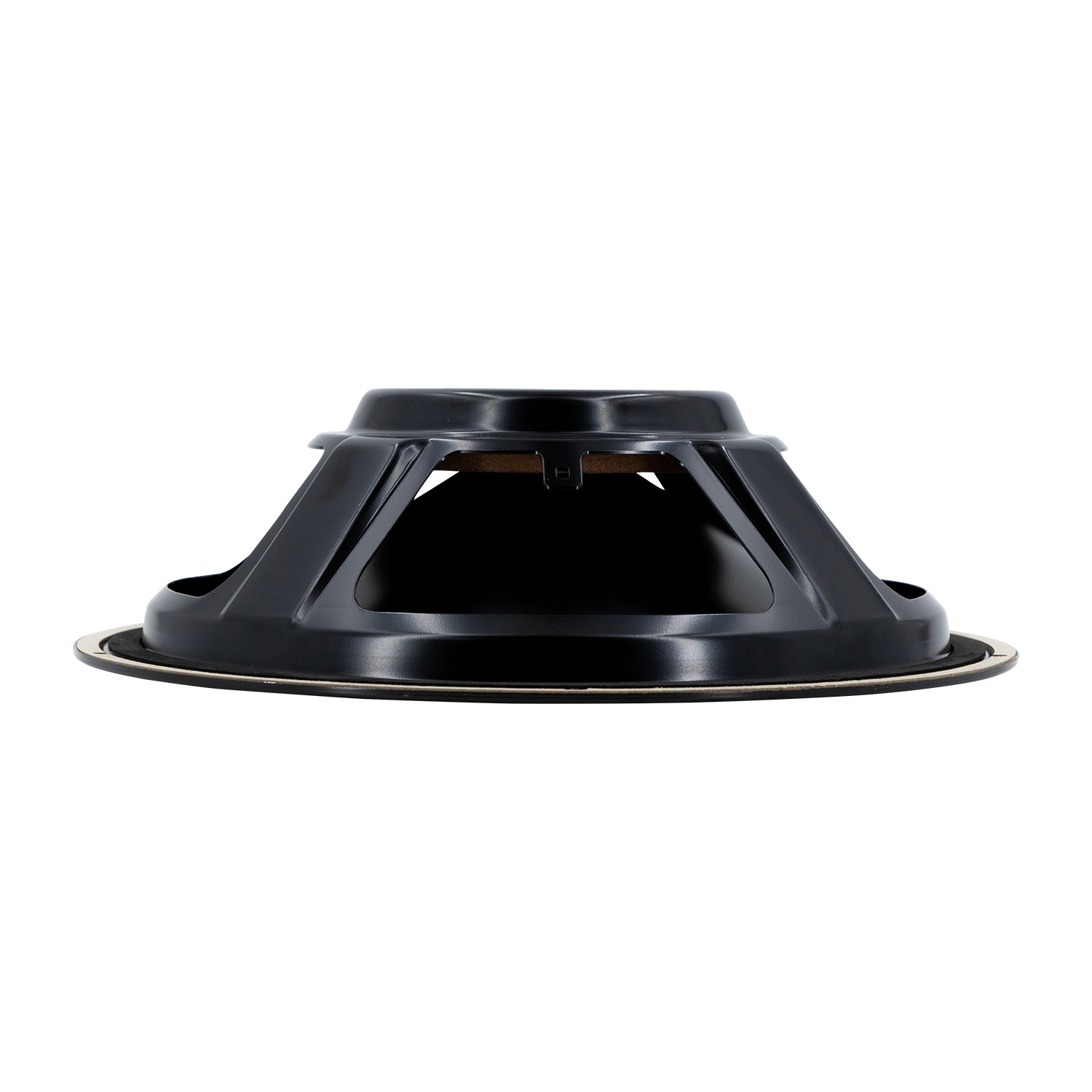

        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

        Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

        €77,45

        1 In stock3 expected on 27-12-2024

        Add to cart

        Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all Passive radiator
        passive | 12"
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        € 64,01€ 77,45 1 In stock3 expected on 27-12-2024
        • -5% Purchase 4 for only € 73,58 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator
        DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

        Product description Dayton Audio Designer DSA315-PR Passive Radiator

        The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.



        Highlights

        • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
        • Allows tuning small enclosures lower than using conventional ports
        • Rear mounted screw allows easy mass adjustment for custom tuning
        • Cosmetic frame edge looks great even when surface mounted



        Product details

        Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

        The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from large tower designs to compact subwoofer systems.



        Specifications: • Fs: 17.5 Hz • Vas: 6.74 cu. ft. • Qms: 6.23 • Cms: 0.58 mm/N • Rms: 2.5 kg/s • Mms: 142.6 g • Sd: 480 sq. cm. • Xmax: 13 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 10.71", Depth: 3.50".



        Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

        To calculate Vd: Sd x Xmax = Vd

        Show more

        Specifications

        Article number
        DSA315-PR
        EAN
        0848791005084
        Woofer Series
        Dayton Audio Designer series
        Woofer Type
        Passiver radiator
        Nominal Diameter
        12"
        Resonant Frequency (Fs)
        17.5 Hz
        Mechanical Q (Qms)
        6.23
        Diaphragm Mass Inc. Airload (Mms)
        142.6g
        Mechanical Compliance of Suspension (Cms)
        0.58 mm/N
        Surface Area of Cone (Sd)
        480 cm²
        Volume of Displacement (Vd)
        624 cm³
        Compliance Equivalent Volume (Vas)
        6.74 ft.³
        Maximum Linear Excursion (Xmax)
        13 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Basket / Frame Material
        Steel
        Overall Outside Diameter
        12.36"
        Overall Depth
        3.50"
        Baffle Cutout Diameter
        10.71"
        # Mounting Holes
        5
