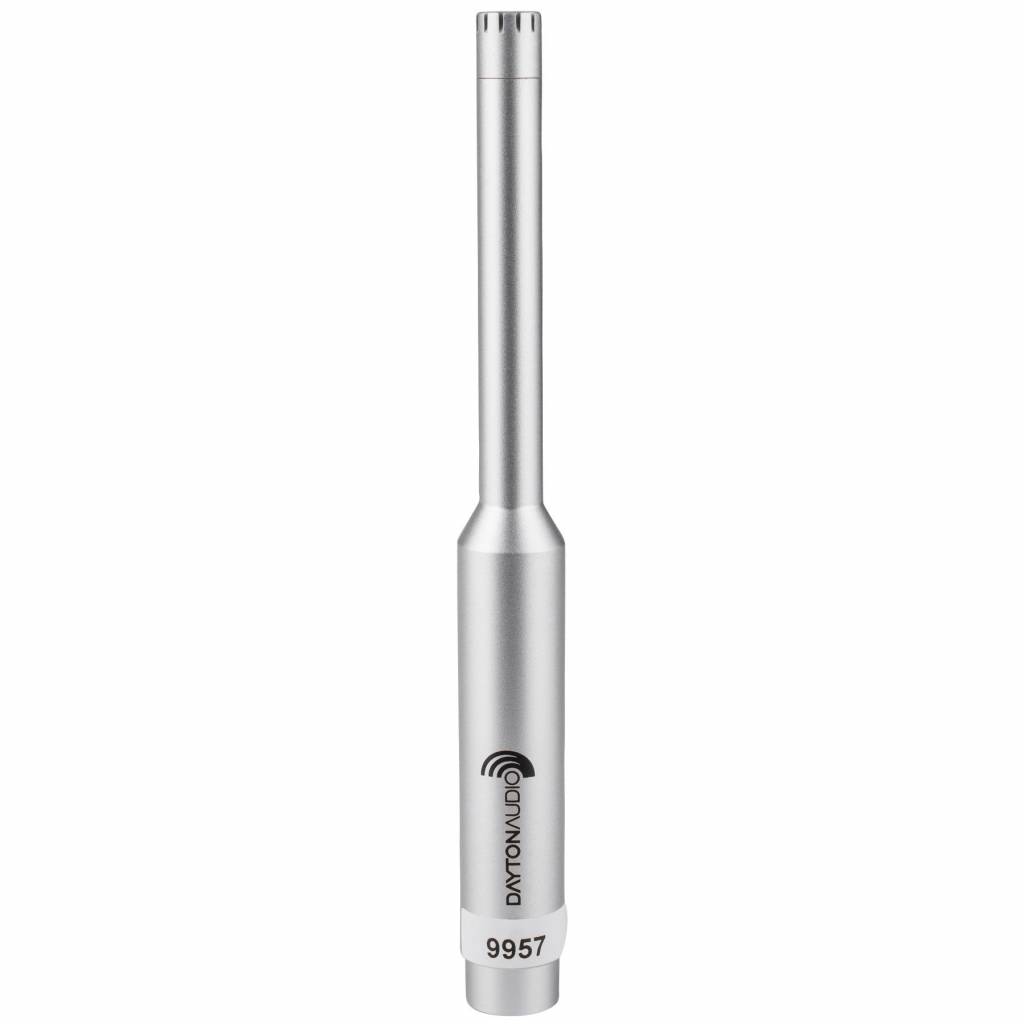

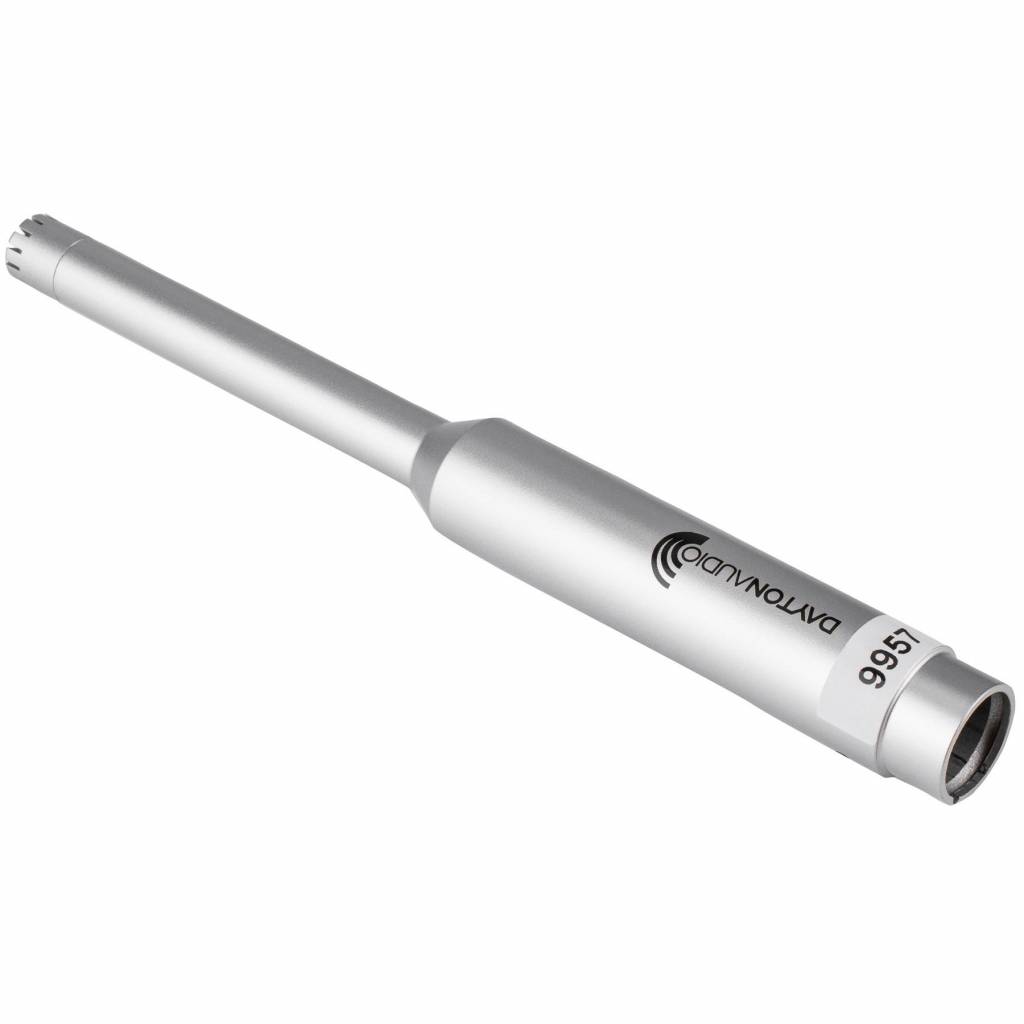

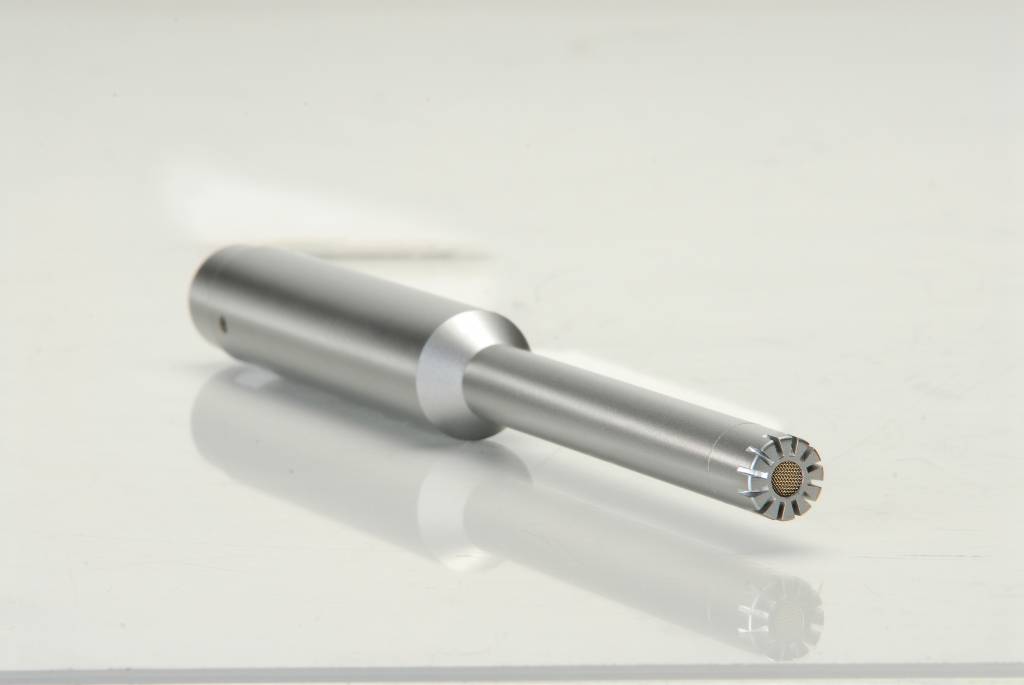

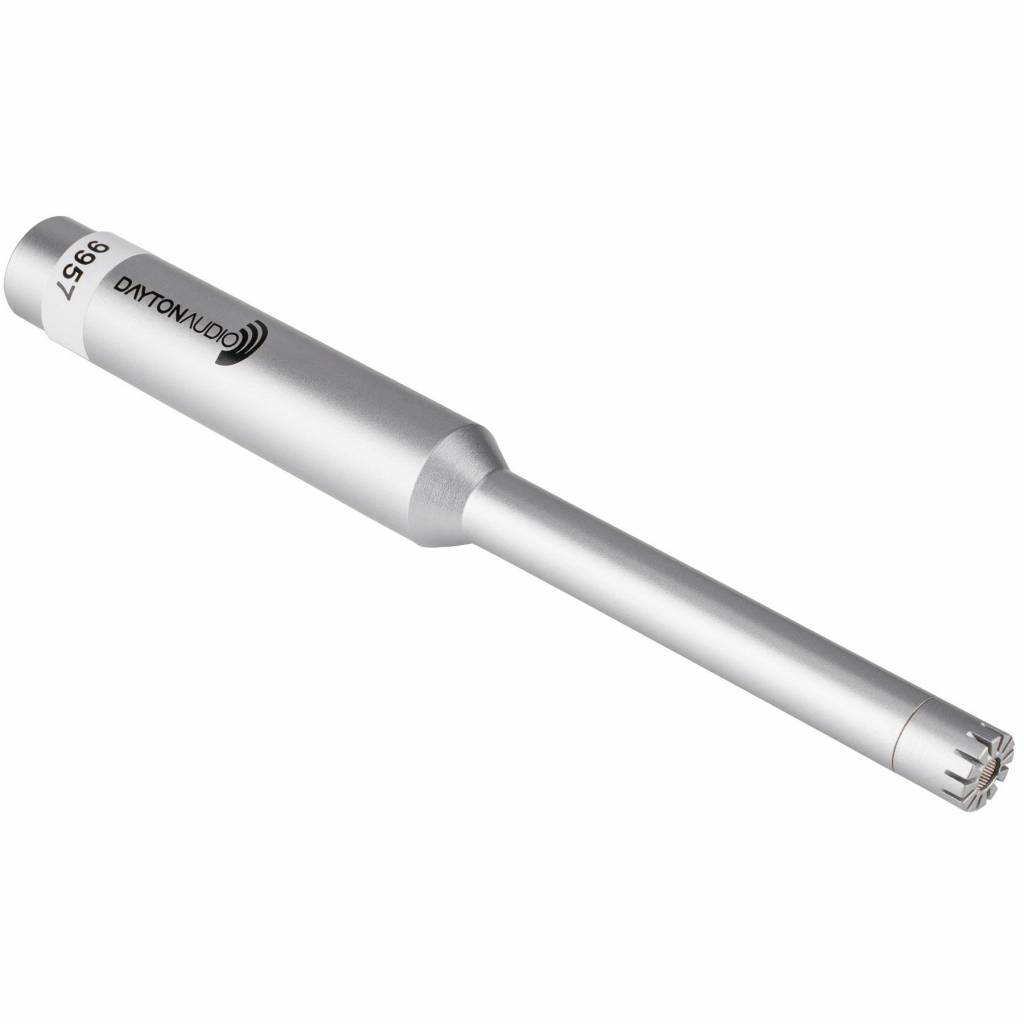

The Dayton Audio EMM-6 precision electret condenser microphone is designed for measurement and critical recording applications where extremely flat frequency response and a true omni-directional polar pattern is a must for accuracy.
Are you interested in measurement microphones? Find out everything you need to know in our comprehensive blog and find the perfect measurement microphone for your needs.
Highlights
Perfect for use with room acoustic analyzers and audio measurement systems
Low noise FET input reduces low-frequency distortion

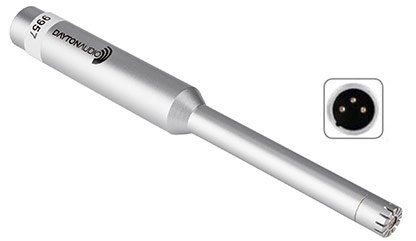

Gold-plated XLR output connector for accurate signal transfer
High-quality components and rugged construction
Includes its own unique calibration response graph
Includes stand mount, foam windscreen, and transport case
The Dayton Audio EMM-6 is a precision electret condenser microphone designed for measurement and critical recording applications. The extremely flat frequency response and true omni-directional polar pattern make it perfect for use with room acoustic analyzers and audio measurement systems. The EMM-6 microphone is individually hand calibrated using a laboratory standard Brüel & Kjær microphone in conjunction with a DAAS computer measuring system. Each microphone includes stand mount, foam windscreen, transport case, and its own unique printed and downloadable calibration response graph and .txt data file (see below).
FREE! Download your unique calibration .txt file.
A unique serialized calibration .txt file is available for the EMM-6. Once you receive your microphone, visit daytonaudio.com where you will be prompted to enter the serial number found on the base of your EMM-6. After entering the serial number, your unique calibration .txt file will be available for you to download.
Specifications: • Capsule type: 6 mm electret condenser • Polar pattern: omni-directional • Frequency response: 18 Hz - 20 kHz • Impedance: 200 ohms between pins 2 and 3 • Sensitivity at 1 kHz into 1K ohm: 10mV/Pa (-40 dBV, re. 0 dB = 1V/Pa) • Max SPL for 1% THD @ 1 kHz: 127 dB • S/N ratio: 70 dB A-weighted • Connector: gold plated XLR • Phantom power: +15V to +48V, 4 mA • Weight: 144 grams.
Show more
Show less
Specifications
Article number
EMM-6
EAN
0844632077456
Measurement Domain
Acoustic
Connector
Gold plated XLR
Calibration file
Unique on-axis for: Frequency, Amplitude and Sensitivity drift
Super schnell, top verpackt, top Preise
Kauf da sicher wieder
By Peter on 4 October 2024
5 of 5
Ware OK .Danke!
By Alexander on 4 October 2024
5 of 5
-
By Roman on 1 April 2024
5 of 5
-
By Nikolay on 20 March 2024
5 of 5
A perfect service, good products!!
By Lucio on 10 December 2023
5 of 5
Great service !!
By J on 7 December 2023
5 of 5
-
By Deniz on 18 October 2023
5 of 5
-
By Vratislav on 12 July 2023
5 of 5
Awesome measurement mic
By adam on 1 June 2023
5 of 5
Using it for a mic array with six of its brothers… excellent value for money and decent matching
By adam on 24 May 2023
5 of 5
-
By Arne on 29 January 2023
5 of 5
Super
+
Ok
...
Super
+Ok
Show more
Show less
By Martin on 21 March 2022
5 of 5
Sehr gutes Preis-Leistungsverhältnis. Mit dem Messprotokoll zum Download auf der Herstellerseite ideal für REW und Vermessung der Raumakustik.
Top
By Soenke P. on 30 January 2021
5 of 5
Is het hulpstuk bij uitstek voor het maken van je eigen speakersysteem.
By Lizet V. on 9 December 2020
5 of 5
Excellent product. I am very satisfied with it.
By Jozsef P. on 16 September 2020
5 of 5
No description was given
By Robert S. on 21 April 2020
2 of 5
It's a good quality microphone, fairly linear up to over 20khz and with some roll off under 100 hz, BUT, the calibration is useless, it's plain wrong, full of wiggles and artefacts and not compensating the bass rolloff nearly enough. I can use it as is for my application, but if you need the calibration look elsewhere. (BTW a google search will reveal many other users complaining about the calibration, so this is not an issue limited to my unit )
By Giovanni P. on 22 October 2019
5 of 5
No description was given
By László P. on 16 July 2019
5 of 5
Levering werd op tijd geleverd.
Hoog kwalitatief materiaal.
Goed en veilig ingepakt.
By mauro c. on 23 April 2019
4 of 5
Good for the price !! The first EMM 6 I bought not work ok, and soundimports change it for other and the second works perfectly.
By VICENÇ N. on 2 February 2019
5 of 5
No description was given
By Artur A. on 10 December 2018
5 of 5
Excellent !!!!
By Vili C. on 3 October 2018
4 of 5
In my opinion the Dayton Audio EMM-6 Electret Measurement Microphone is a very honest product, gives everything offered, construction, operation and support.
In short, I give it 4 stars.
