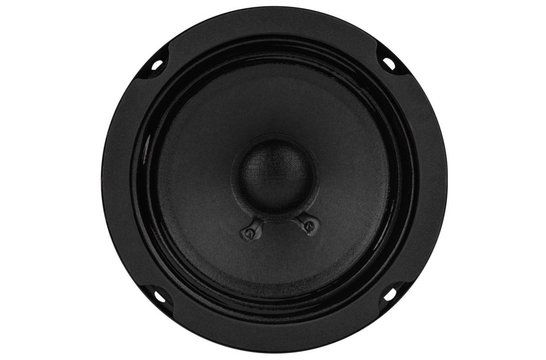

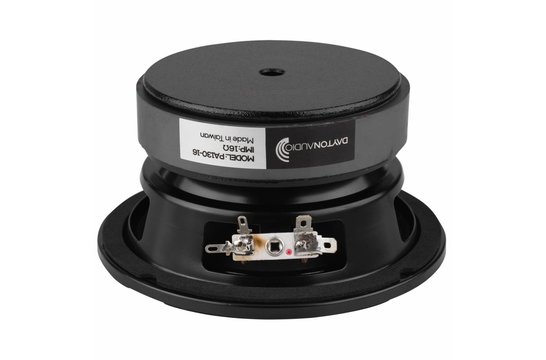

- Article number
- PA130-16
- EAN
- 0848791002366
- Woofer Series
- Dayton Audio PA series
- Woofer Type
- Full-Range
- Nominal Diameter
- 5"
- Power Handling (RMS)
- 50 watts
- Power Handling (max)
- 100 watts
- Impedance (Z)
- 16 ohms
- Sensitivity (SPL at 1m / 2.83V)
- 84.8 dB
- Frequency Response
- 80 - 15,000 Hz
- Voice Coil Diameter
- 1"
- Magnet Weight
- 20 oz.
- DC Resistance (Re)
- 14.1 ohms
- Voice Coil Inductance (Le)
- 0.57 mH @ 1 kHz
- Resonant Frequency (Fs)
- 78.7 Hz
- Mechanical Q (Qms)
- 4.37
- Electromagnetic Q (Qes)
- 0.71
- Total Q (Qts)
- 0.61
- Diaphragm Mass Inc. Airload (Mms)
- 6.8g
- Mechanical Compliance of Suspension (Cms)
- 0.61 mm/N
- Surface Area of Cone (Sd)
- 73.9 cm²
- BL Product (BL)
- 8.14 Tm
- Compliance Equivalent Volume (Vas)
- 0.18 ft.³
- Maximum Linear Excursion (Xmax)
- 2 mm
- Cone / Diaphragm Material
- Paper Cone
- Surround Material
- Cloth
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 5.2"
- Overall Depth
- 2.66"
- Baffle Cutout Diameter
- 4.41"
- # Mounting Holes
- 4
- Sealed Volume
- 0.17 ft.³
- Sealed F3
- 110 Hz
- Vented Volume
- 0.4 ft.³
- Vented F3
- 54 Hz
