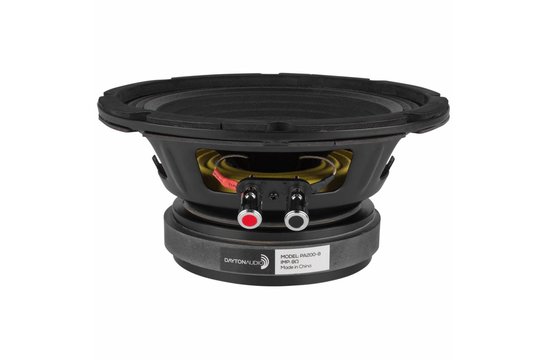

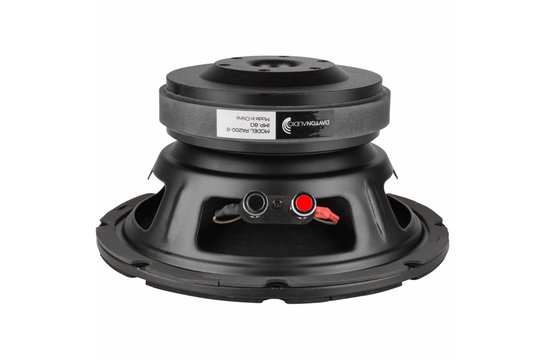

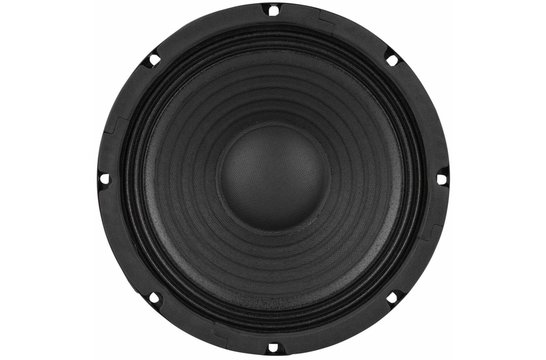

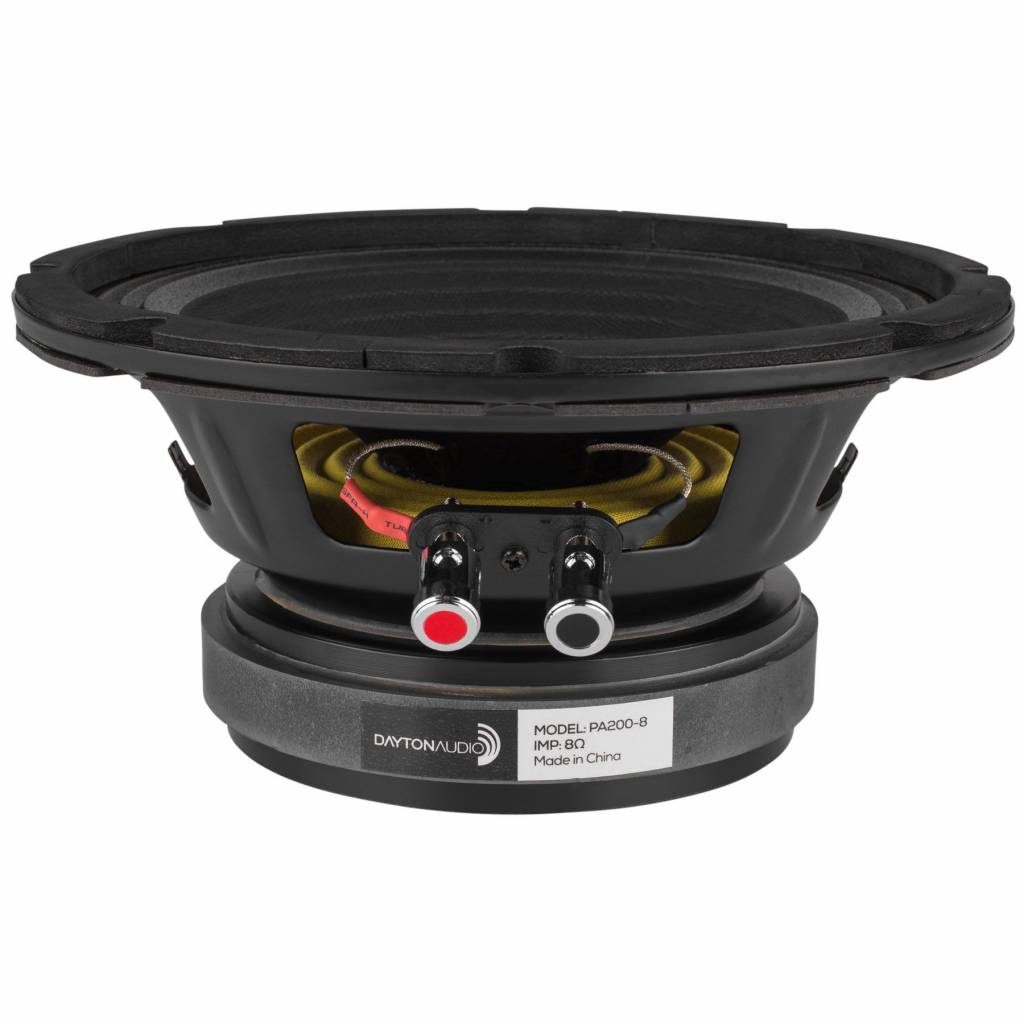

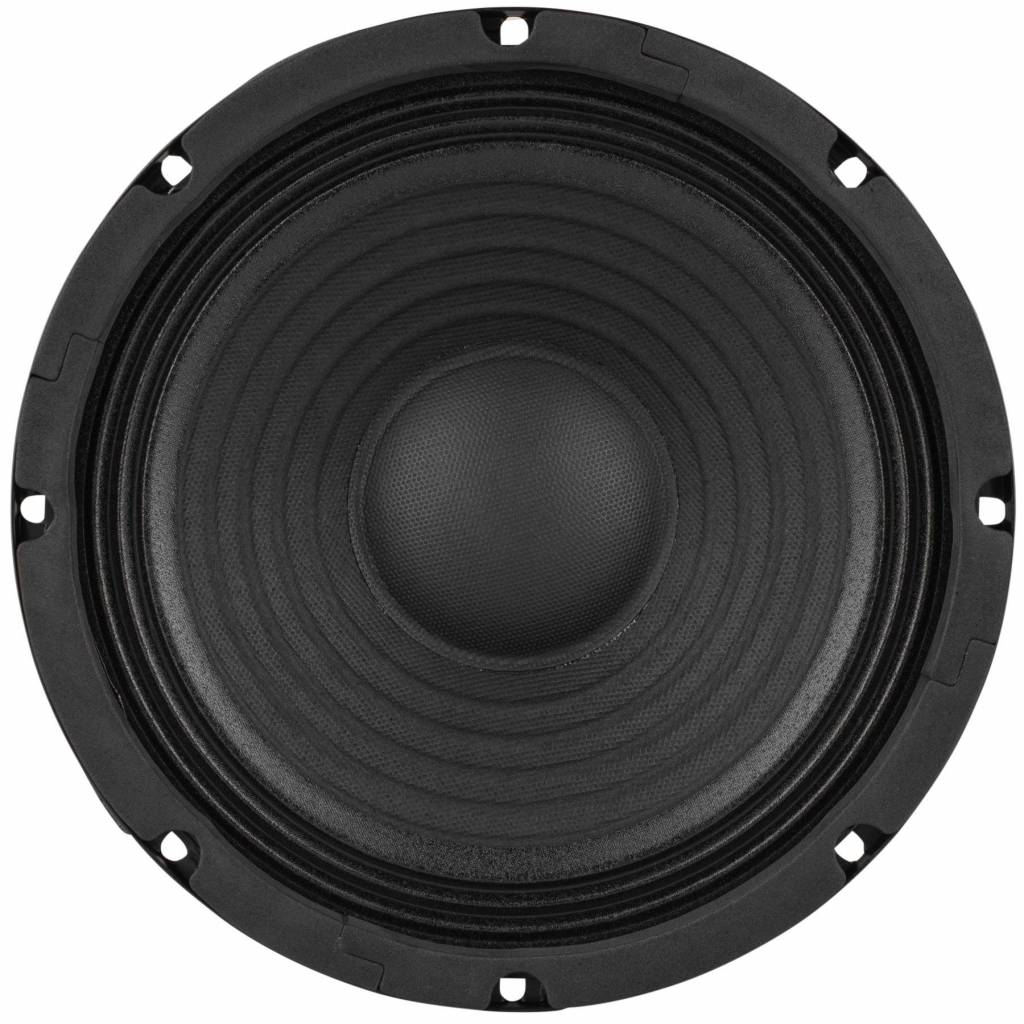

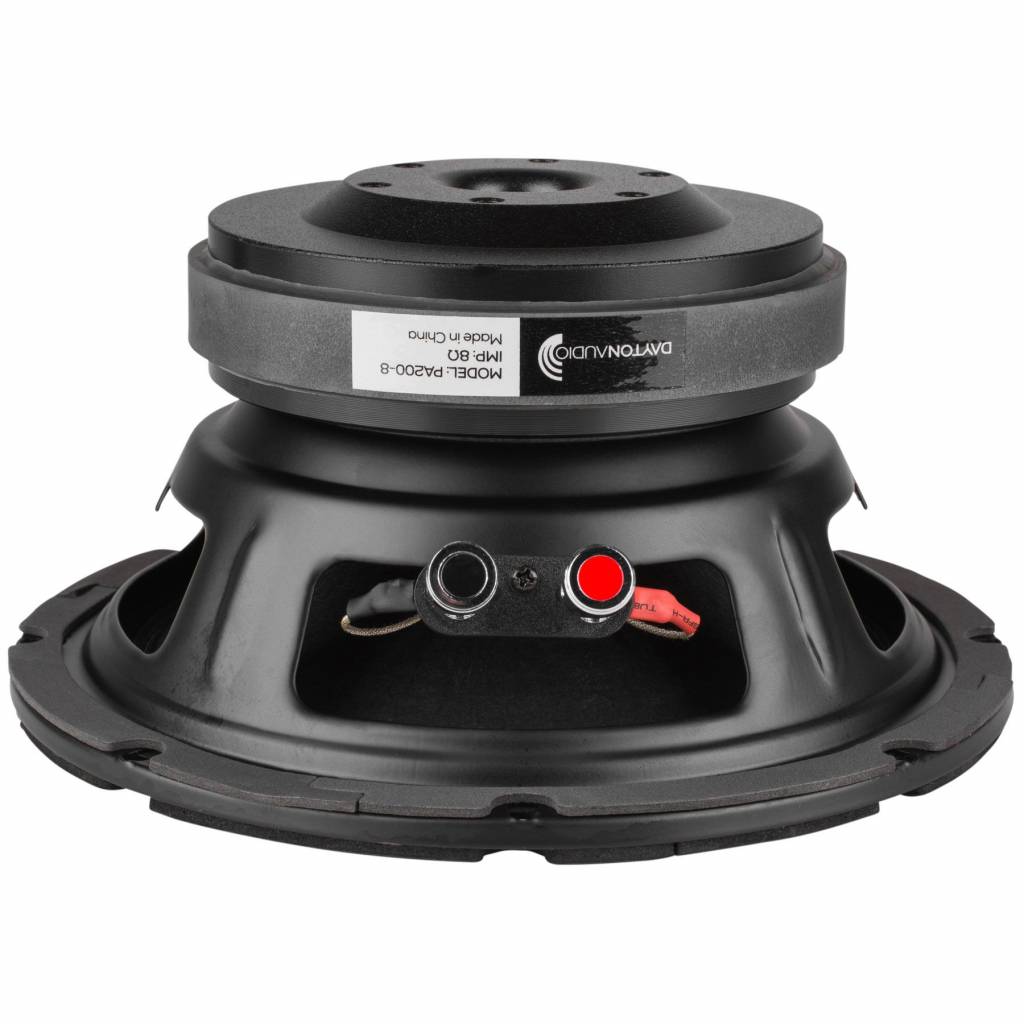

        PA200-8 8" Pro Woofer Speaker

        Dayton Audio PA200-8 8" Pro Woofer Speaker

        €78,45

        4 expected on 01-01-2025

        Add to cart

        Dayton Audio PA200-8 8" Pro Woofer Speaker

        5 reviews
        5 from 5
        5 reviews
        5 stars
        60%
        4 stars
        40%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all Bass-mid woofer
        8" | 8 Ω
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        € 64,83€ 78,45 Out of stock4 expected on 01-01-2025
        • -5% Purchase 4 for only € 74,53 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker
        PA200-8 8" Pro Woofer Speaker

        Product description Dayton Audio PA200-8 Bass-midwoofer

        Dayton Audio's PA200-8 PA Series 8" professional woofer is a great upgrade for musical instrument or sound reinforcement cabinets, and also excels in custom-built speaker systems.



        Highlights

        • Strong, low-mass carbon fiber impregnated paper cone
        • Low distortion motor system with copper cap
        • Vented pole piece and voice coil gap improve thermal management
        • Black motor parts and black polyimide voice coil former dissipate heat
        • Bumped back plate for unrestricted excursion



        Product details

        Dayton Audio PA200-8 8" Pro Woofer Speaker



        The PA200-8 8" professional audio woofer, from Dayton Audio, features high power handling by using a vented pole piece and voice coil gap. Black motor parts (including a black polyimide voice coil) help dissipate heat away from the voice coil and help to minimize power compression.



        Extended, smooth frequency response and low distortion are achieved through the use of a powerful 50 ounce ceramic ferrite magnet, combined with a copper cap on the pole piece to reduce stray eddy currents and minimize voice coil inductance.



        A strong, low-mass, carbon fiber-impregnated paper cone, together with an I-beam rolled-edge 1.2 mm steel frame provides the rugged durability needed to handle the rigors of touring and for stage use, while still offering the sensitivity and punchy bass that you need.



        Dayton Audio's PA Series woofer packs all of these premium features into a value-priced 8" driver that is great for use as an upgrade to sound reinforcement or musical instrument speakers. The PA200-8 also excels in custom-built speakers.



        Show more

        Specifications

        Article number
        PA200-8
        EAN
        0848791000546
        Woofer Series
        Dayton Audio PA series
        Woofer Type
        Midwoofer
        Nominal Diameter
        8"
        Power Handling (RMS)
        250 watts
        Power Handling (max)
        500 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        92.4 dB
        Frequency Response
        70 - 9,000 Hz
        Voice Coil Diameter
        50 mm
        DC Resistance (Re)
        6.2 ohms
        Voice Coil Inductance (Le)
        1.09 mH
        Resonant Frequency (Fs)
        55.2 Hz
        Mechanical Q (Qms)
        6.17
        Electromagnetic Q (Qes)
        0.51
        Total Q (Qts)
        0.48
        Diaphragm Mass Inc. Airload (Mms)
        20.5g
        Mechanical Compliance of Suspension (Cms)
        0.4 mm/N
        Surface Area of Cone (Sd)
        210.4 cm²
        Volume of Displacement (Vd)
        0.631 cm³
        BL Product (BL)
        9.28 Tm
        Compliance Equivalent Volume (Vas)
        26.6 liters
        Maximum Linear Excursion (Xmax)
        3 mm
        Cone / Diaphragm Material
        Paper / Kevlar Cone
        Surround Material
        Cloth
        Voice Coil Former
        Kapton® / Polyimide
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        210 mm
        Overall Depth
        108 mm
        Baffle Cutout Diameter
        182 mm
        Sealed Volume
        0.57 ft.³
        Sealed F3
        96 Hz
        Vented Volume
        1.1 ft.³
        Vented F3
        48 Hz
