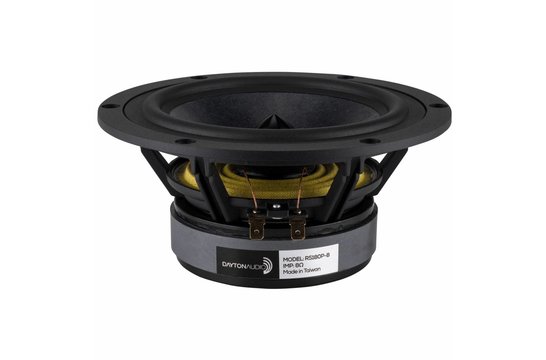

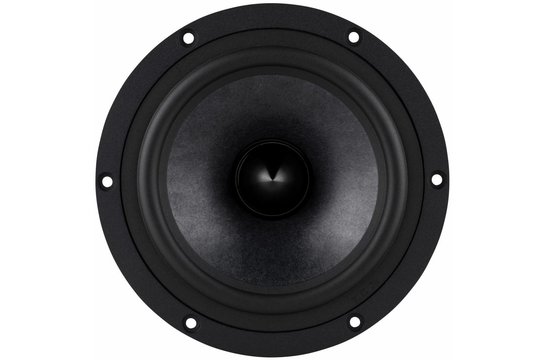

Dayton Audio RS180P-8 7" Reference Paper Woofer 8 Ohm

€84,95

10+ expected on 27-05-2025

Add to cart

Dayton Audio RS180P-8 7" Reference Paper Woofer 8 Ohm

8 reviews

Brand: Dayton Audio

Show all Bass-mid woofer

7" | 8 Ω

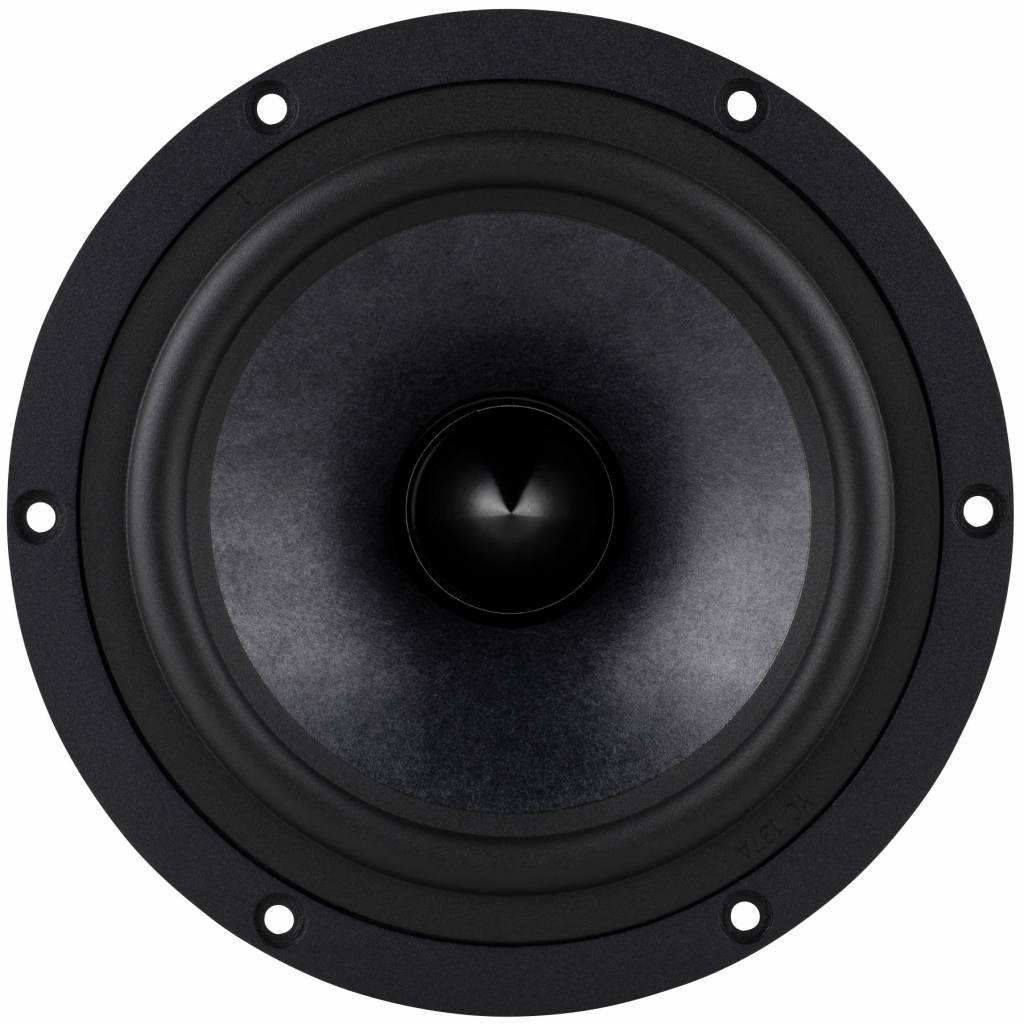

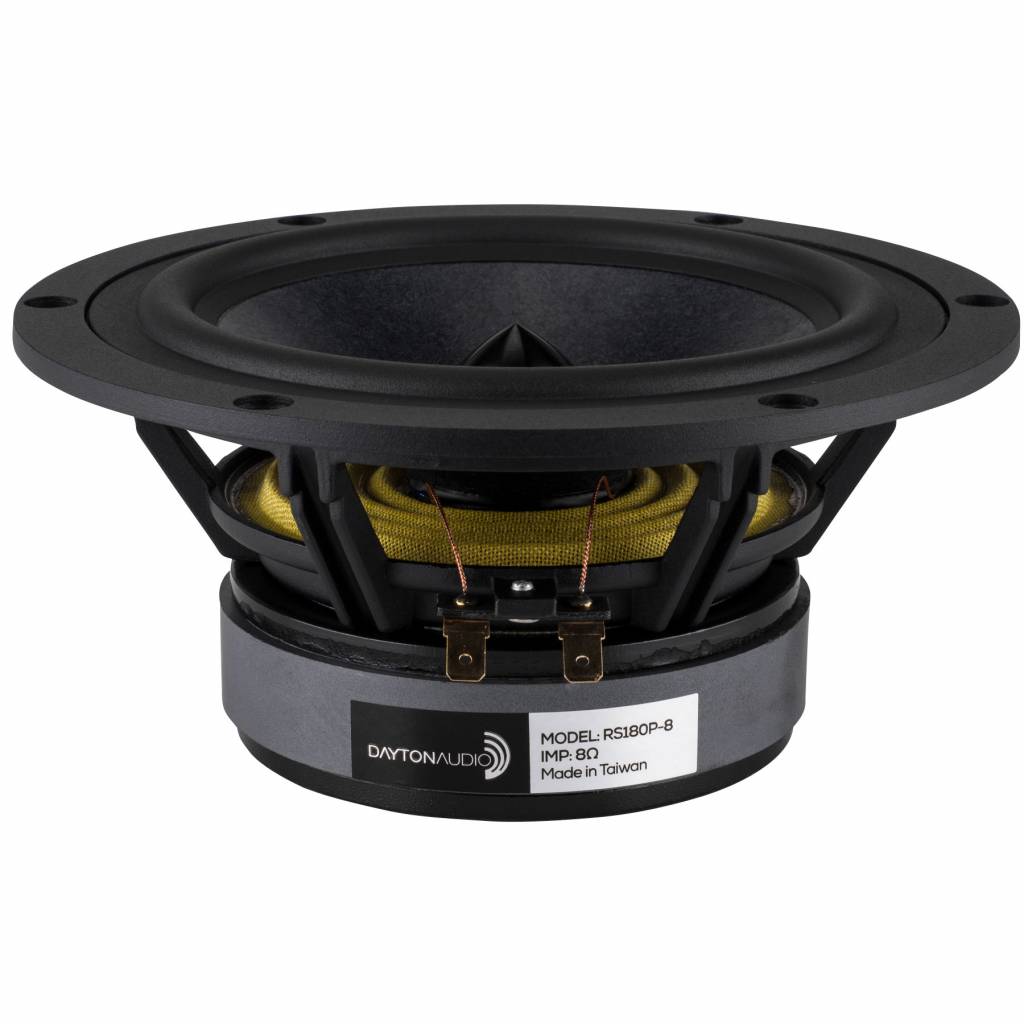

RS180P-8 7" Reference Paper Woofer 8 Ohm

€ 84,⁹⁵ Out of stock10+ expected on 27-05-2025

Backorder

We ship to United States of America
Back in stock soon
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Dayton Audio Reference RS180P-8 Bass-midwoofer

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.

Highlights

Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
Perfect as woofers, midwoofers, or dedicated midrange drivers
6 mm Xmax and 89 dB sensitivity

Product details

Dayton Audio RS180P-8 7" Reference Paper Woofer 8 Ohm

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Specifications

Article number: RS180P-8
EAN: 0848791001253
Woofer Series: Dayton Audio Reference series
Woofer Type: Midwoofer
Nominal Diameter: 7"
Power Handling (RMS): 60 watts
Power Handling (max): 90 watts
Impedance (Z): 8 ohms
Sensitivity (SPL at 1m / 2.83V): 89.8 dB
Frequency Response: 45 - 8,000 Hz
Voice Coil Diameter: 38.5 mm
DC Resistance (Re): 6.3 ohms
Voice Coil Inductance (Le): 0.84 mH @ 1 kHz
Resonant Frequency (Fs): 45.8 Hz
Mechanical Q (Qms): 1.49
Electromagnetic Q (Qes): 0.44
Total Q (Qts): 0.34
Diaphragm Mass Inc. Airload (Mms): 12.4g
Mechanical Compliance of Suspension (Cms): 0.98 mm/N
Surface Area of Cone (Sd): 126.7 cm²
Volume of Displacement (Vd): 76.0 cm³
BL Product (BL): 7.16 Tm
Compliance Equivalent Volume (Vas): 22 liters
Maximum Linear Excursion (Xmax): 6 mm
Cone / Diaphragm Material: Paper / Kevlar Cone
Surround Material: Rubber
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 180.5 mm
Overall Depth: 81 mm
Baffle Cutout Diameter: 146 mm
# Mounting Holes: 6
Sealed Volume: 0.14 ft.³
Sealed F3: 120 Hz
Vented Volume: 0.28 ft.³
Vented F3: 74 Hz

Reviews

8 reviews

Review this product

4 of 5

Das Chassis ist exzellent verarbeitet. Gusskorb mit Dichtung. Hier gibt es nichts zu beanstanden. Nach etwas Einspielzeit haben sich die TSP nicht dramatisch verändert. Tieftonwiedergabe in Kombination mit einer Passivmembran ist sehr angenehm. Verzerrungen bis 1000Hz laufen gut. Zum Einsatzspektrum sei gesagt, dass hier auf Achse eine markante Resonanz liegt. Bei einer Trennung mit TP 1ter Ordnung bei 2mH ist diese noch deutlich ausgeprägt. ...

By Frank Skorupa on 7 May 2024

5 of 5

By Edmund on 29 January 2024

5 of 5

By Radoslav on 23 October 2023

5 of 5

its look like a gradient speaker ,,,,it is....thy dont get eniwhere.

By j.e.h.beaumont@online.nl on 20 May 2023

5 of 5

Bought this Mid as a Replacement. The Paper Cone Has a very smooth Sound. The Enclosure is Tuned to about 40 hz. Very detailed and punshy Bass and Exelent Vocals. Really Good Overall Value. Delivery was Quick and without and Problems as usual. will definitely Order again.

By FND on 20 September 2020

5 of 5

By FND on 20 September 2020

5 of 5

Mooie warme sound, al een tijdje naar op zoek geweest. In gebruik als vervanging voor een, moeilijk en duur te verkrijgen woofer voor de Tannoy Reveal zeer tevreden

By Fred v. on 15 May 2020

4 of 5

It looks great. But there is a problem with a raise ind treble from 5000 to 8000 Hertz. I hope this raise can be eliminated. Maybe with copper rings on the magnet system ?.

By David Neil K. on 26 September 2018
