        RS52AN-8 Mid-range Dome

        Dayton Audio RS52AN-8 Mid-range Dome

        €62,95

        8 In stock10+ expected on 20-12-2024

        Dayton Audio RS52AN-8 Mid-range Dome

        8 reviews
        5 from 5
        8 reviews
        5 stars
        88%
        4 stars
        0%
        3 stars
        13%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 52,02€ 62,95 8 In stock10+ expected on 20-12-2024
        • -5% Purchase 4 for only € 59,80 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Dayton Audio RS52AN-8 Mid-range Dome

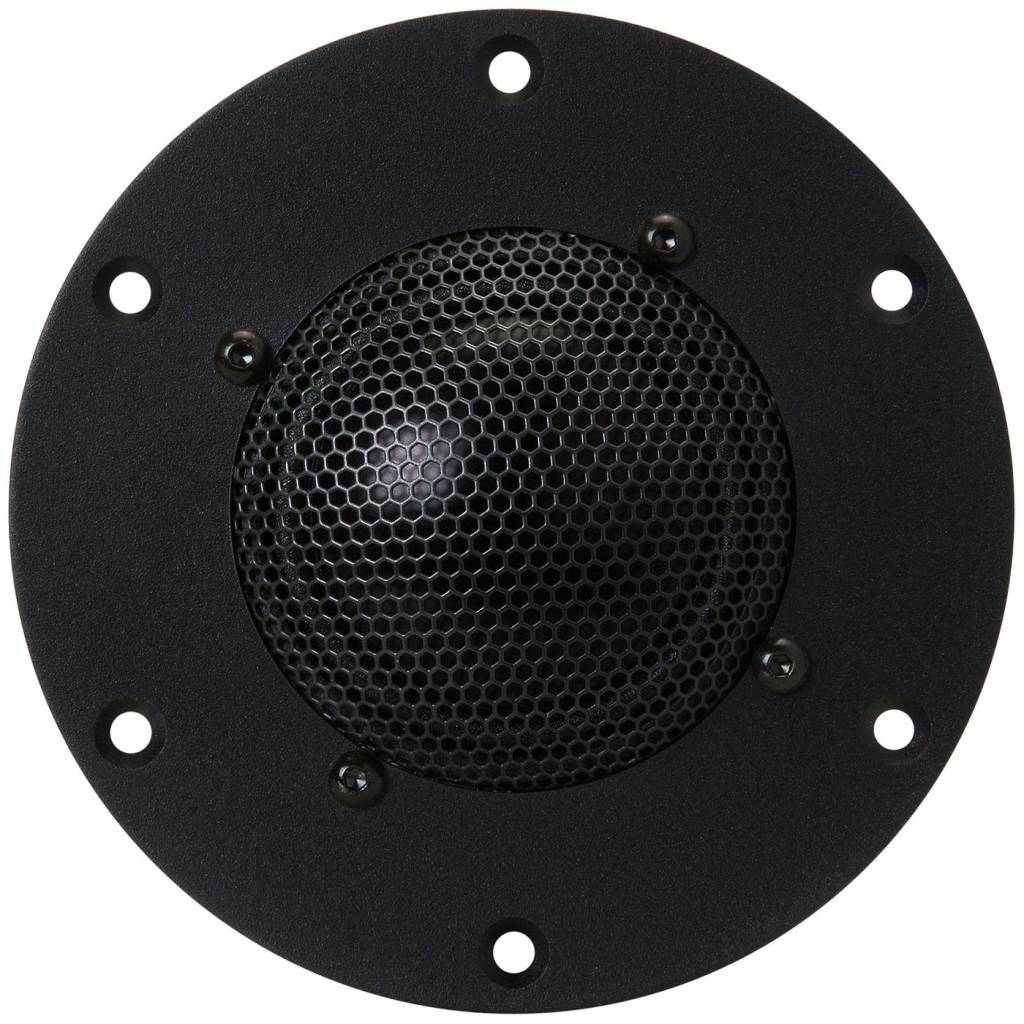

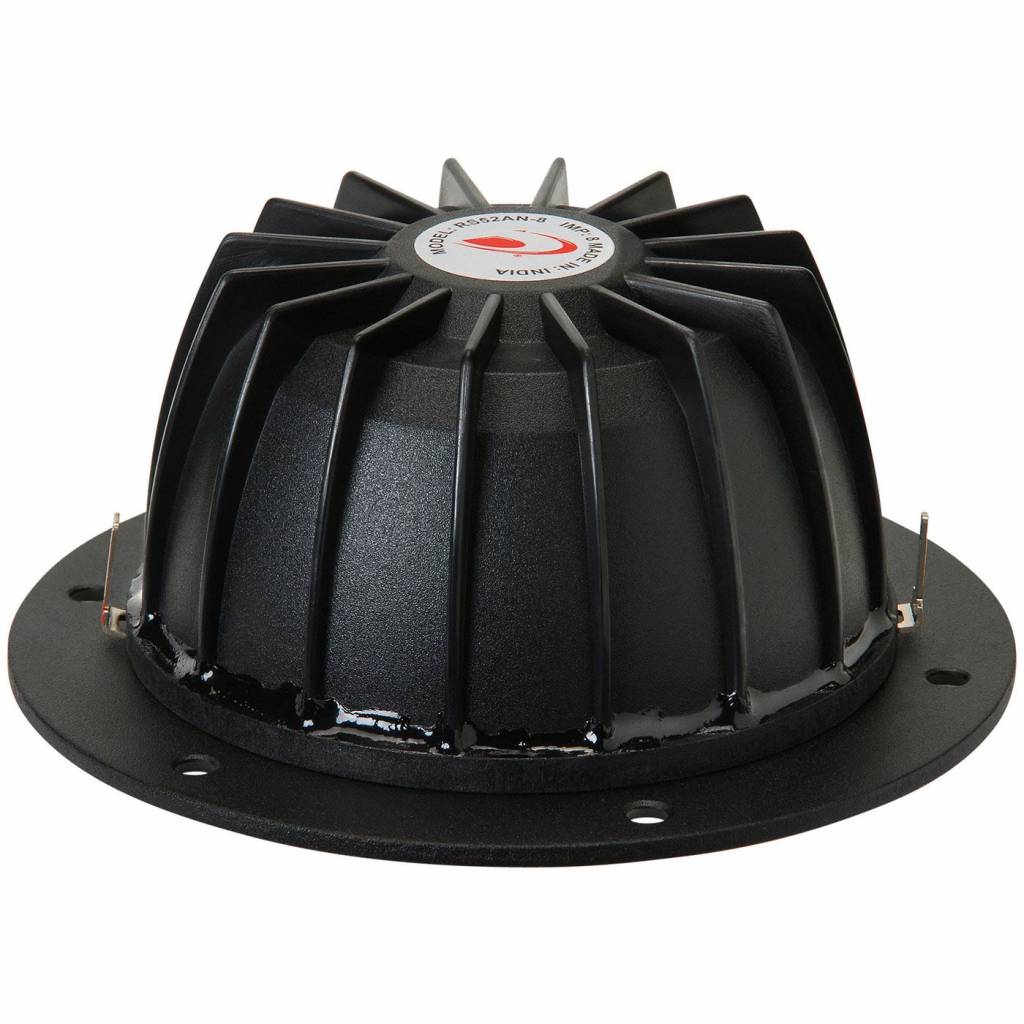

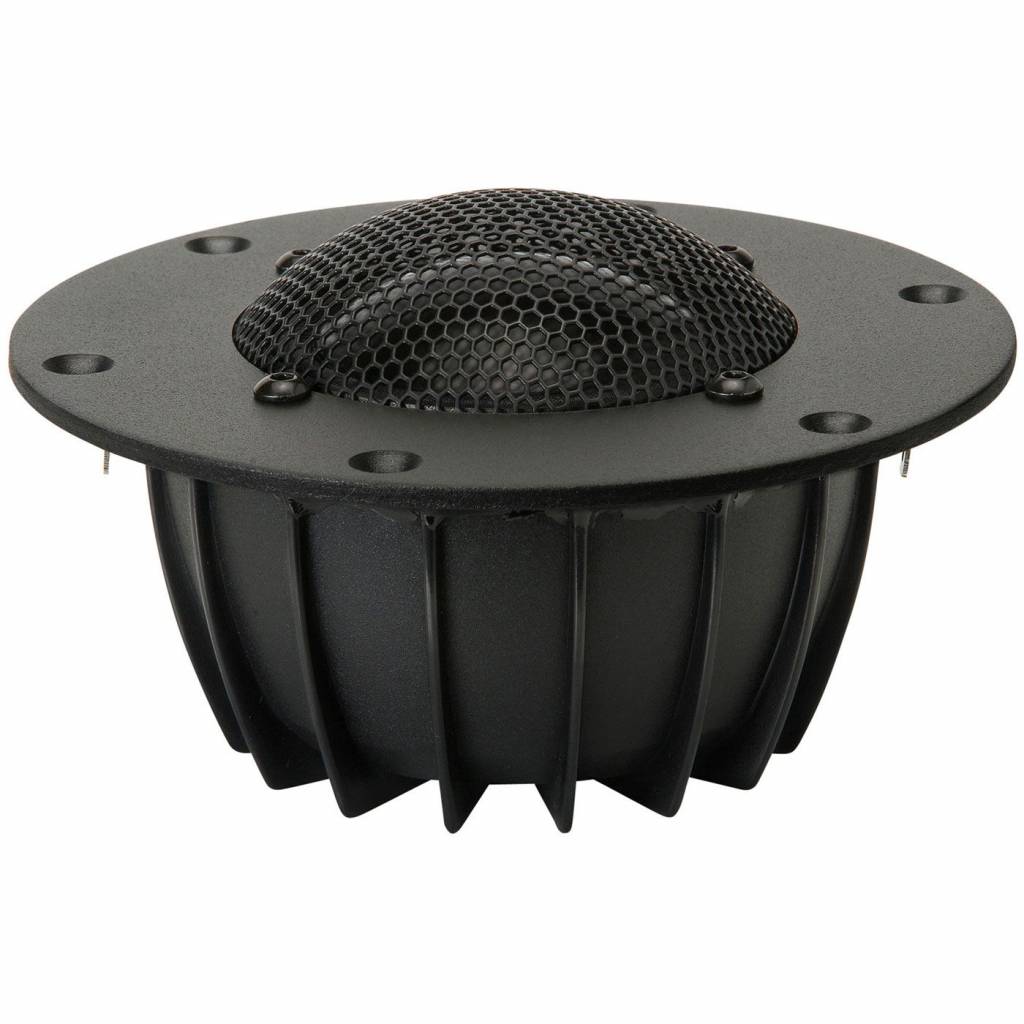

        The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.



        Highlights

        • Large damped rear chamber for low resonance point
        • 2" Aluminum diaphragm for good clarity and dispersion
        • Neodymium magnet minimizes stray magnetic field
        • Copper clad motor reduces distortion for transparent sound



        Product details

        Dayton Audio RS52AN-8 2" Dome Midrange



        The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.



        Show more

        Specifications

        Article number
        RS52AN-8
        EAN
        0844632067716
        Woofer Series
        Dayton Audio Reference series
        Woofer Type
        Mid-dome
        Nominal Diameter
        2"
        Power Handling (RMS)
        60 watts
        Power Handling (max)
        120 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        89.4 dB
        Frequency Response
        500 - 14,000 Hz
        Voice Coil Diameter
        52 mm
        DC Resistance (Re)
        6 ohms
        Voice Coil Inductance (Le)
        0.13 mH @ 1 kHz
        Resonant Frequency (Fs)
        341 Hz
        Mechanical Q (Qms)
        3.16
        Electromagnetic Q (Qes)
        1.18
        Total Q (Qts)
        0.86
        Diaphragm Mass Inc. Airload (Mms)
        1.7g
        Mechanical Compliance of Suspension (Cms)
        0.13 mm/N
        Surface Area of Cone (Sd)
        26.4 cm²
        Volume of Displacement (Vd)
        2.64 cm³
        BL Product (BL)
        4.26 Tm
        Compliance Equivalent Volume (Vas)
        0.13 liters
        Maximum Linear Excursion (Xmax)
        1 mm
        Cone / Diaphragm Material
        Metal Dome
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        130 mm
        Overall Depth
        57 mm
        Baffle Cutout Diameter
        100 mm
        # Mounting Holes
        6

        Show more

        5 of 5
        -
        By 宝玉 on 27 August 2024
        5 of 5
        A very efficient driver!!! Had to use a -6dB L-Pad to tame it. Also integrated a Zobel RC, to compensate for the impeadance curve and to tone down that 12kHz spike. Good calculators can be found on https://soundcertified.com/ Build quality and design seem good to me. The sound is exceptionally detailed and consistent. Dispersion seems well spread out too... which is an acheiment. I'm using a pair for upper mid and treble, in a concentric...

        Show more

        By David Butler on 12 August 2024
