        SPA250 Subwoofer Plate Amplifier

        Dayton Audio SPA250 Subwoofer Plate Amplifier

        €282,45

        10 In stock

        Dayton Audio SPA250 Subwoofer Plate Amplifier

        6 reviews
        5 from 5
        6 reviews
        5 stars
        83%
        4 stars
        17%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 233,43€ 282,45 10 In stock

        Buy now, pay later

        • We ship to
        • Same day shipping
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Dayton Audio SPA250 Sub Plate Amplifier

        Engineered to provide flexibility, ample power, and reliability, the Dayton Audio SPA250 delivers high fidelity subwoofer amplification and is tailored for home audio and home theater audio systems.



        Highlights

        • Switchable 6 dB @ 35 Hz bass boost
        • Mono Class AB output stage for solid, well defined output
        • Low-level and high-level inputs connect to any system
        • Manual, auto, or triggered on/off modes for compatibility with any automated system
        • Variable gain, crossover point and switchable phase controls optimize room integration

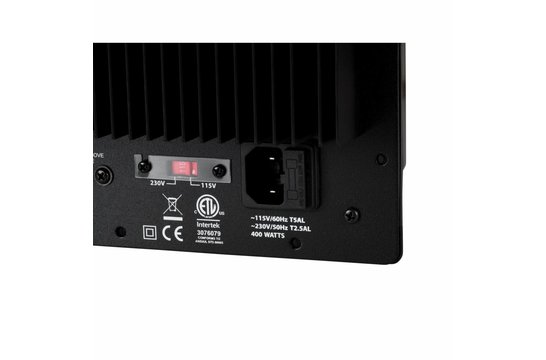

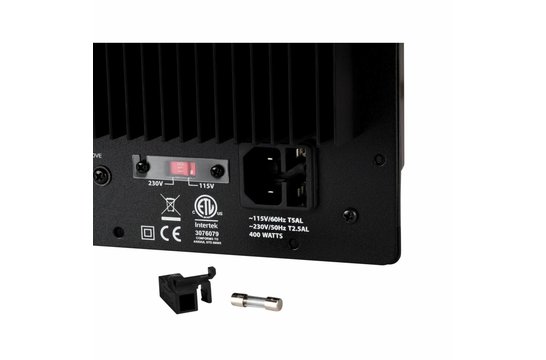

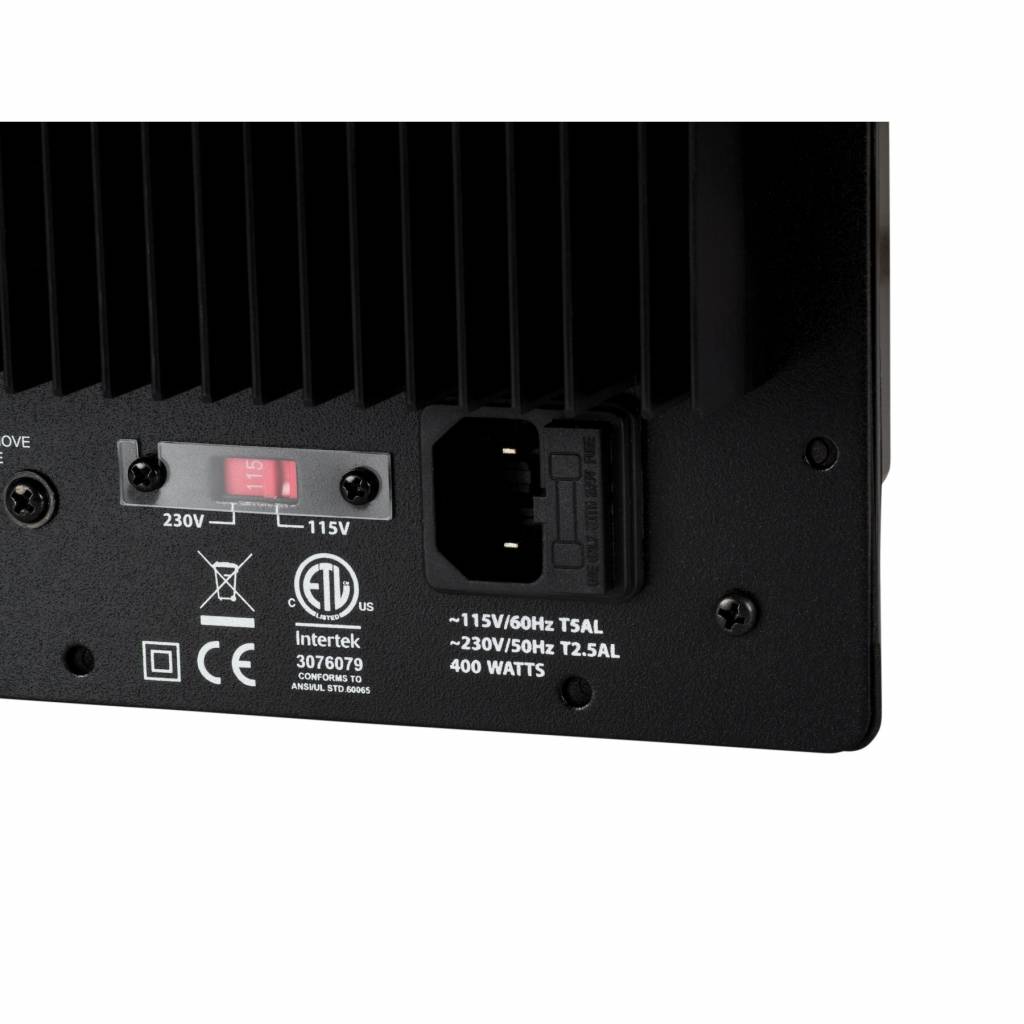

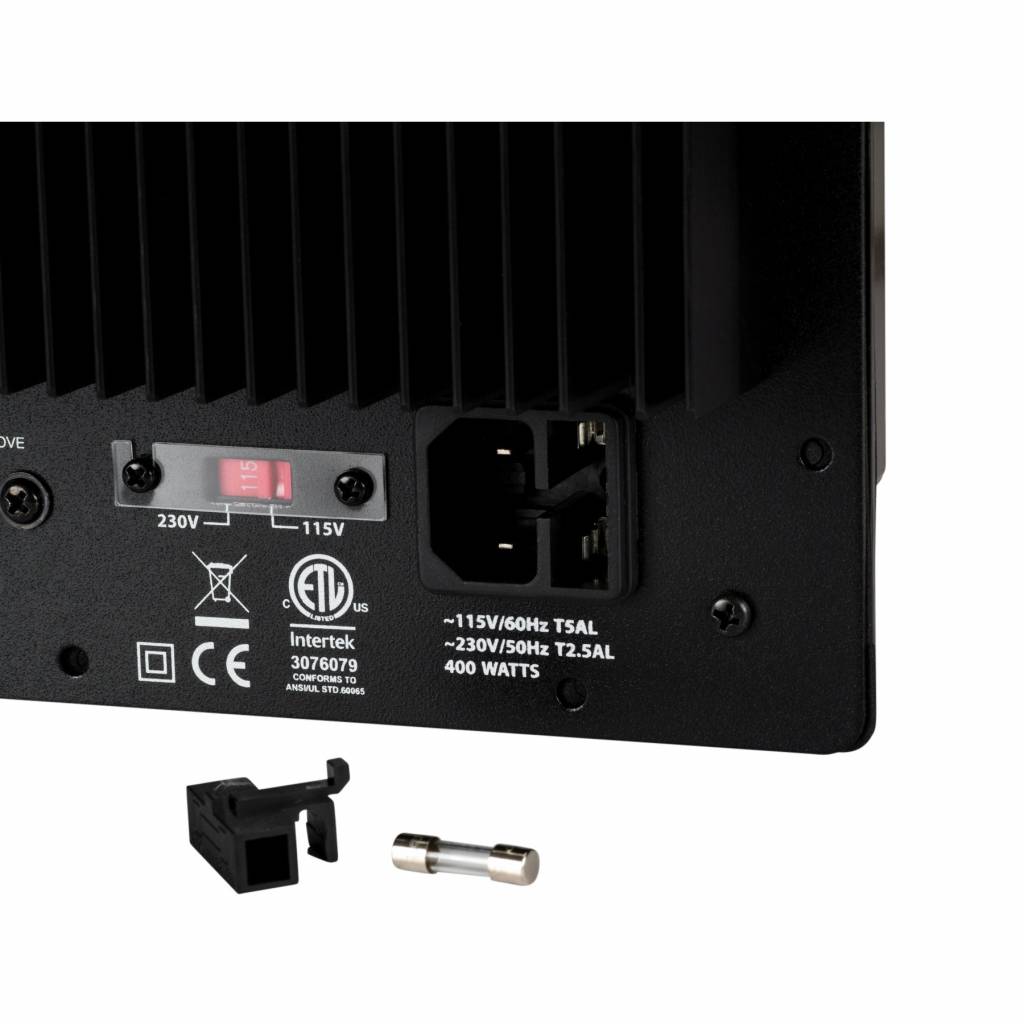

        • Switchable 120/240V input voltage
        • Energy efficient—draws less than 1 watt in stand-by mode



        Product details

        Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier



        Bass boost or flat…you choose and the SPA250 delivers!

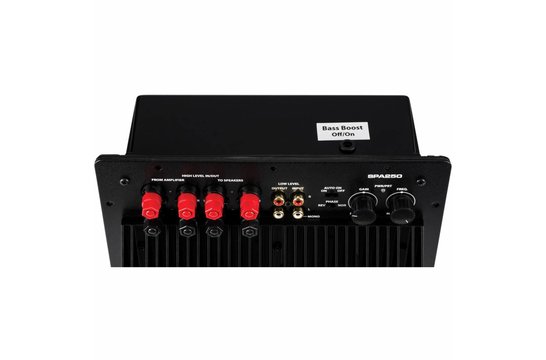

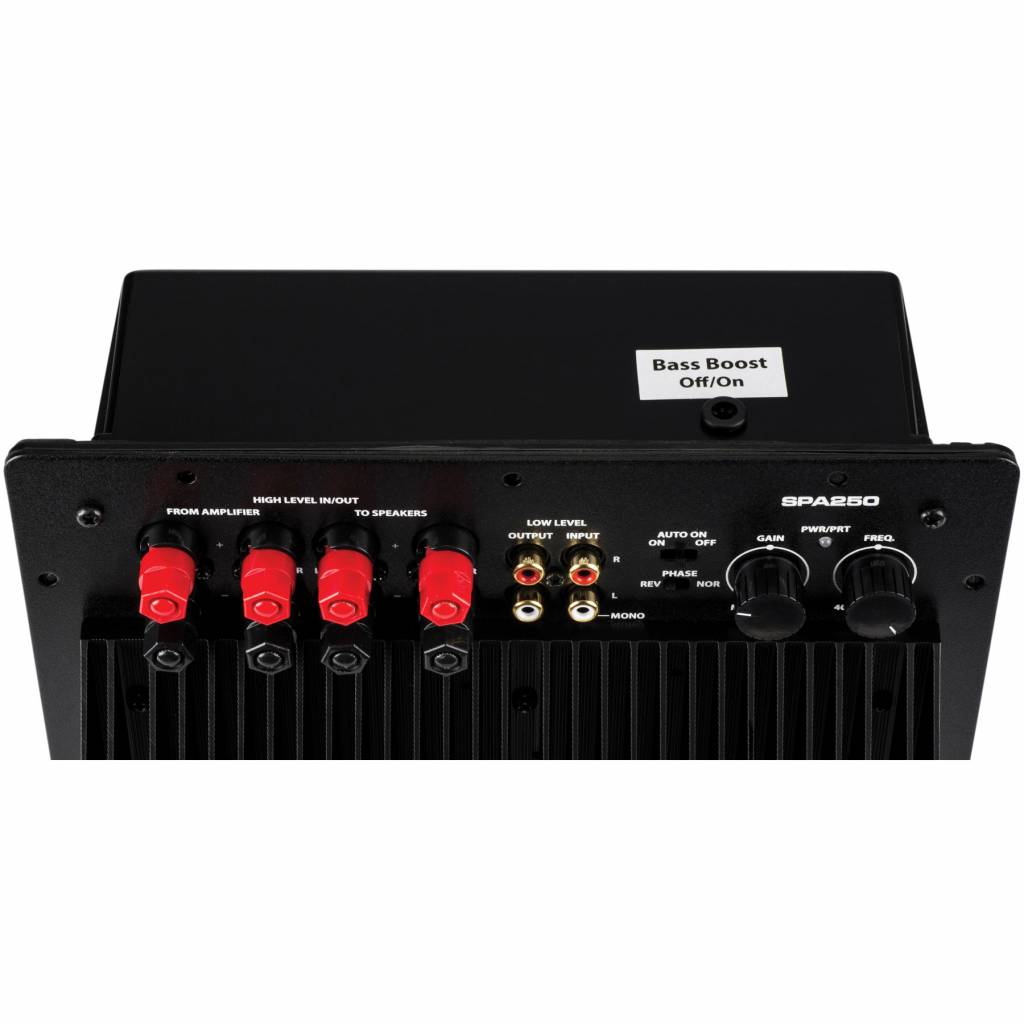

        The Dayton Audio SPA250 subwoofer amplifier produces 250 watts of clean power output, and combines with a host of flexible user options to make it an unbeatable choice. A user-configurable bass boost circuit creates a 6 dB peak at 35 Hz, which allows sealed subwoofer designs and certain ported enclosures to achieve their optimum bass extension and maximum "flat" output.



        Connects to almost any home audio system, and does it with ease

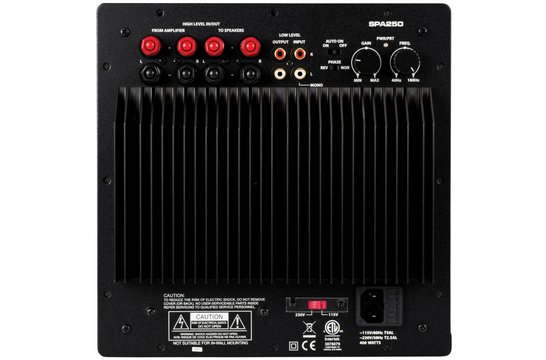

        The SPA250 features RCA line level and banana jack speaker level inputs and outputs, automatic power-on that is triggered by any audio input signal, and a phase reverse switch to match the subwoofer to your room and your other speakers. A single amp can accept a stereo input signal and combine it into mono, which is preferred for sub bass reproduction. A preamp or receiver's LFE output may be connected to the SPA250's Left (mono) input. The internal low pass crossover is fully adjustable between 40 and 180 Hz, and of course the amp has built-in protection against internal and external faults.



        We haven't run out of great features to talk about:

        • Variable low-pass filter at 24 dB/octave attenuation from 40 Hz ~ 180 Hz
        • Switchable phase 0° (NOR) or 180° (REV)
        • Variable gain MIN/MAX input voltage dependent
        • Speaker level high-pass outputs 6 dB/octave at approximately 180 Hz @ 4 ohms, 90 Hz @ 8 ohms (i.e. 220 uF electrolytic capacitor)
        • Line-level full bandwidth (10 Hz- 20 kHz) outputs/throughputs for adding or "daisy chaining" additional amplifiers
        • Subsonic filter 12 dB/octave high-pass filter centered at 20 Hz
        • Damping factor at rated power: 114 @ 100 Hz



        Show more

        Specifications

        Article number
        SPA250
        EAN
        0844632094897
        Rated power output

        1 x 252 watts at 4 ohms
        1 x 156 watts at 8 ohms

        Rated power output bridged
        -
        Minimum load
        4 ohms
        Signal-to-noise ratio (SNR)
        90 db
        Distortion
        -
        Distortion bridged
        -
        Amplifier classification
        Class AB
        Circuit topology
        -
        Efficiency
        -
        Frequency response
        -
        Input impedance
        10.4k ohms
        Input sensitivity
        -
        Auto turn-on sensitivity
        ≥10 mV
        DSP
        -
        DAC
        -
        Maximum sampling rate
        -
        Speaker output channels
        1 (+2 high level pass through channels)
        Analog in/out
        2/2
        S/PDIF in/out
        -/-
        AES/EBU in/out
        -/-
        Coaxial in/out
        -/-
        RCA in/out
        1/1
        XLR in/out
        -/-
        Jack in/out
        -/-
        USB connection
        -
        Network connection
        -
        Bluetooth
        -
        Subwoofer pre-out
        -
        Auto on/off
        Remote control
        -
        App control
        -
        Equalizer (EQ) adjustment
        -
        Equalizer (EQ) profiles
        -
        Phase control
        (0° or 180°)
        Crossover frequency adjustment
        Presets
        -
        Control software
        -
        Windows/Mac compatible
        -/-
        Power requirements
        115/230 VAC
        Power inlet connector
        IEC C18
        Standby power consumption
        0.29 watts (at 115 VAC)
        Current limit
        -
        Under/over voltage protection
        -
        Dimensions (H x W x D)
        249 x 249 x 127 mm
        Cutout dimensions
        216 x 216 mm
