        Product description Jantzen Audio 000-1653 | 5,6 mH | 2,65 Ω | 3% | 21 AWG

        Compact 5.6 mH air core coil with precise 3% tolerance for high-quality crossovers.



        Highlights

        • 5.6 mH inductance with low tolerance of +/-3%
        • 2.65 Ω resistance ensuring minimal signal loss
        • 21 AWG high-purity copper wire for superior conductivity
        • Modern self-supporting design, no plastic bobbins needed



        Product details

        Jantzen Audio 000-1653 | 5,6 mH | 2,65 Ω | 3% | 21 AWG | Air Core Coil

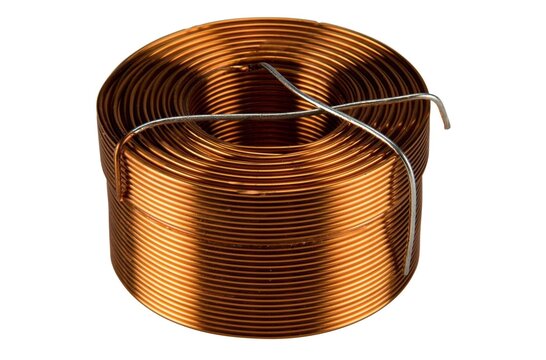

        The Jantzen Audio 000-1653 air core coil is an essential component for any audio enthusiast looking to build or upgrade their speaker crossovers. With a 5.6 mH inductance and an impressively low inductance tolerance of +/-3%, this coil is designed for precision audio applications. It boasts a resistance of 2.65 Ω, ensuring minimal signal loss and maintaining the integrity of the audio signal. The coil is made from 21 AWG high-purity, Grade 1B copper wire, which has been "baked" into the perfect shape to produce a distortion-free inductor, ideal for all audio applications. The modern self-supporting design eliminates the need for plastic bobbins, while the enameled copper wire is solderable with a self-bonding topcoat, complying with class 155 according to IEC 60317-35 and DIN EN 60317-35 standards. A polyurethane with aliphatic polyamide bond coat further enhances the coil's durability and performance. The Jantzen Audio 000-1653 air core coil is a testament to superior crossover component design, offering unmatched sound clarity and reliability for your audio system.

        Specifications

        Article number
        000-1653
        EAN
        9506686789457
        Coil type
        Air core coils
        Inductance
        5.6 mH
        DCR
        2.65 ohms
        Tolerance
        3%
        Wire diameter
        21 AWG
