        000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG | Air Core Coil

        Jantzen Audio 000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG | Air Core Coil

        €4,95

        Out of stock

        Add to cart

        Jantzen Audio 000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG | Air Core Coil
        € 4,95 Out of stock
        +-
        Add to cart
        • We ship to United States of America
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG | Air Core Coil

        Product description Jantzen Audio 000-1753 | 0,22 mH | 0,46 Ω | 3% | 21 AWG

        A compact 0.22 mH air core coil perfect for high-fidelity crossovers.



        Highlights

        • 0.22 mH inductance with low tolerance of +/-3%
        • 0.455 Ω resistance ensuring minimal signal loss
        • 21 AWG high-purity copper wire for superior conductivity
        • Self-supporting design, free from plastic bobbins



        Product details

        Jantzen Audio 000-1753 | 0,22 mH | 0,455 Ω | 3% | 21 AWG | Air Core Coil

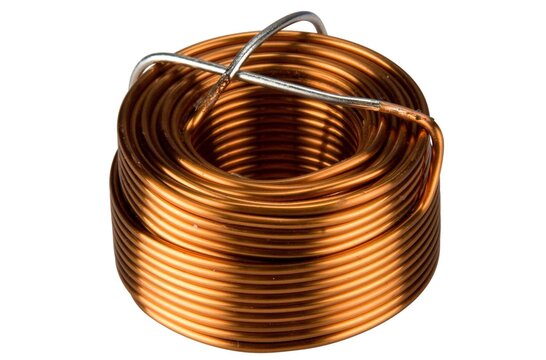

        The Jantzen Audio 000-1753 air core coil is a meticulously crafted crossover component designed to deliver distortion-free audio in high-end sound systems. With an inductance of 0.22 mH and a resistance of just 0.455 Ω, it's engineered to ensure minimal signal loss while maintaining a tight inductance tolerance of +/-3%. The 21 AWG grade 1B copper wire is chosen for its exceptional electrical conductivity and is coated with a polyurethane and aliphatic polyamide bond, adhering to stringent IEC 60317-35 and DIN EN 60317-35 standards. This air core coil boasts a modern, self-supporting design that eliminates the need for plastic bobbins, further enhancing audio purity. Its enameled copper wire is easily solderable thanks to a self-bonding topcoat, class 155. Ideal for audiophiles and professional audio manufacturers, this coil stands as a testament to Jantzen Audio's commitment to high-quality, reliable audio components.

        Specifications

        Article number
        000-1753
        EAN
        9505859831634
        Coil type
        Air core coils
        Inductance
        0.22 mH
        DCR
        0.46 ohms
        Tolerance
        3%
        Wire diameter
        21 AWG
