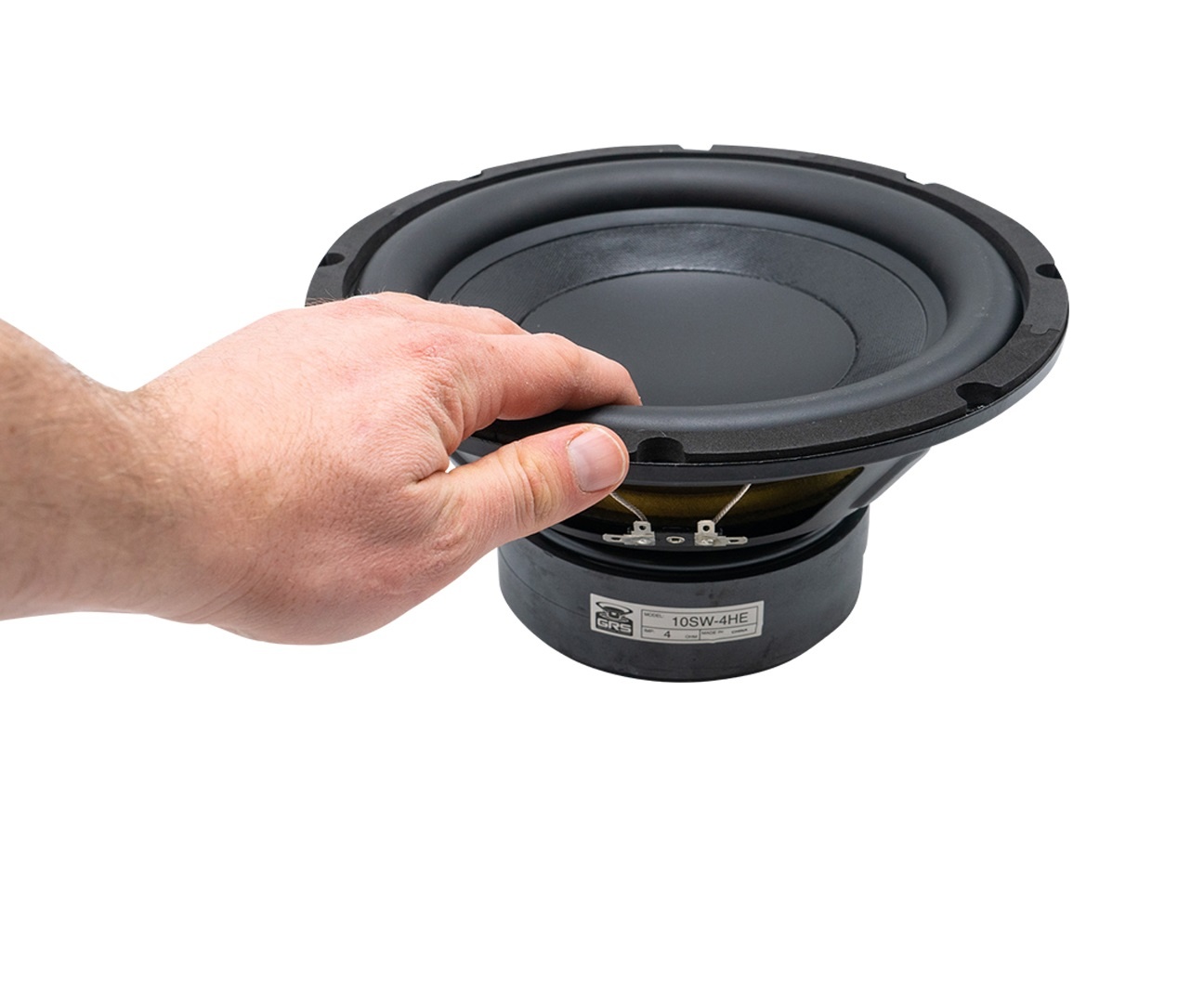

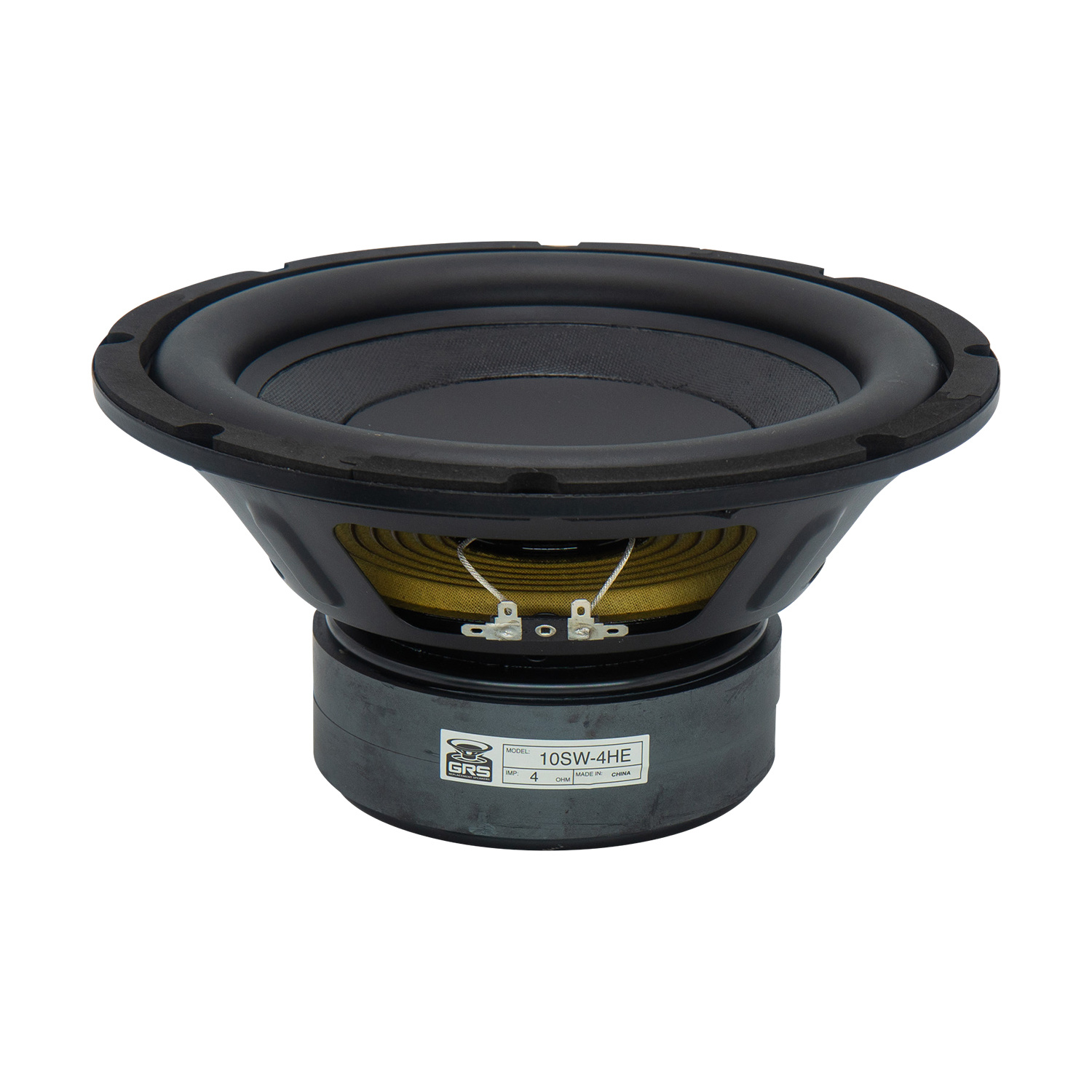

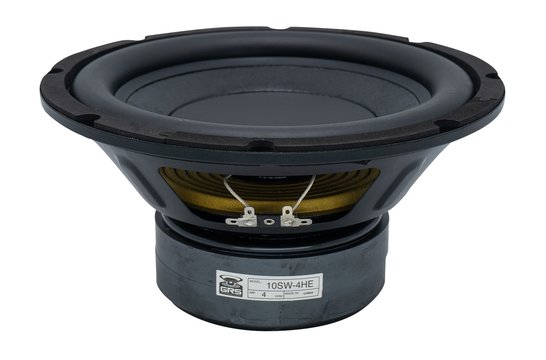

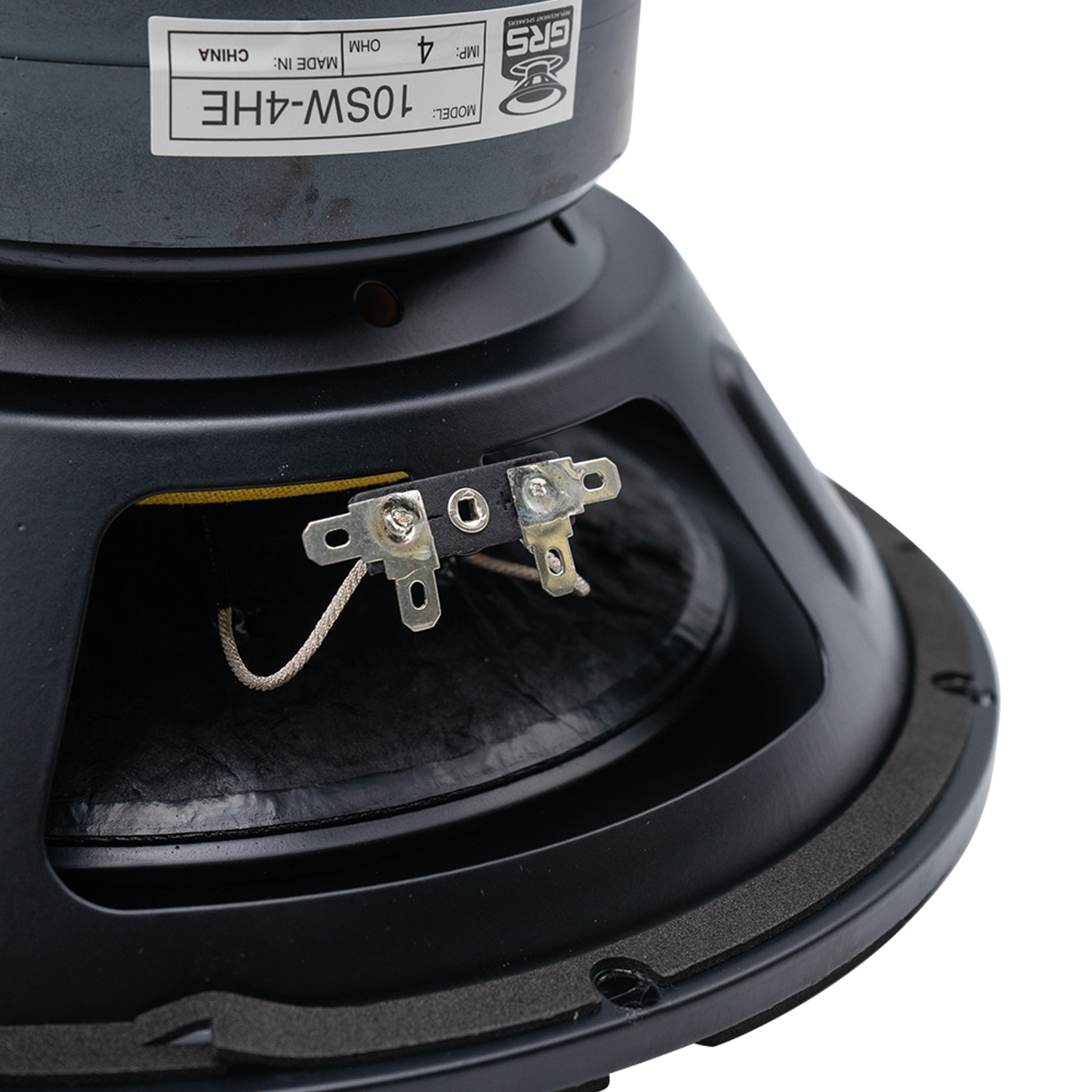

        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        GRS GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        €79,95

        10+ In stock

        Add to cart

        GRS GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        Show all Subwoofer
        10'' | 4 Ω
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        € 66,07€ 79,95 10+ In stock
        • -5% Purchase 4 for only € 75,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm
        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm

        Product description GRS 10SW-4HE Subwoofer

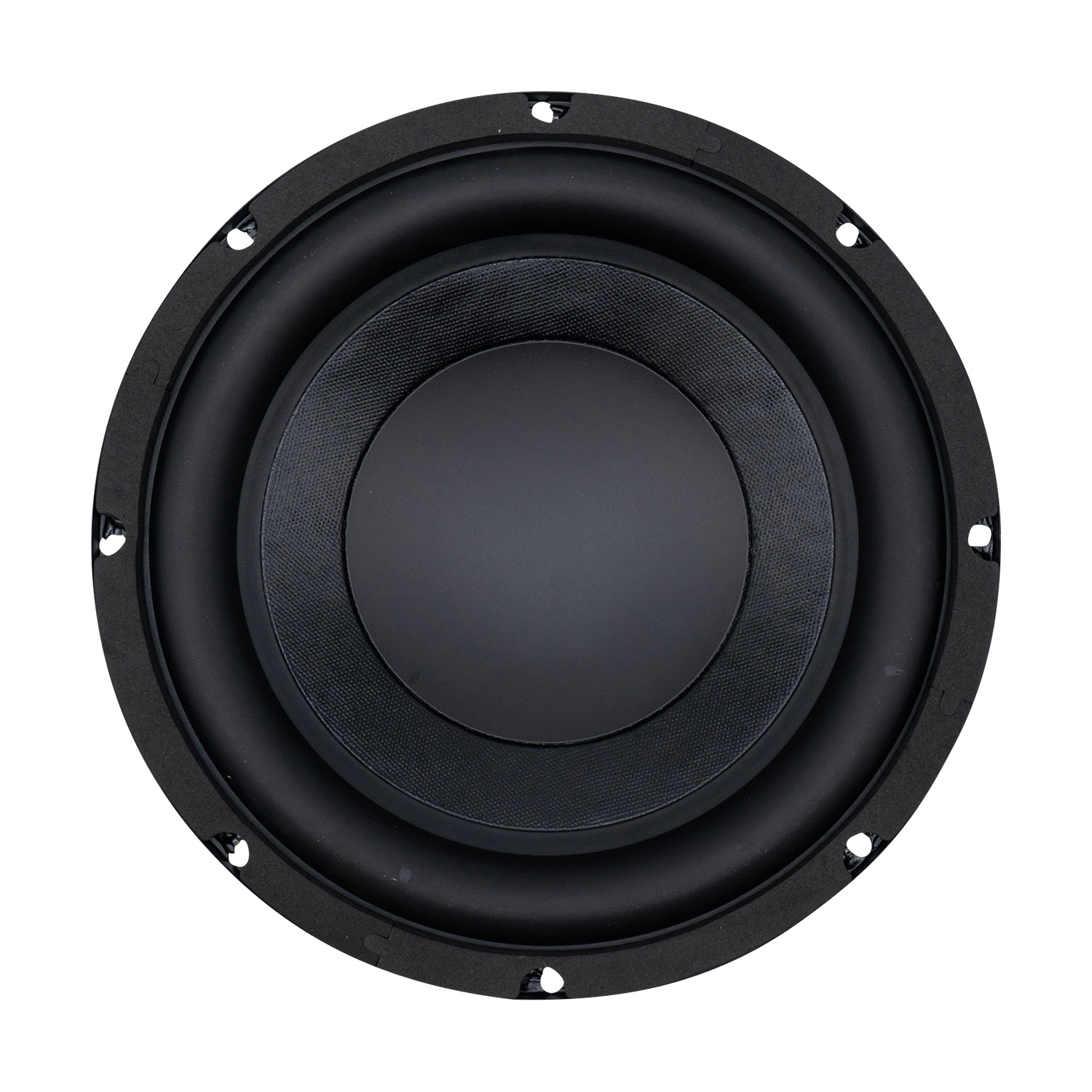

        The versatile 10SW-4HE 10” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 10SW-4HE is built for remarkable bass response on a budget.



        Highlights

        • High excursion and low Fs to produce powerful low frequency output
        • 2” voice coil on a thick aluminum former to handle up to 200 watts RMS

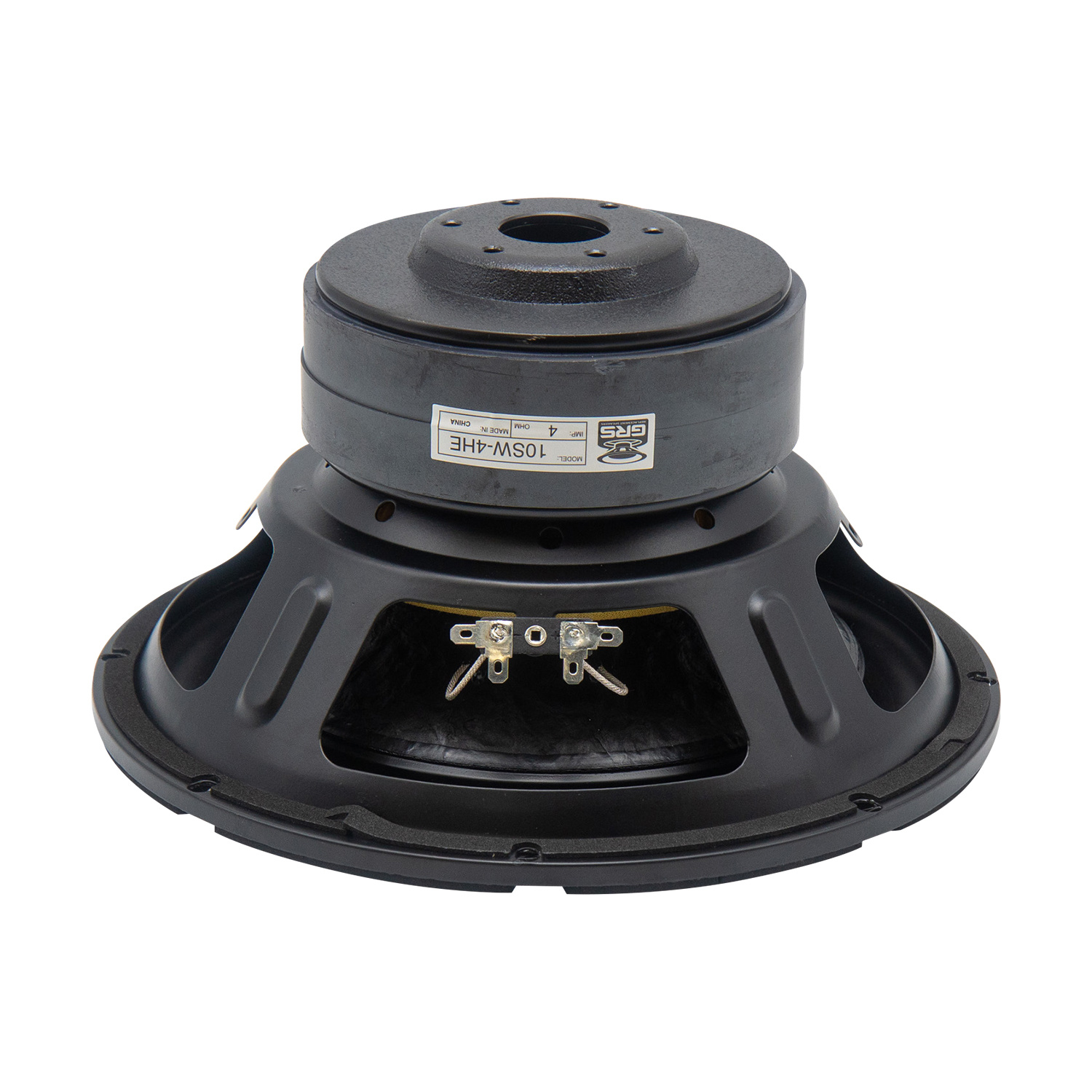

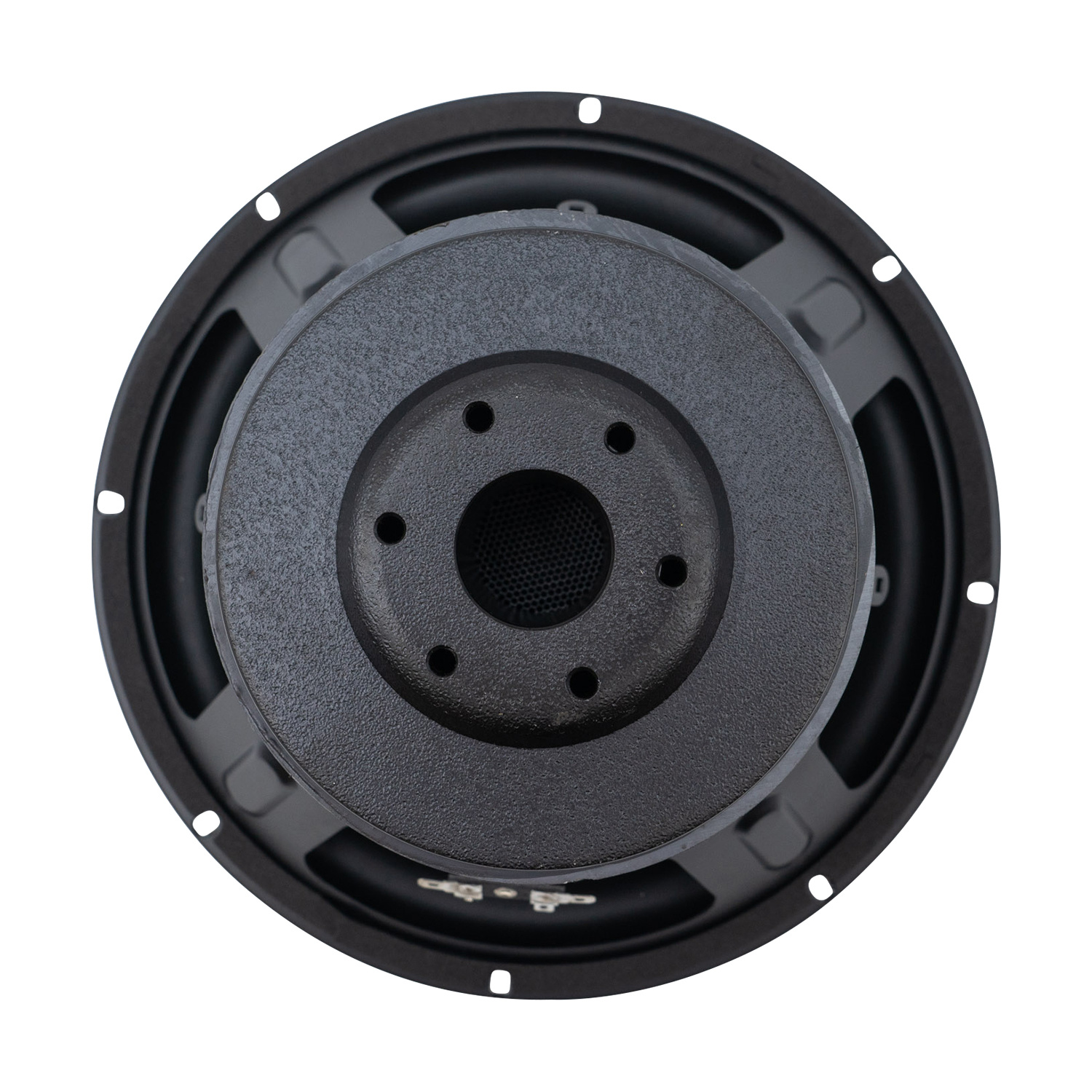

        • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation

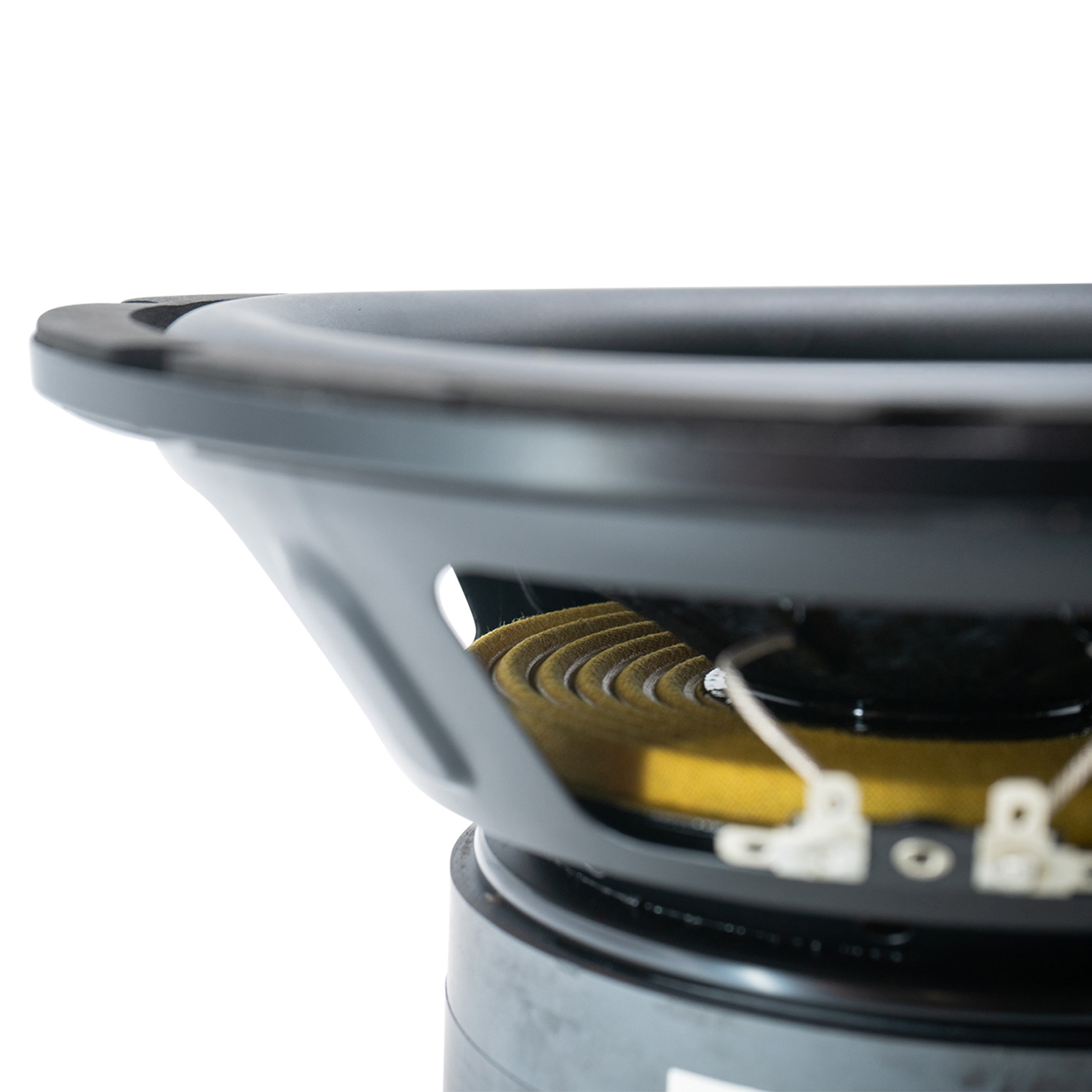

        • Durable reinforced paper cone with rubber surround produces reliable and consistent performance

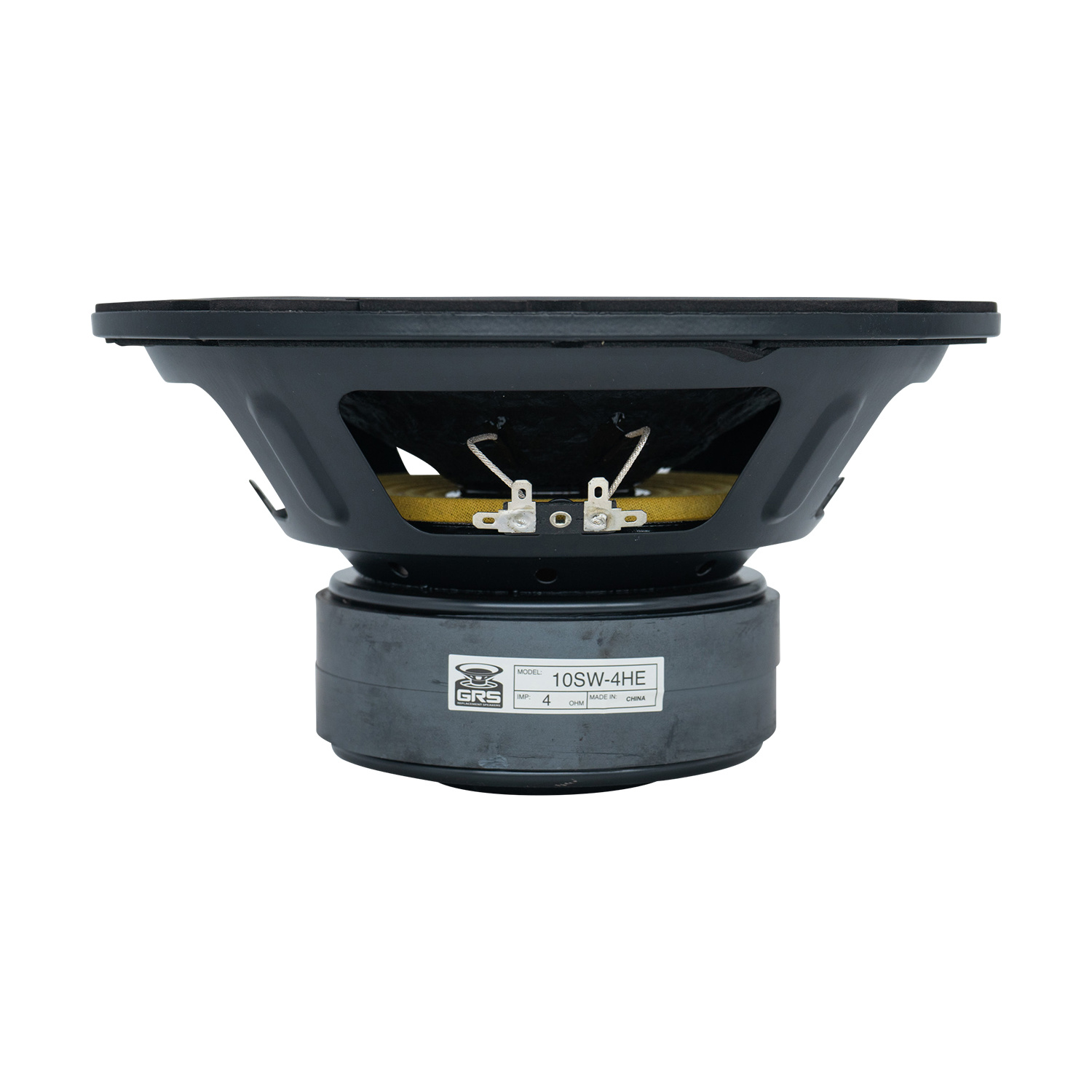

        • Extended frame and bumped back plate allow ample clearance for high excursion



        Product details

        GRS 10SW-4HE 10" High Excursion Subwoofer 4 Ohm


        The GRS 10SW-4HE 10” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 10SW-4HE is suitable as a drop-in replacement for most existing 10” subwoofers.



        Key Specs:

        • Nominal Diameter: 10"
        • Power Handling (RMS): 200W
        • Power Handling (MAX): 400W
        • Impedance: 4 Ω
        • Frequency Response: 26-500Hz
        • Sensitivity: 87.5dB 2.83V/1m
        • Voice Coil Diameter: 2"
        • Maximum Linear Excursion: 11mm



        Frequency Response & Impedance Curve

        The GRS 10SW-4HE has a bass-centric response from 20Hz up to 800Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from an 10-inch driver.



        Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 10SW-4HE can comfortably handle up to 200 watts RMS of power.

        Show more

        Specifications

        Article number
        10SW-4HE
        EAN
        0848864070476
        Woofer Type
        Subwoofer
        Nominal Diameter
        10"
        Power Handling (RMS)
        200 Watts
        Power Handling (max)
        400 Watts
        Impedance (Z)
        4Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.5 dB
        Frequency Response
        26 to 500 Hz
        Voice Coil Diameter
        2"
        DC Resistance (Re)
        3.8Ω
        Voice Coil Inductance (Le)
        3mH
        Resonant Frequency (Fs)
        25.2 Hz
        Mechanical Q (Qms)
        4
        Total Q (Qts)
        0.5
        Diaphragm Mass Inc. Airload (Mms)
        110.7g
        Mechanical Compliance of Suspension (Cms)
        0.36mm/N
        Surface Area of Cone (Sd)
        346.4cm²
        BL Product (BL)
        10.8T·m
        Compliance Equivalent Volume (Vas)
        2.14ft³
        Maximum Linear Excursion (Xmax)
        11 mm
        Cone / Diaphragm Material
        Coated Paper
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        10.11"
        Overall Depth
        5.15"
        Baffle Cutout Diameter
        9.18"
        Bolt Circle Diameter
        9.64
        # Mounting Holes
        8
        Sealed Volume
        1ft³
        Sealed F3
        43Hz
        Vented Volume
        2ft³
        Vented F3
        25Hz
