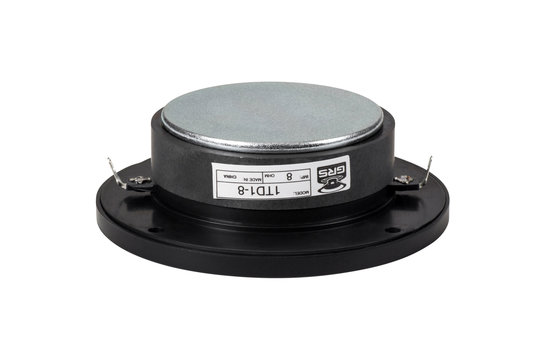

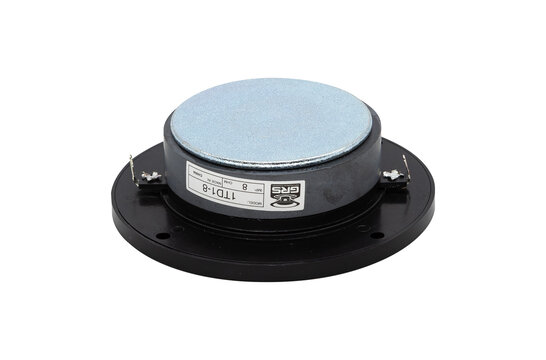

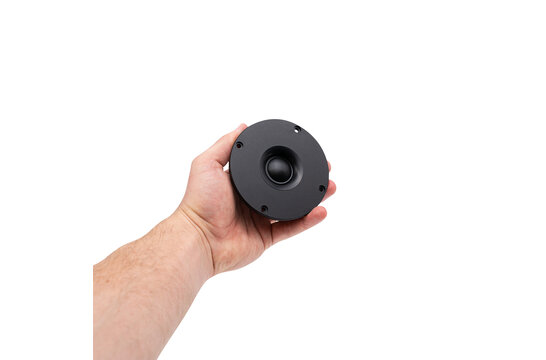

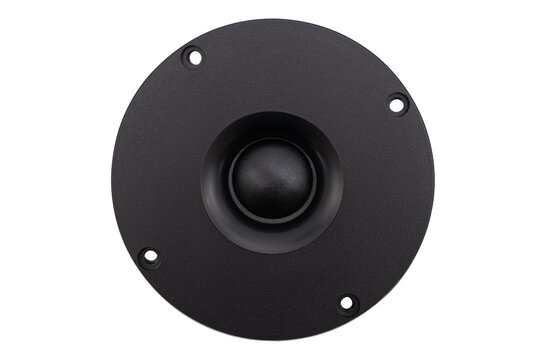

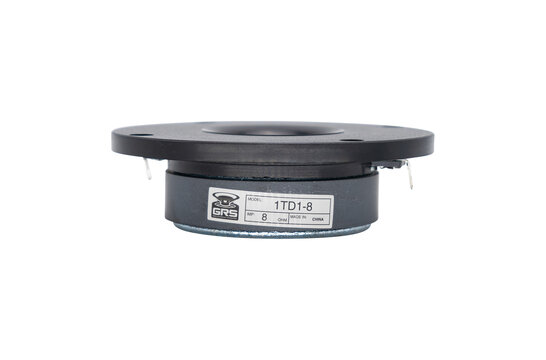

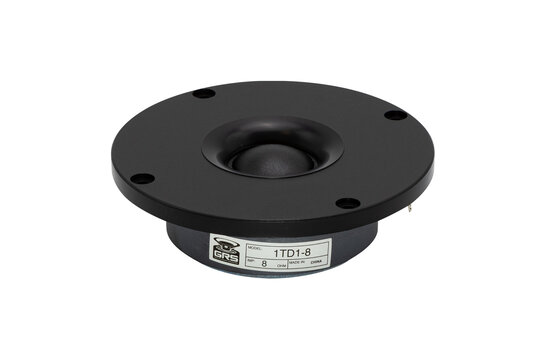

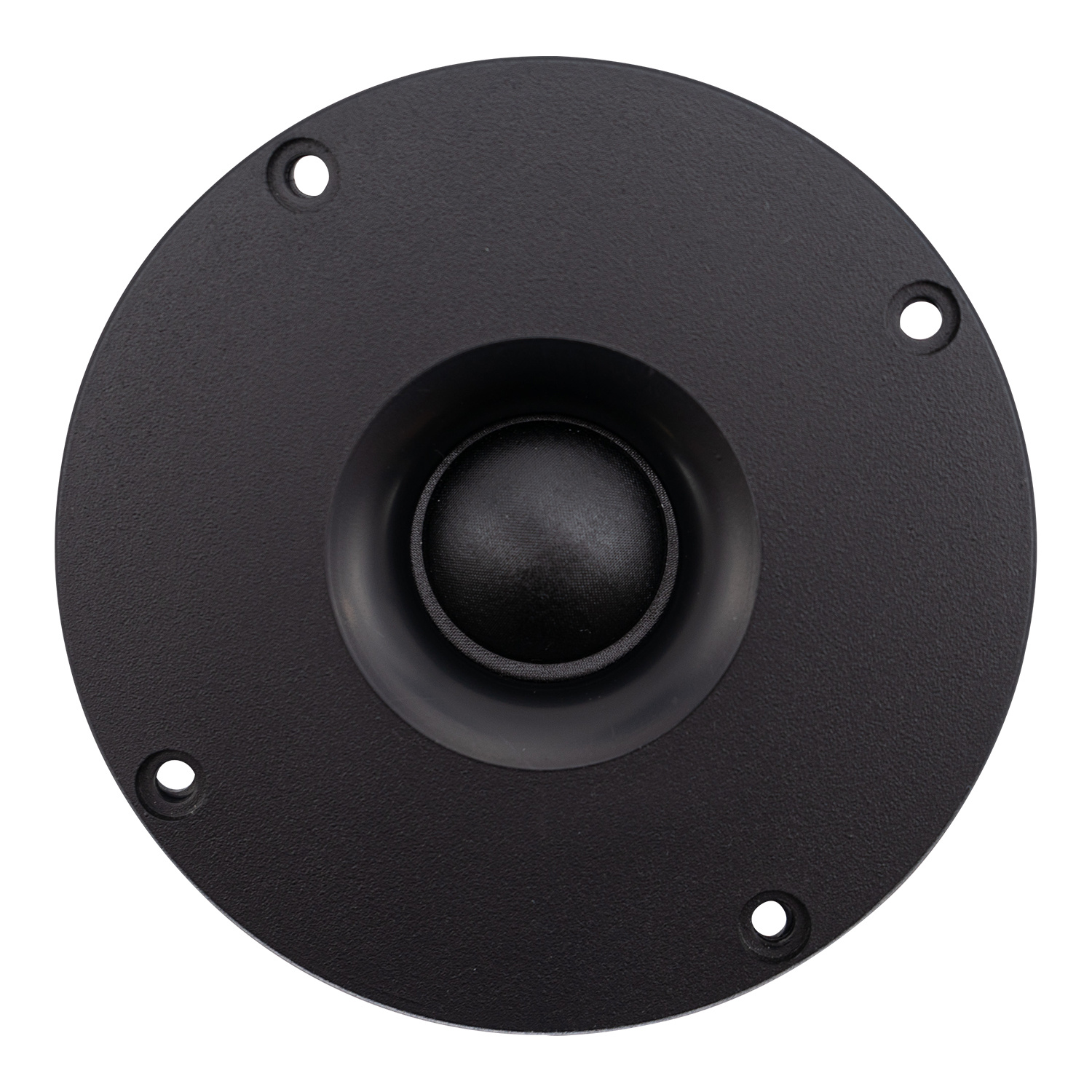

        Product description GRS 1TD1-8 Dome Tweeter

        The GRS 1TD1-8 is an economical replacement for dome tweeters in a wide range of classic speakers. It’s also a great choice for new budget builds!



        Highlights

        • Fabric dome with 1" voice coil
        • Round injection-molded faceplate
        • Economical replacement for dome tweeters
        • Smooth, detailed sound quality



        Product details

        GRS 1TD1-8 1" Dome Tweeter 8 Ohm



        Don’t throw away your classic speakers with blown tweeters! The GRS 1TD1-8 is a drop-in replacement for many classic OEM dome tweeters. Preserve the clarity of your classic speakers with these economical units, or add smooth highs to your affordable speaker project with this basic unit. It’s a lot of bang for the buck!

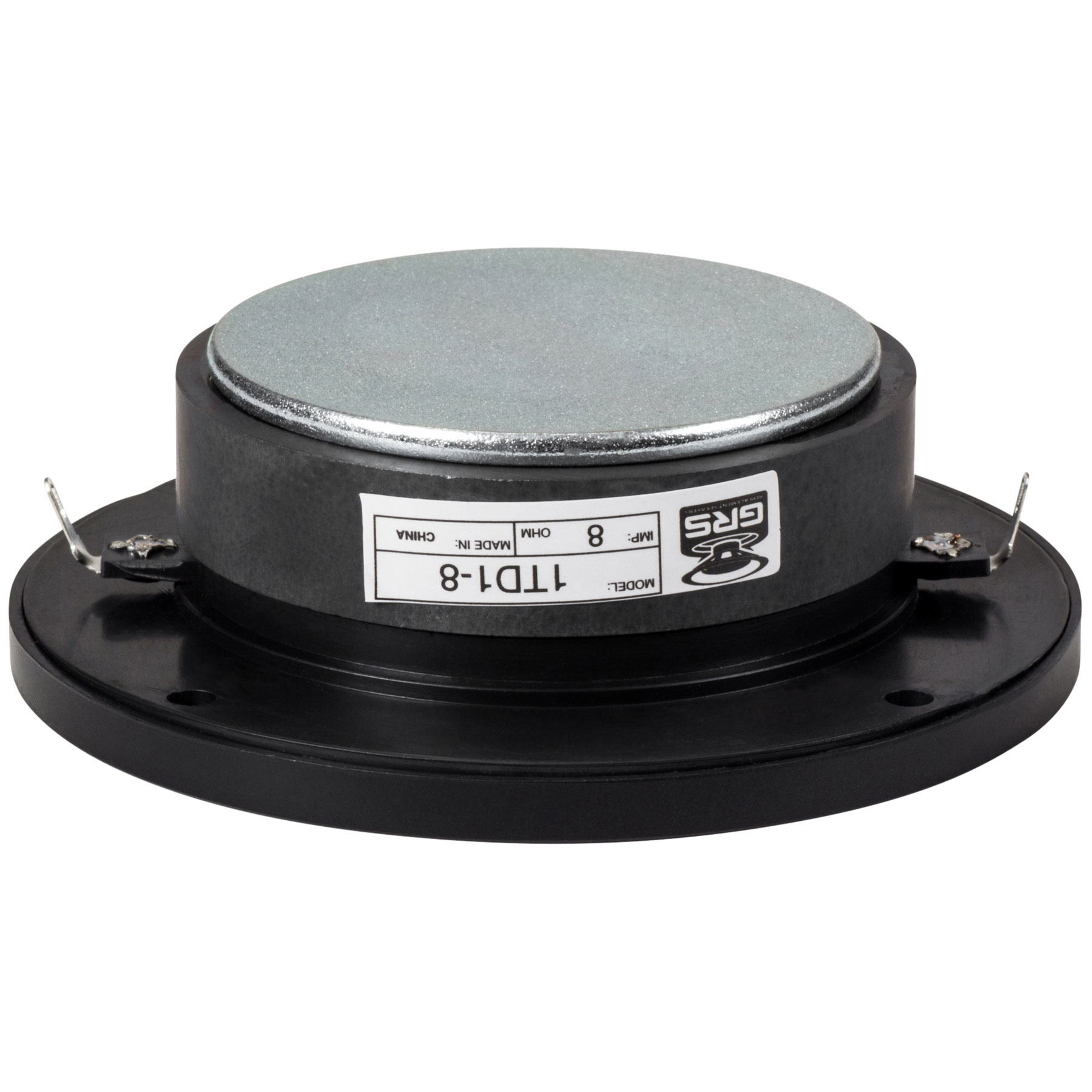

        The round faceplate of the 1TD1-8 fits the cutouts for most classic dome tweeters, while its shape reduces diffraction, preserving excellent on-axis response and detail. The 1" voice coil handles plenty of power, and the ferrite magnet assembly provides plenty of force for the lightweight dome, for dynamic reproduction. The 8-ohm impedance makes it compatible with most existing crossovers.

        Show more

        Specifications

        Article number
        1TD1-8
        EAN
        0848864016382
        Tweeter Type
        Replacement tweeter
        Tweeter Series
        Soft dome
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        50 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        2,200 to 20,000 Hz
        Resonant Frequency (Fs)
        1130 Hz
        DC Resistance (Re)
        7.48 ohms
        Voice Coil Inductance (Le)
        0.11 mH
        Mechanical Q (Qms)
        3.29
        Electromagnetic Q (Qes)
        1.84
        Total Q (Qts)
        1.18
        Overall Outside Diameter
        4.06"
        Cutout Diameter
        2.875"
        Depth
        1.25"
