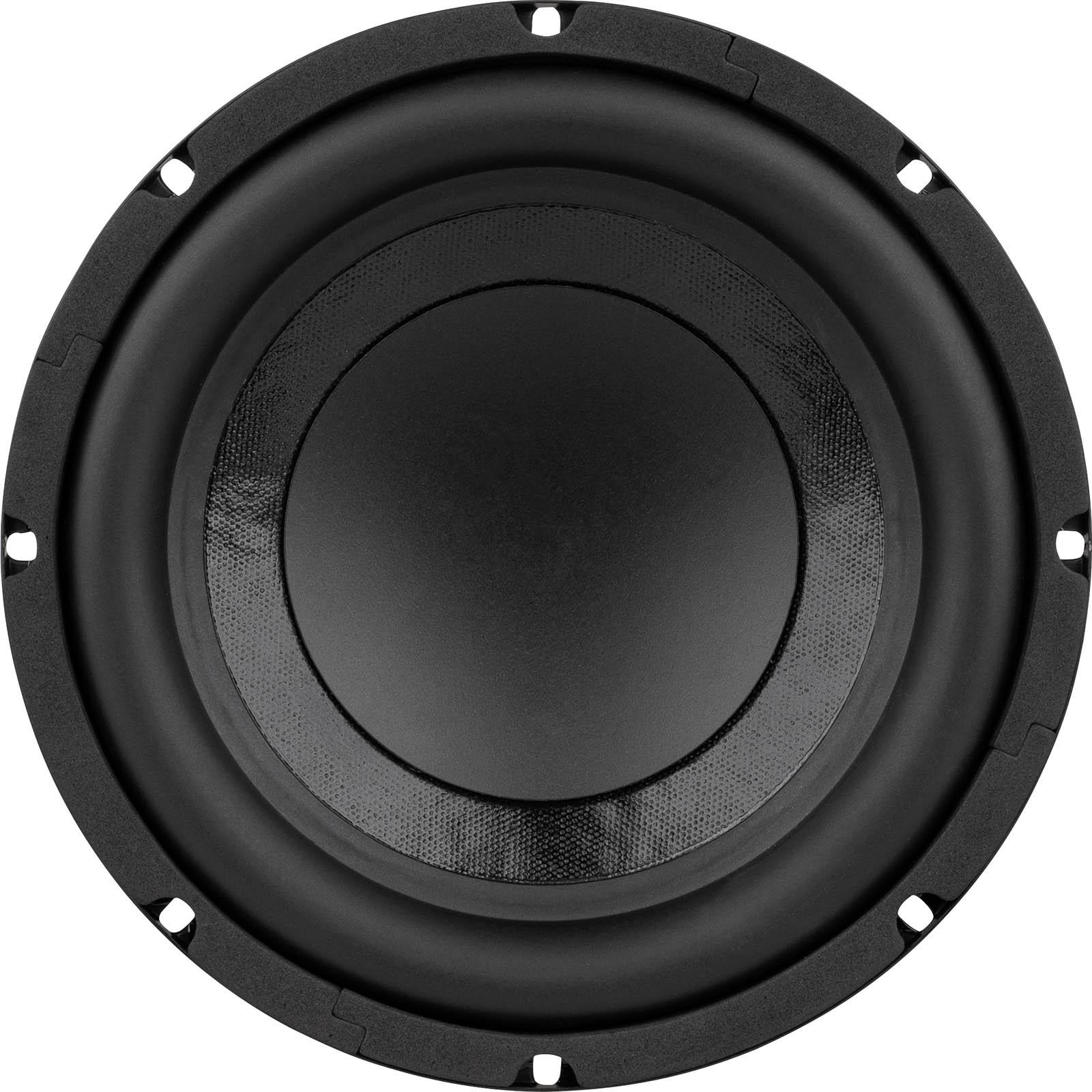

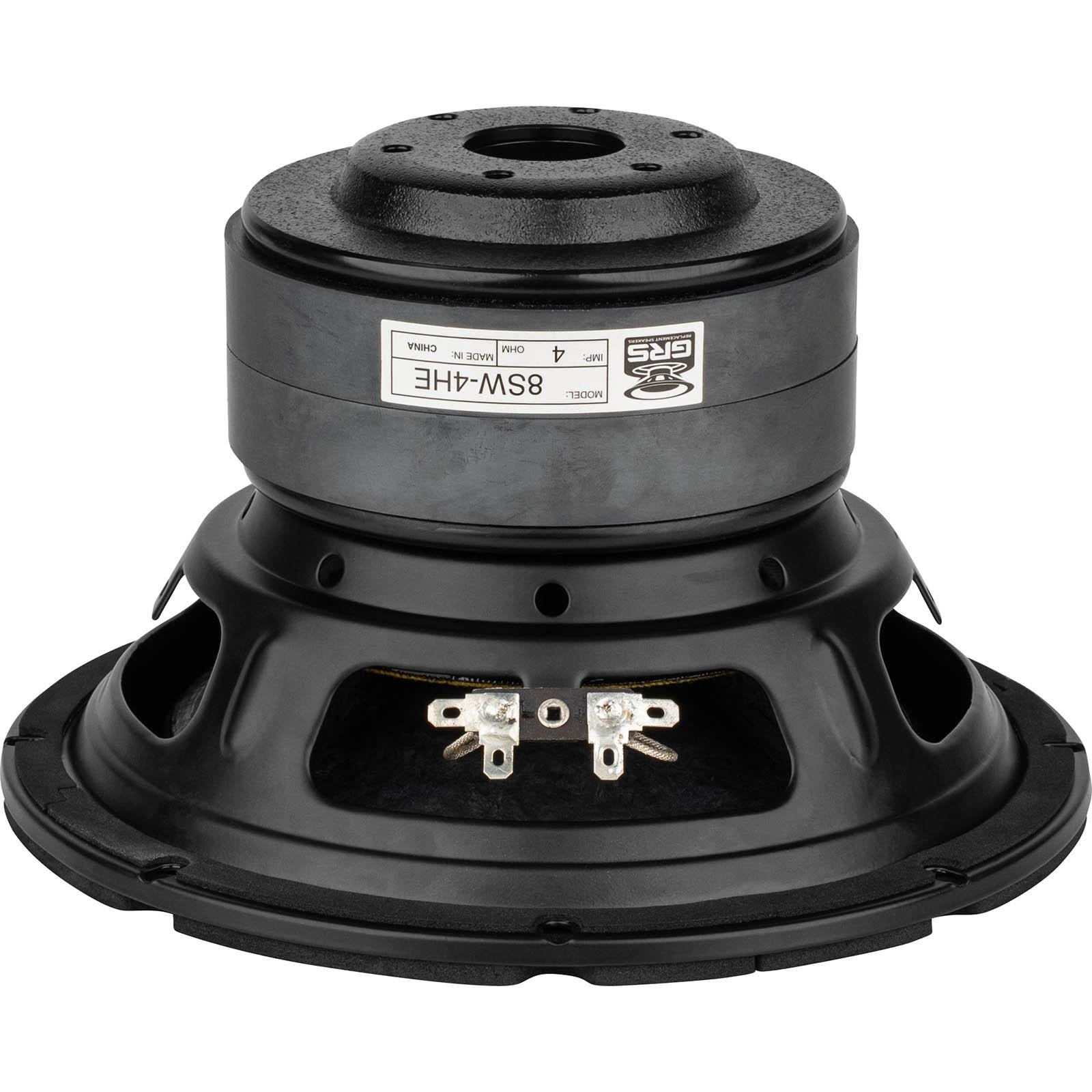

        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

        GRS 8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

        €69,95

        10+ expected on 27-12-2024

        Add to cart

        GRS 8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

        10 reviews
        5 from 5
        10 reviews
        5 stars
        90%
        4 stars
        10%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        Show all Subwoofer
        8'' | 4 Ω
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        € 57,81€ 69,95 Out of stock10+ expected on 27-12-2024
        • -5% Purchase 4 for only € 66,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm
        8SW-4HE-8 Paper Cone Rubber Surround High-Excursion Subwoofer 4 Ohm

        Product description GRS 8SW-4HE-8 Subwoofer

        The versatile 8SW-4HE 8” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 8SW-4HE is built for remarkable bass response on a budget.



        Highlights

        • High excursion and low Fs to produce powerful low frequency output
        • 2” voice coil on a thick aluminum former to handle up to 150 watts RMS
        • Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
        • Durable reinforced paper cone with rubber surround produces reliable and consistent performance
        • Extended frame and bumped back plate allow ample clearance for high excursion



        Product details

        GRS 8SW-4HE 8" High Excursion Subwoofer 4 Ohm



        The GRS 8SW-4HE 8” high excursion subwoofer from GRS is an ideal replacement driver for existing subwoofer systems or an excellent choice for new economical designs. Capable of producing powerful bass response in both sealed and vented designs, the 8SW-4HE is suitable as a drop-in replacement for most existing 8” subwoofers.



        Key Specs:

        • Nominal Diameter: 8"
        • Power Handling (RMS): 150W
        • Power Handling (MAX): 300W
        • Impedance: 4 Ω
        • Frequency Response: 30-700Hz
        • Sensitivity: 85dB 2.83V/1m
        • Voice Coil Diameter: 2"
        • Maximum Linear Excursion: 10.8mm



        Frequency Response & Impedance Curve

        the GRS 8SW-4HE has a bass-centric response from 30Hz up to 700Hz and is highly efficient within its passband. This efficiency and a low QTS lends itself well to both vented and sealed subwoofers for incredibly deep bass from an 8-inch driver.



        Extensive venting through the frame, pole piece, and magnetic gap dissipates excess heat to keep power compression to a minimum, even when driven hard for long periods. The rigid paper cone is supported by a large diameter spider and rubber surround to keep excursion linear while providing reliable performance. With a high temperature 2” voice coil wound on a thick aluminum former the 8SW-4HE can comfortably handle up to 150 watts RMS of power.

        Show more

        Specifications

        Article number
        8SW-4HE-8
        EAN
        0848864070469
        Woofer Type
        Subwoofer
        Nominal Diameter
        8"
        Power Handling (RMS)
        150 Watts
        Power Handling (max)
        300 Watts
        Impedance (Z)
        4Ω
        Sensitivity (SPL at 1m / 2.83V)
        85 dB
        Frequency Response
        30 to 700HzHz
        Voice Coil Diameter
        2"
        Magnet Weight
        1,6 Kg
        DC Resistance (Re)
        3.8Ω
        Voice Coil Inductance (Le)
        2.7mH
        Resonant Frequency (Fs)
        24.9 Hz
        Mechanical Q (Qms)
        4.42
        Electromagnetic Q (Qes)
        0.51
        Total Q (Qts)
        0.45
        Diaphragm Mass Inc. Airload (Mms)
        93.7g
        Mechanical Compliance of Suspension (Cms)
        0.44mm/N
        Surface Area of Cone (Sd)
        227cm²
        BL Product (BL)
        10.5T·m
        Compliance Equivalent Volume (Vas)
        1.12ft³
        Maximum Linear Excursion (Xmax)
        10.8 mm
        Cone / Diaphragm Material
        Coated Paper
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        8.22"
        Overall Depth
        4.6"
        Baffle Cutout Diameter
        7.125"
        Bolt Circle Diameter
        7.8
        # Mounting Holes
        8
        Sealed Volume
        0.5ft³
        Sealed F3
        46Hz
        Vented Volume
        1ft³
        Vented F3
        27Hz

        Show more
