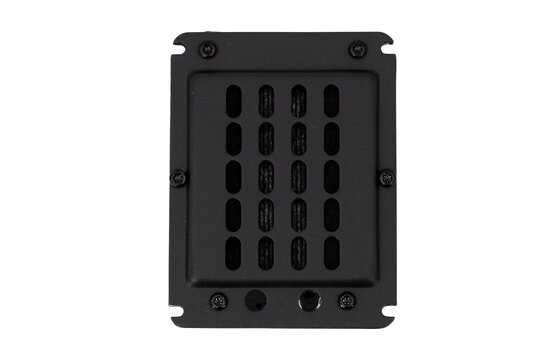

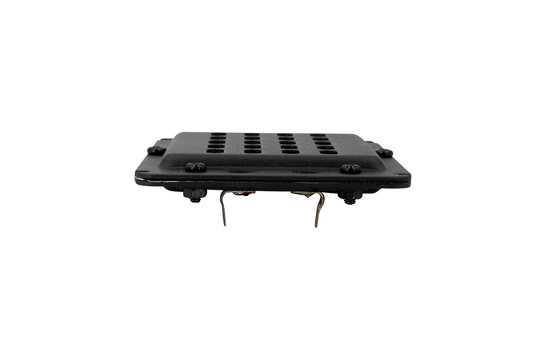

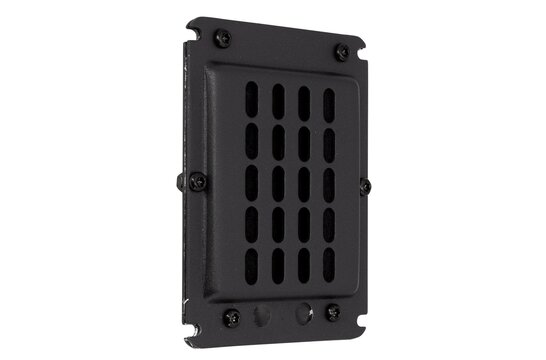

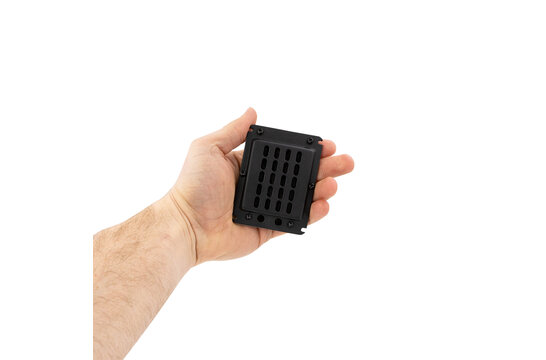

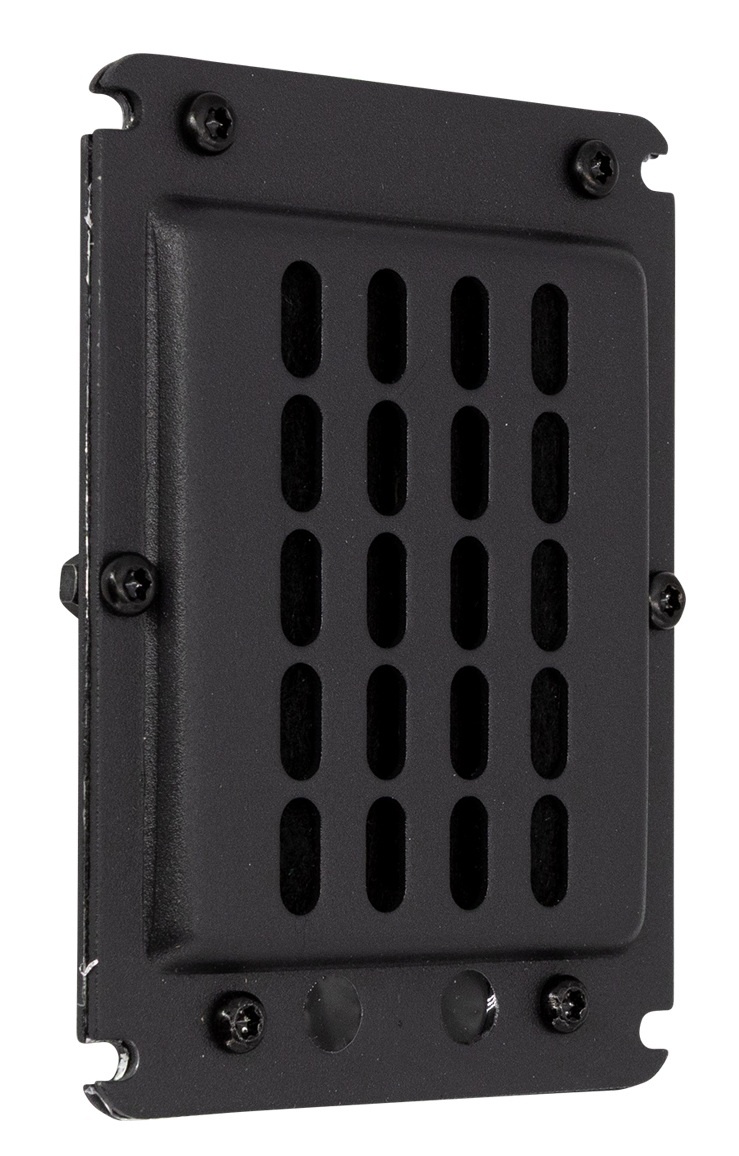

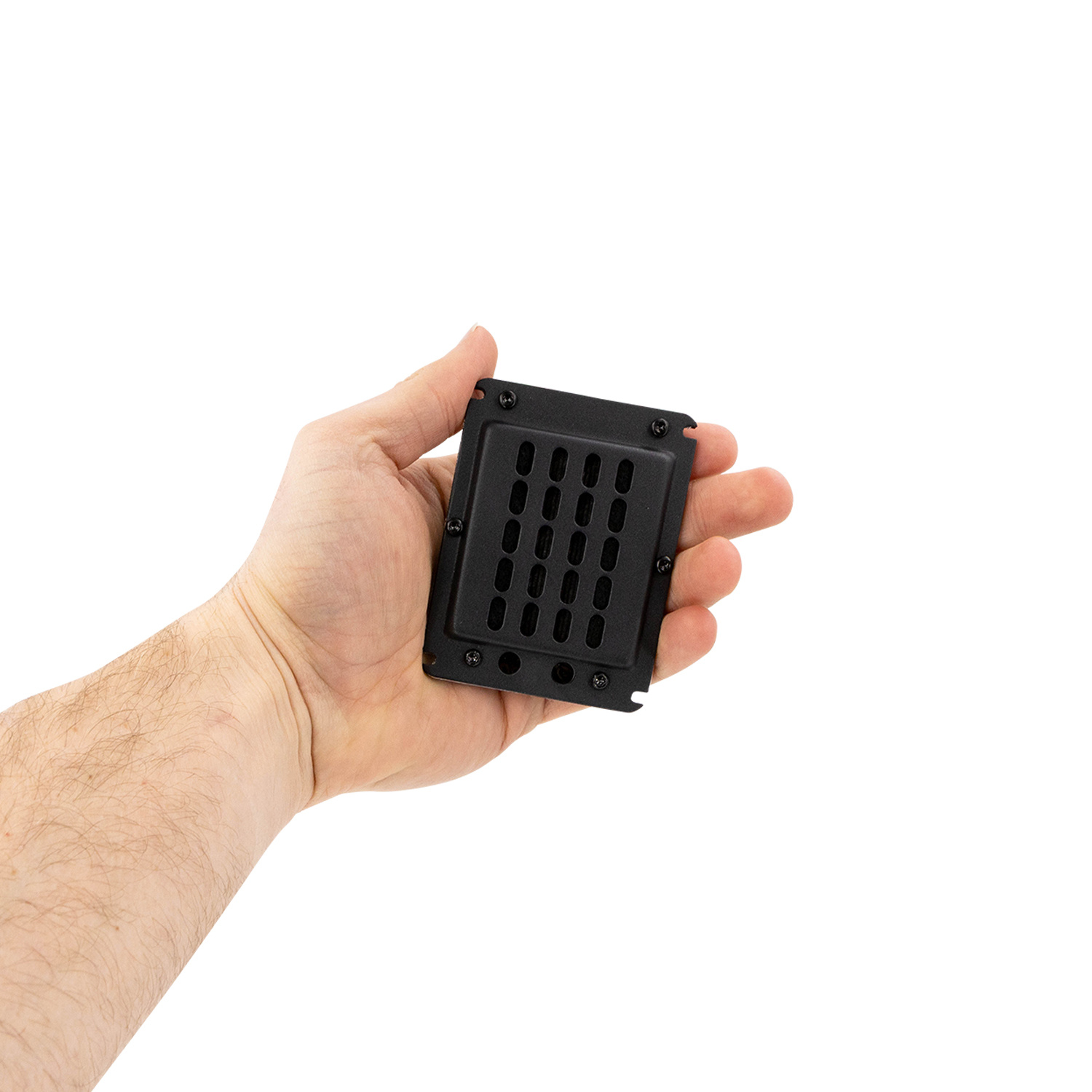

        PT2522-4 Planar Tweeter

        GRS PT2522-4 Planar Tweeter

        €54,95

        1 In stock6 expected on 20-11-2024

        Add to cart

        GRS PT2522-4 Planar Tweeter

        4 reviews
        5 from 5
        4 reviews
        5 stars
        75%
        4 stars
        25%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        Show all Planar tweeter
        3.5" | 4 Ω
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        € 45,41€ 54,95 1 In stock6 expected on 20-11-2024
        • -5% Purchase 4 for only € 52,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter
        PT2522-4 Planar Tweeter

        Product description GRS PT2522-4 Planar Tweeter

        With a low mass diaphragm and powerful motor, the GRS PT2522-4 planar back tweeter delivers high efficiency output with excellent transient response. The open back construction produces true dipole radiation which is ideal for use in open baffle designs. Smooth frequency response and low distortion gives the PT2522-4 an incredibly natural but dynamic sound.



        Highlights

        • Extremely low mass diaphragm provides excellent transient response and accuracy
        • Large diaphragm produces high efficiency and wide bandwidth
        • Remarkably flat response even at 30 degrees off axis
        • Open back delivers true dipole radiation for use in open baffle designs
        • Linear impedance simplifies crossover design
        • Shallow mounting depth for use in low profile designs



        Product Details

        GRS PT2522-4 3-1/2" Planar Tweeter 4 Ohm



        The GRS PT2522-4 open back planar tweeter is designed to deliver high efficiency with dynamic response. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm that is driven by 6 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and low distortion. The linear 3.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off. In addition, the open back design gives this tweeter true dipole radiation making it the perfect choice for use in open baffle speaker designs. The PT2522-4 is a perfect choice for use as a drop in replacement in existing systems or for use in new designs where low distortion and accurate response is needed.

        Show more

        Specifications

        Article number
        PT2522-4
        EAN
        0848864061214
        Tweeter Type
        Planar
        Power Handling (RMS)
        20 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        800 to 20,000 Hz
        DC Resistance (Re)
        3.4 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        4.60
        Total Q (Qts)
        4.46
        Overall Outside Diameter
        3.5" x 2.66"
        Cutout Diameter
        2.87" x 2.3"
        Depth
        0.4"

        Show more

        Reviews

        4 reviews
        Review this product
        5 of 5
        Great dipole tweeter OB. Works wery well. I'm recommended.
        By Jan Kovalcik on 19 April 2024
        4 of 5
        Very good price/performance relation. Works well in my OB.
        By Jesper V. on 5 May 2021
