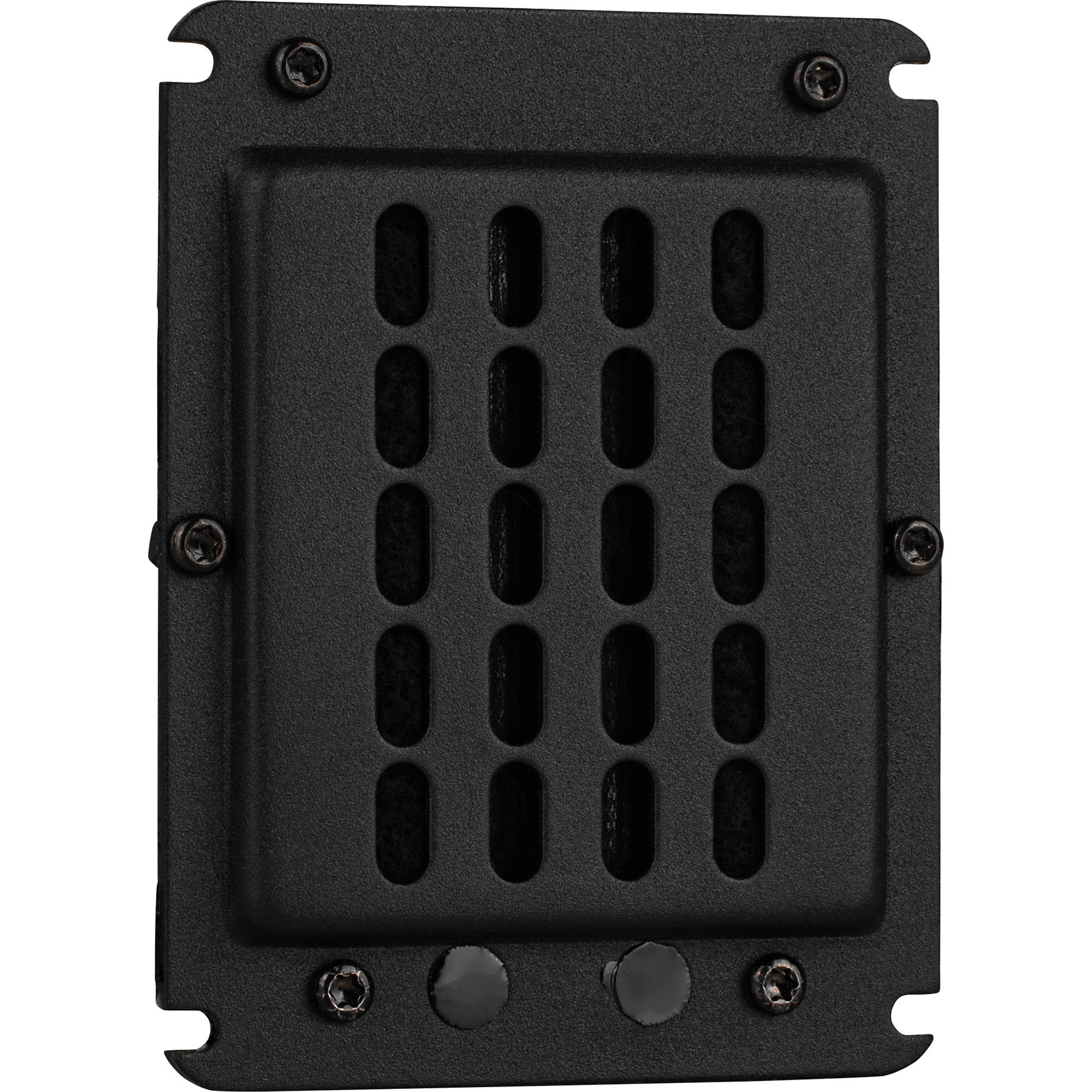

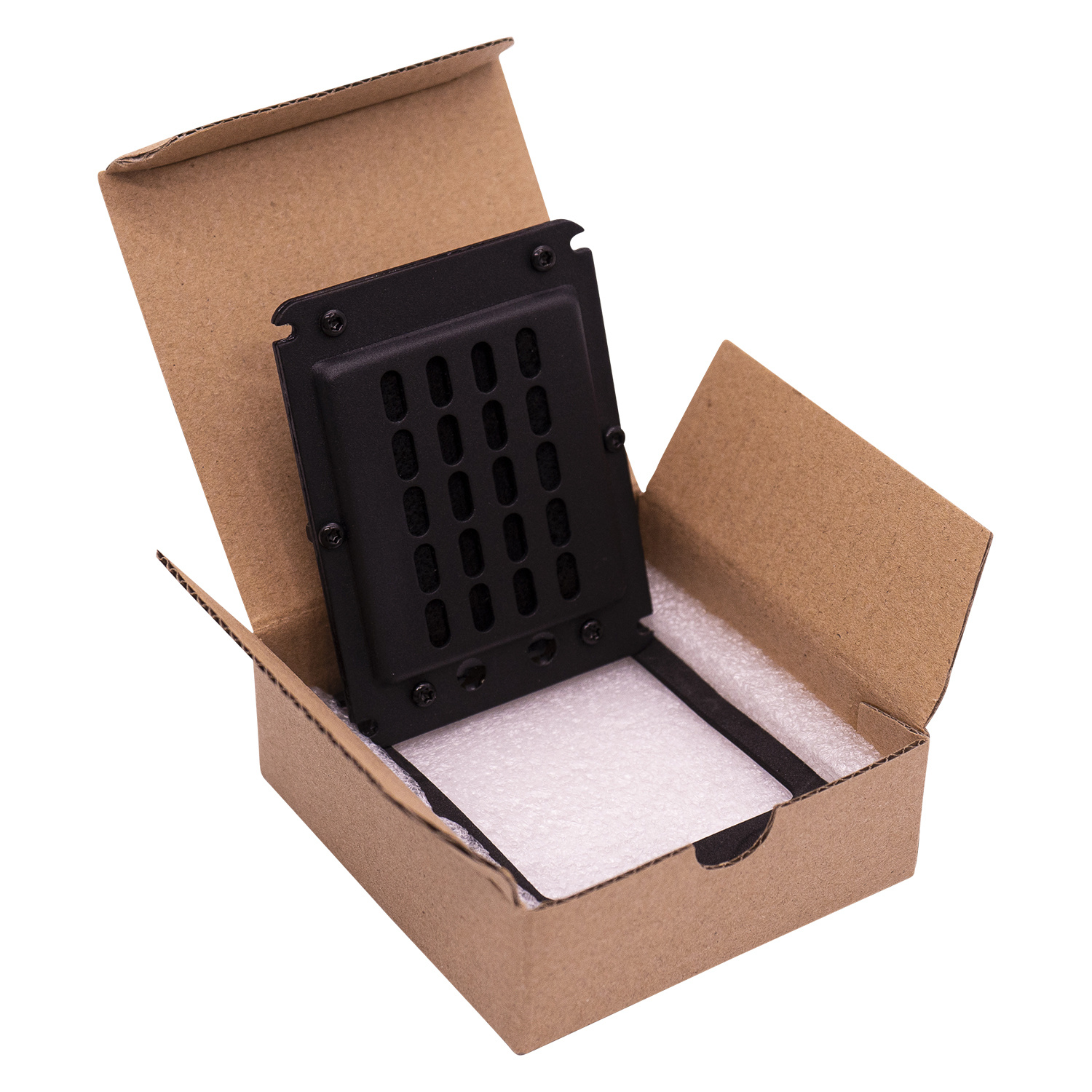

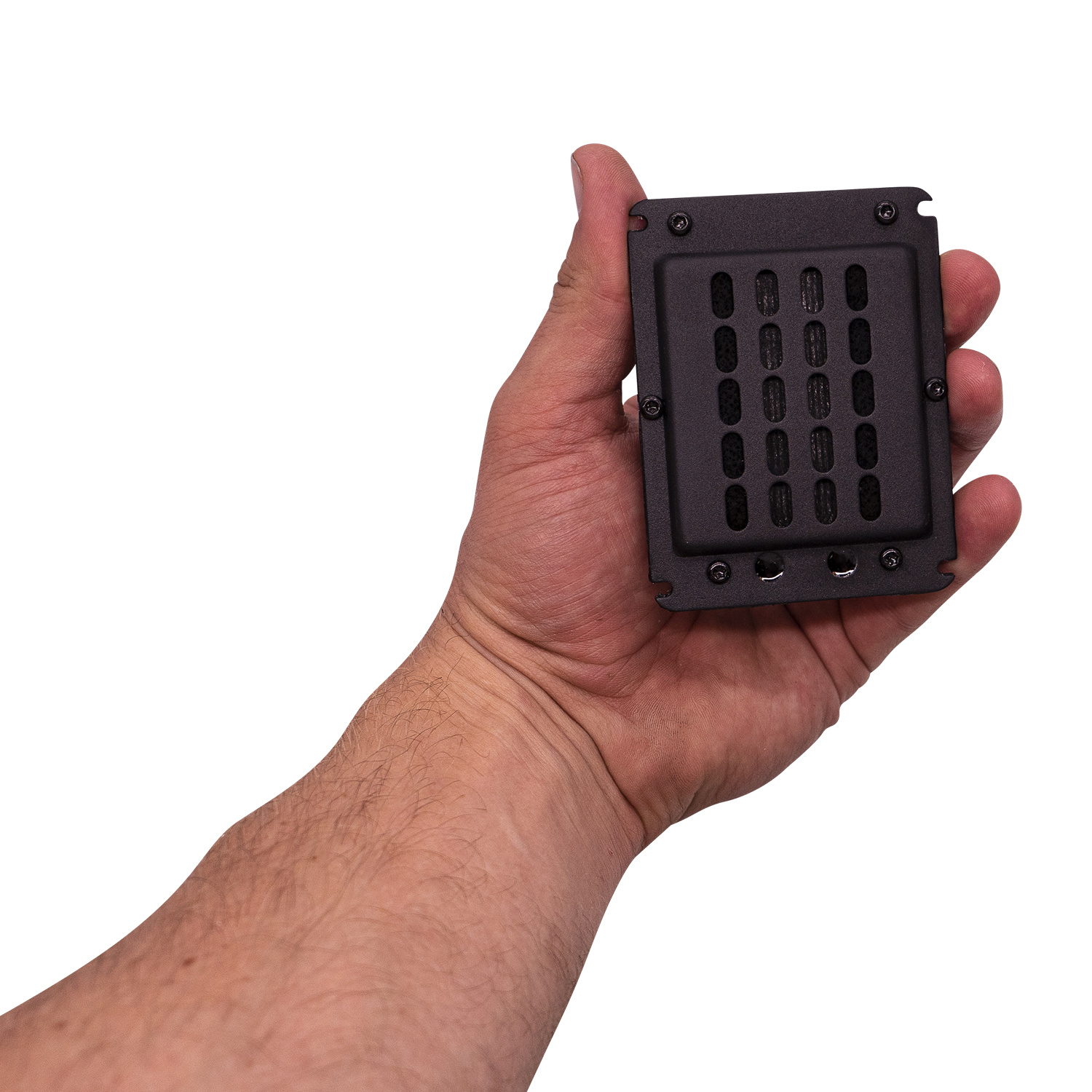

        PT2522C-4 Planar Tweeter with Back Cup

        GRS PT2522C-4 Planar Tweeter with Back Cup

        €54,95

        Out of stock

        Add to cart

        GRS PT2522C-4 Planar Tweeter with Back Cup

        2 reviews
        5 from 5
        2 reviews
        5 stars
        50%
        4 stars
        50%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        Show all Planar tweeter
        3.5" | 4 Ω
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        € 45,41€ 54,95 Out of stock
        • -5% Purchase 4 for only € 52,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup
        PT2522C-4 Planar Tweeter with Back Cup

        Product description GRS PT2522C-4 Planar Tweeter with Back Cup

        With a low mass diaphragm and powerful motor, the GRS PT2522C-4 planar sealed back tweeter delivers high efficiency output with excellent transient response. The low profile sealed back allows this tweeter to be installed easily into conventional speakers without the need for a separate sub-enclosure. Remarkably smooth frequency response gives the PT2522C-4 an incredibly natural but dynamic sound.



        Highlights

        • Extremely low mass diaphragm provides excellent transient response and accuracy
        • Large diaphragm produces high efficiency and wide bandwidth
        • Multiple neodymium magnets in push pull arrangement for incredible control and low distortion
        • Remarkably flat response even at 30 degrees off axis
        • Linear impedance simplifies crossover design

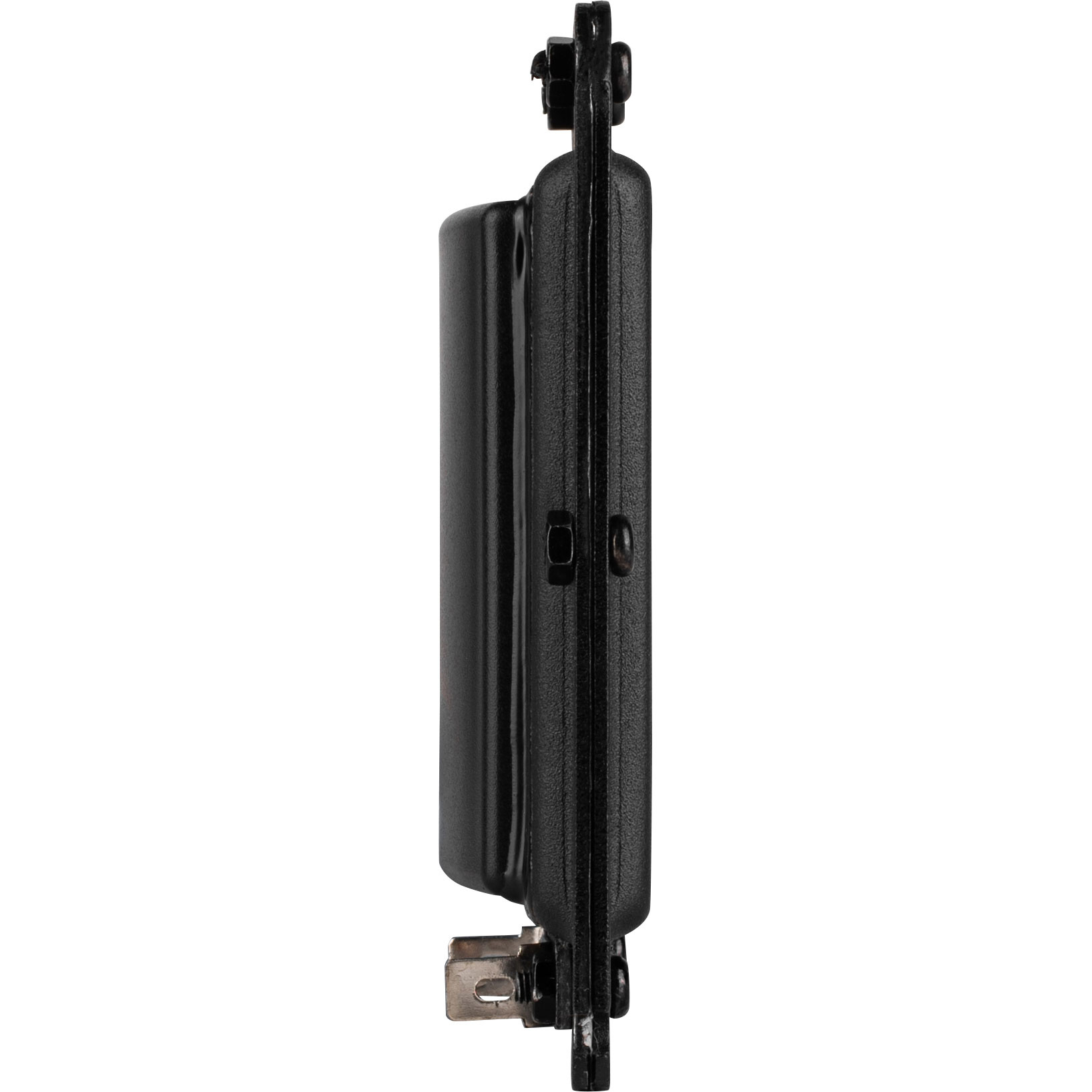

        • Shallow mounting depth for use in low profile designs



        Product Details

        GRS PT2522C-4 3-1/2" Planar Tweeter with Back Cup 4 Ohm

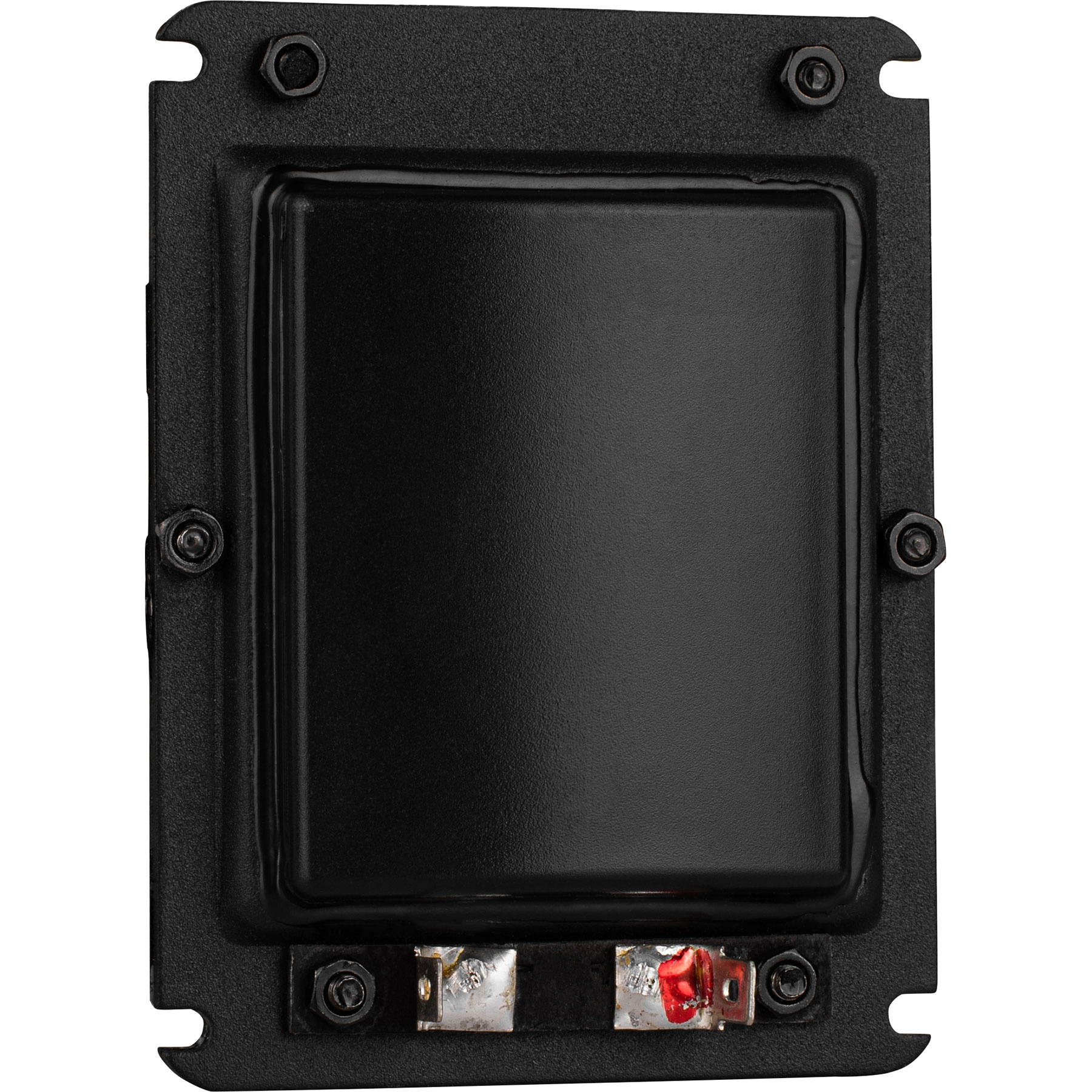

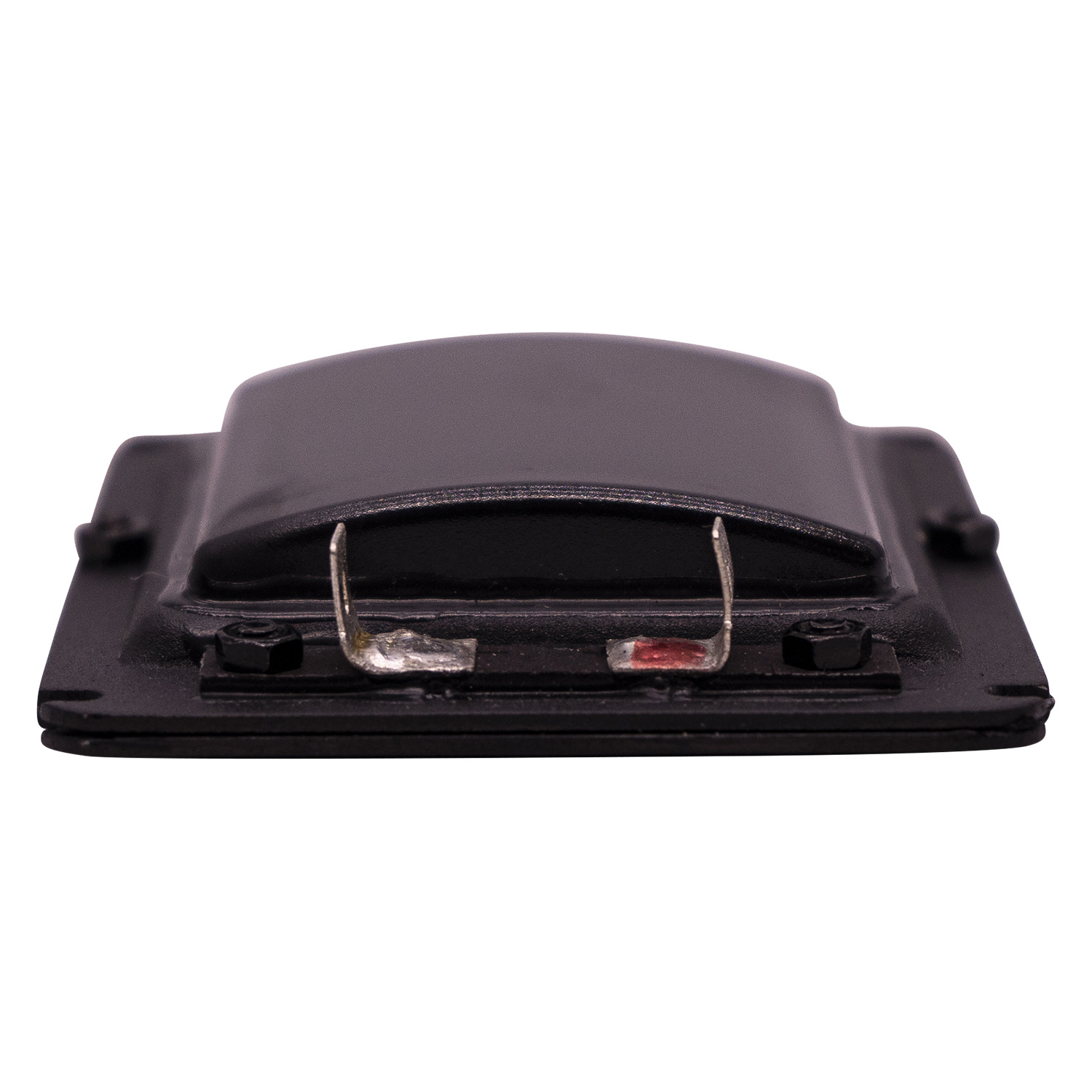

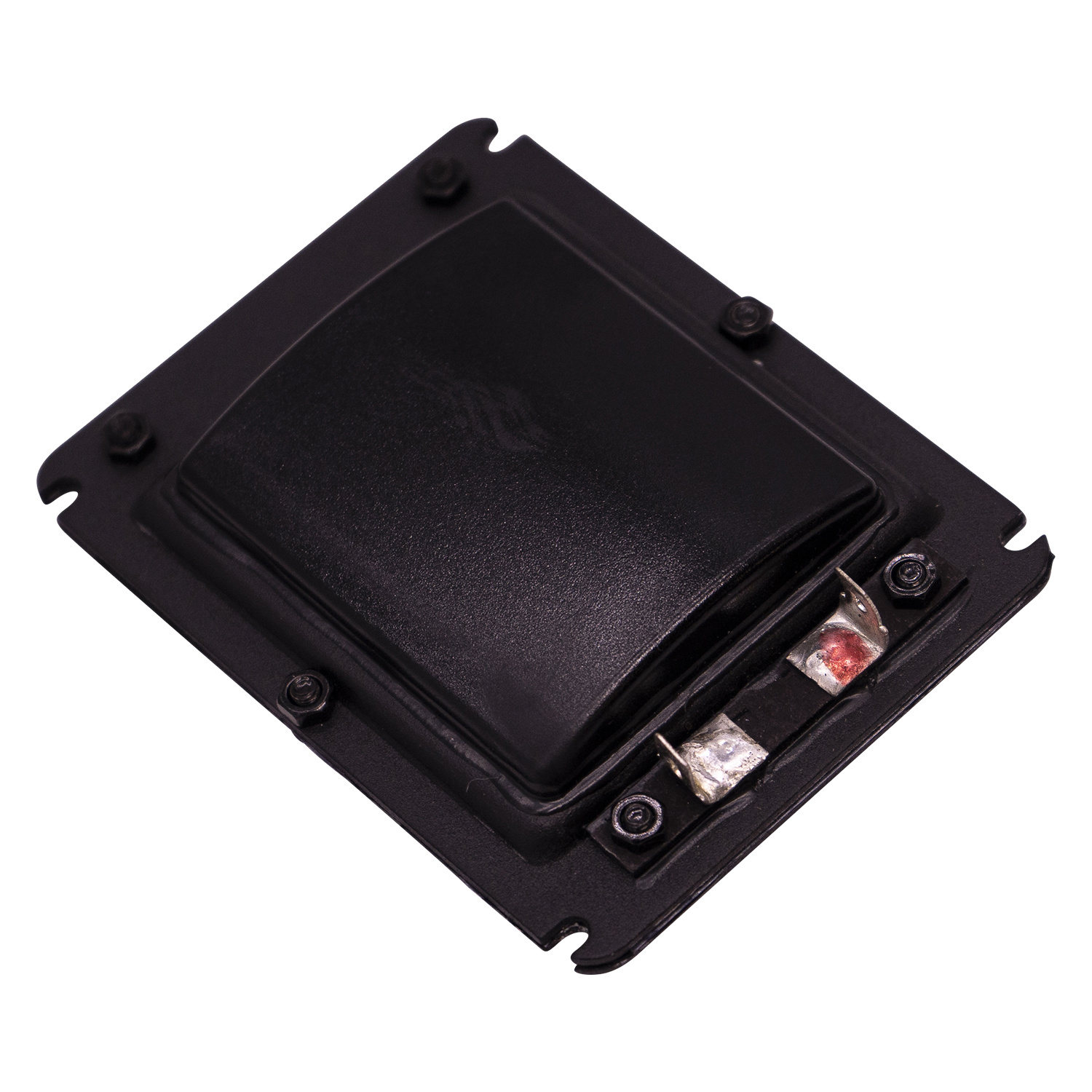

        The GRS PT2522C-4 sealed back planar tweeter is designed to deliver high efficiency with extremely smooth response. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm that is driven by 6 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and low distortion. The linear 3.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off. In addition, the low profile sealed rear chamber isolates the rear side of the diaphragm for simple installation into conventional enclosures. The PT2522C-4 is a perfect choice for use as a drop in replacement in existing systems or for use in new designs where low distortion and accurate response is needed.

        Show more

        Specifications

        Article number
        PT2522C-4
        EAN
        0848864061221
        Tweeter Type
        Planar
        Power Handling (RMS)
        20 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        1,800 to 20,000 Hz
        DC Resistance (Re)
        3.4 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Total Q (Qts)
        4.46
        Overall Outside Diameter
        3.5" x 2.66"
        Cutout Diameter
        2.87" x 2.3"
        Depth
        0.70"

        Show more

        Reviews

        2 reviews
        Review this product
        4 of 5
        Good planar tweeter but not easy.. Once you get everything sorted it sounds just as good as one would expect from good planar tweeter - solid, precise and fast response, sound full of detail and negligible distortion. I've got quite a bit of experience with various tweeters and was a bit sceptic about these "imports" at first. Luckily, it keeps proving itself. However, these are only sold without mounting plate, and optional plate for extra money...

        Show more

        By Marian on 18 June 2023
        5 of 5
        -
        By Stefan on 28 February 2023
