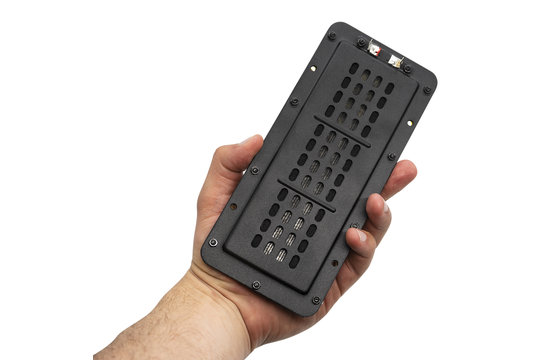

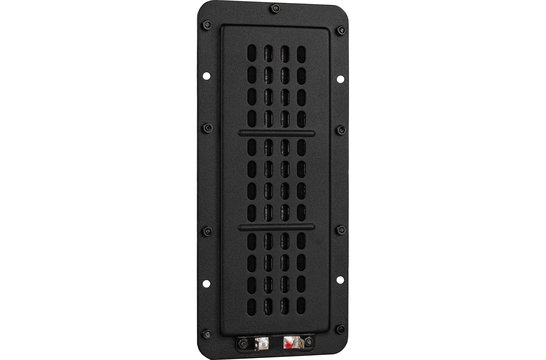

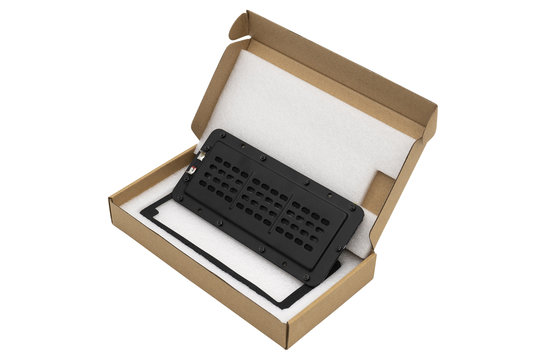

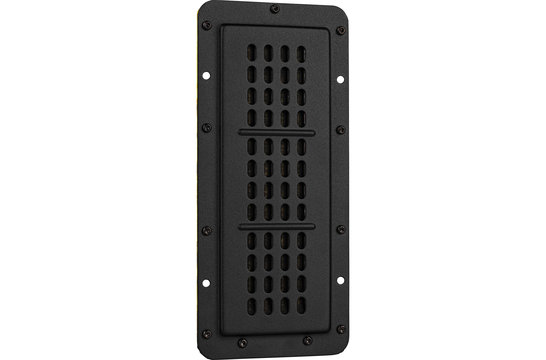

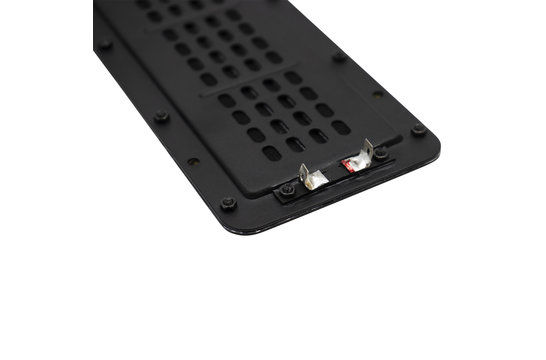

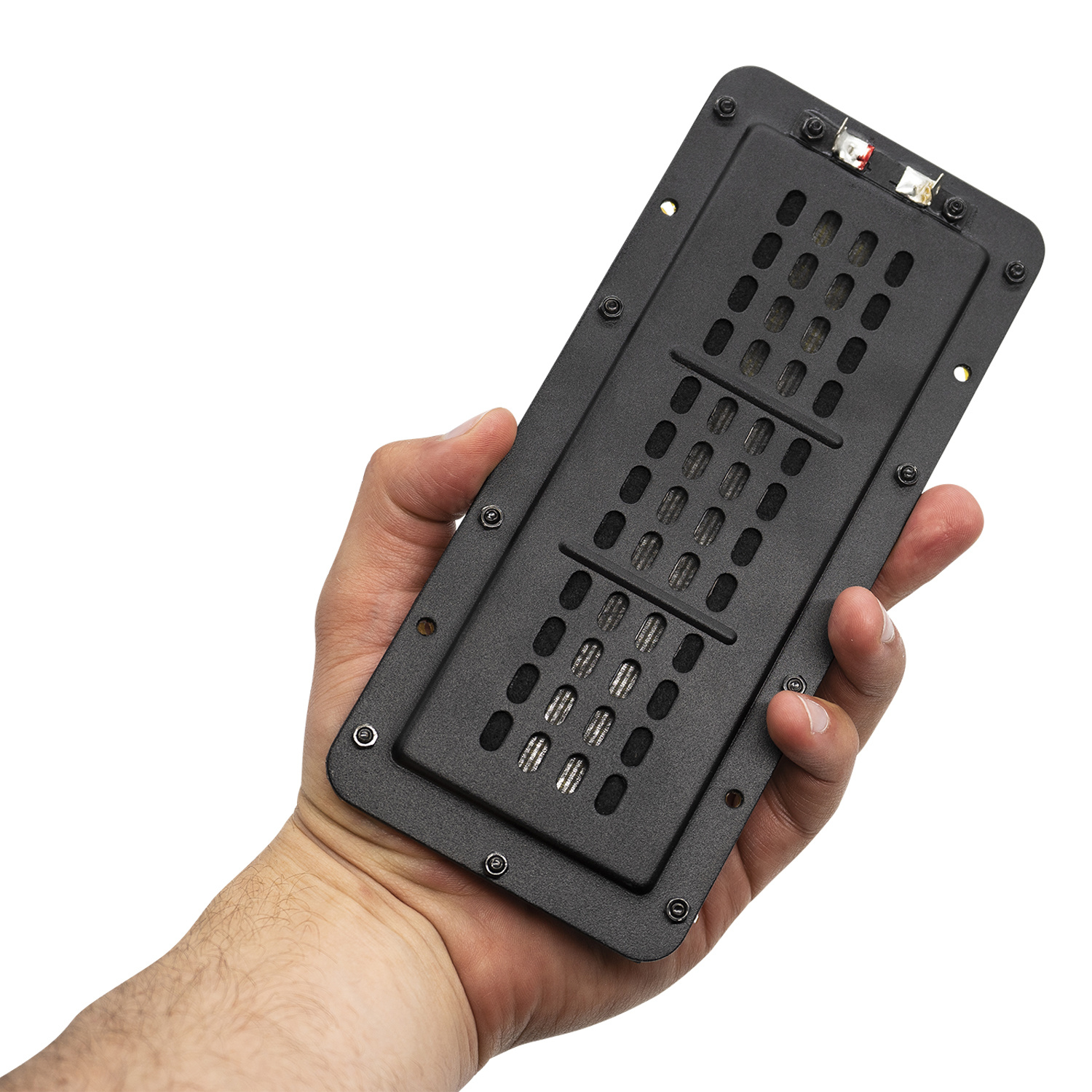

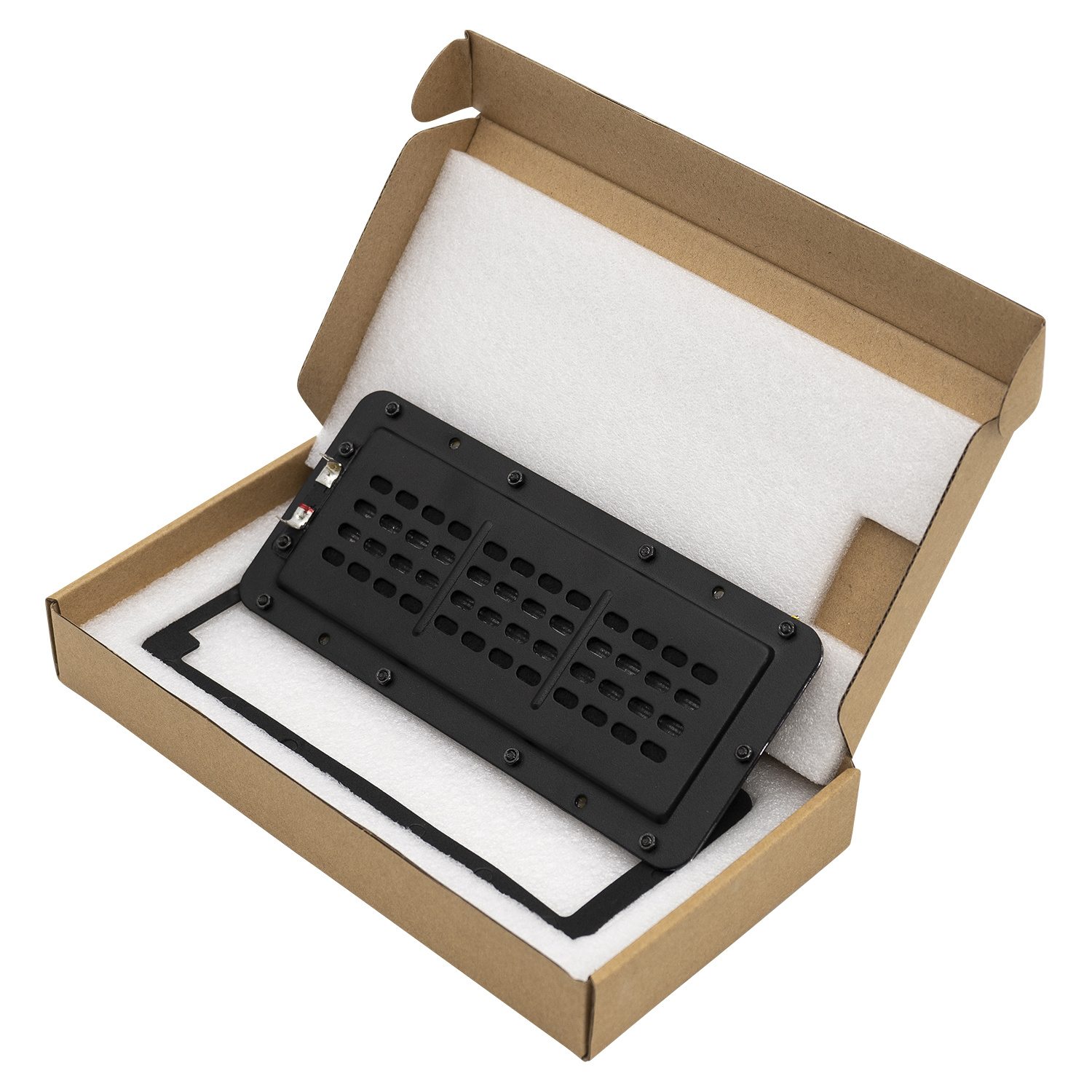

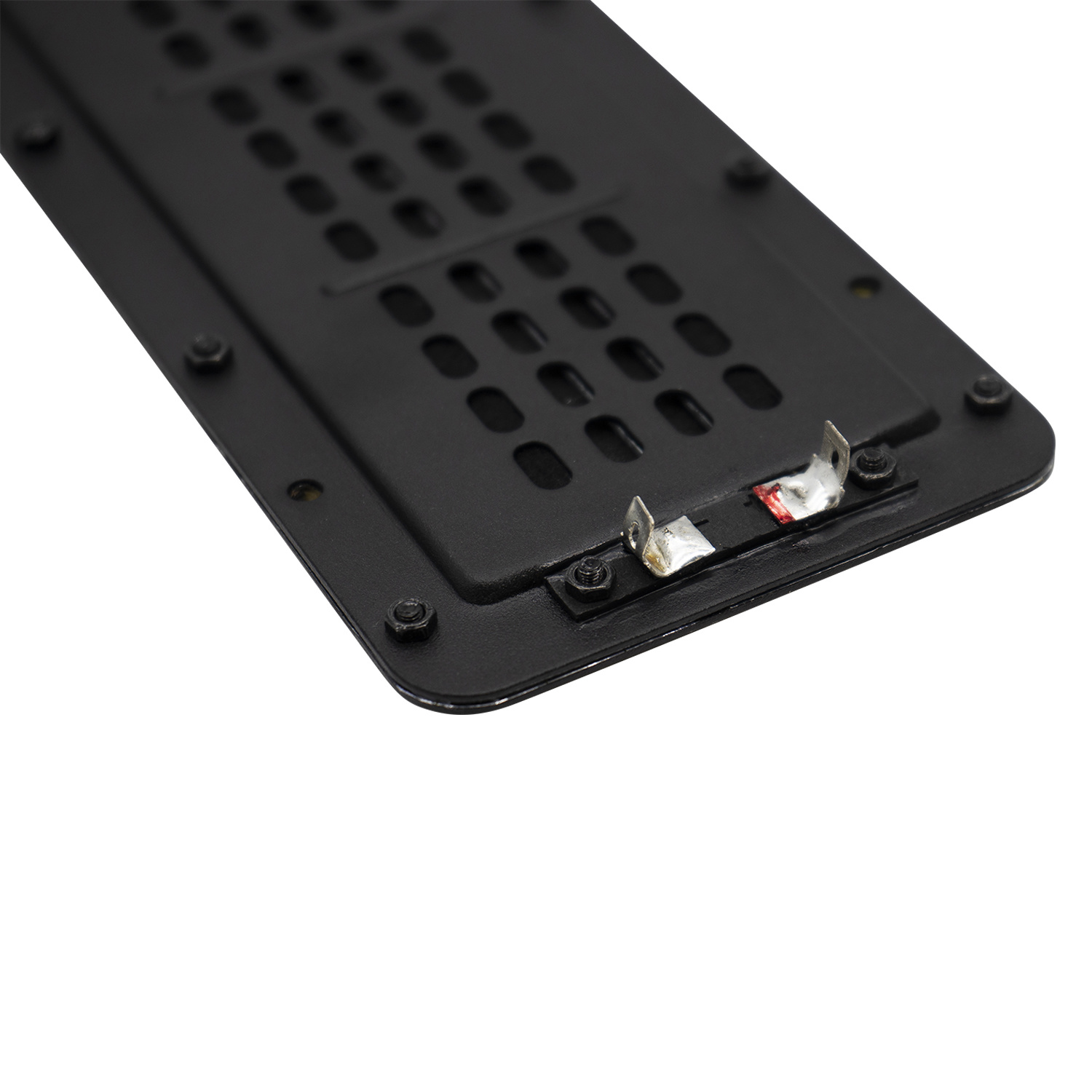

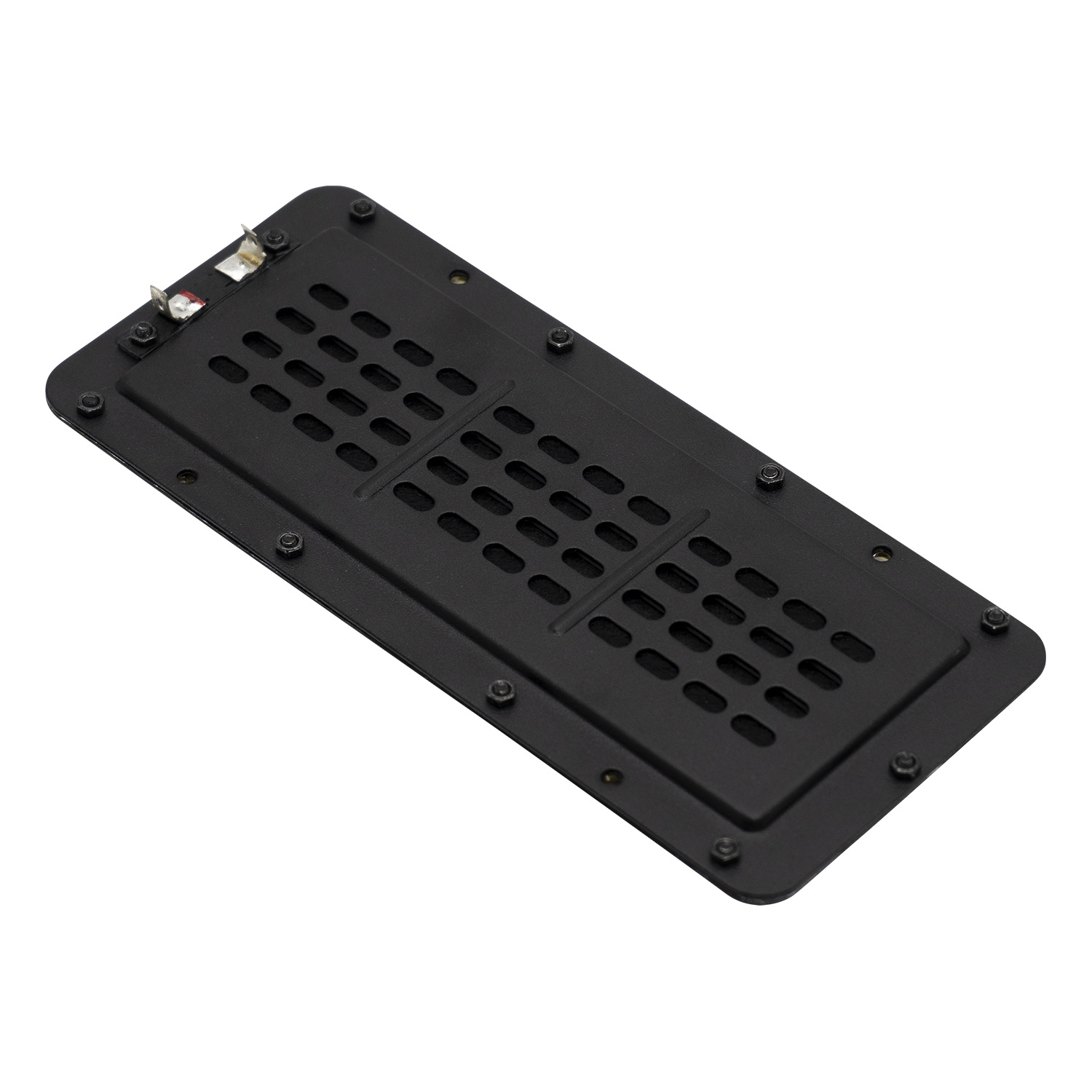

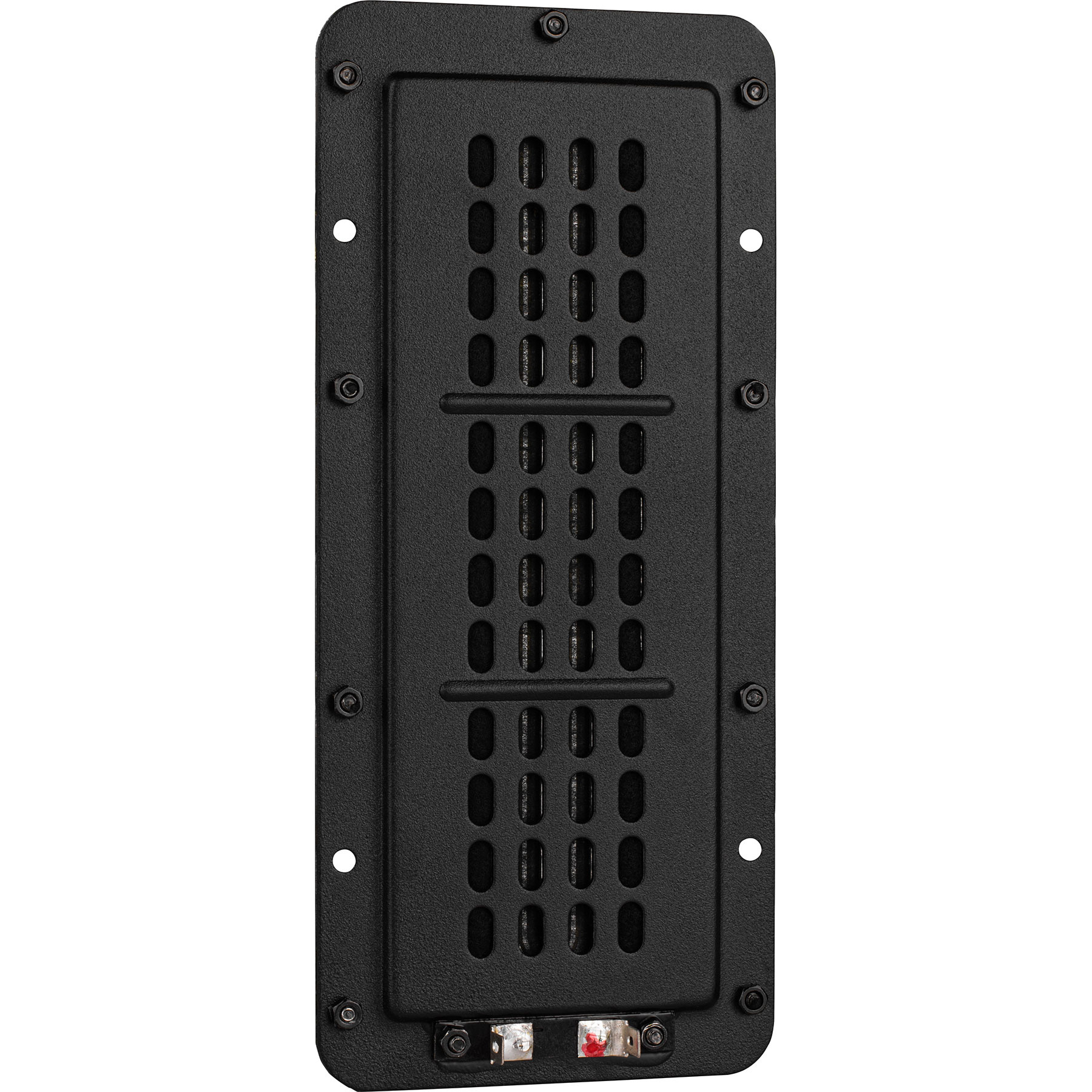

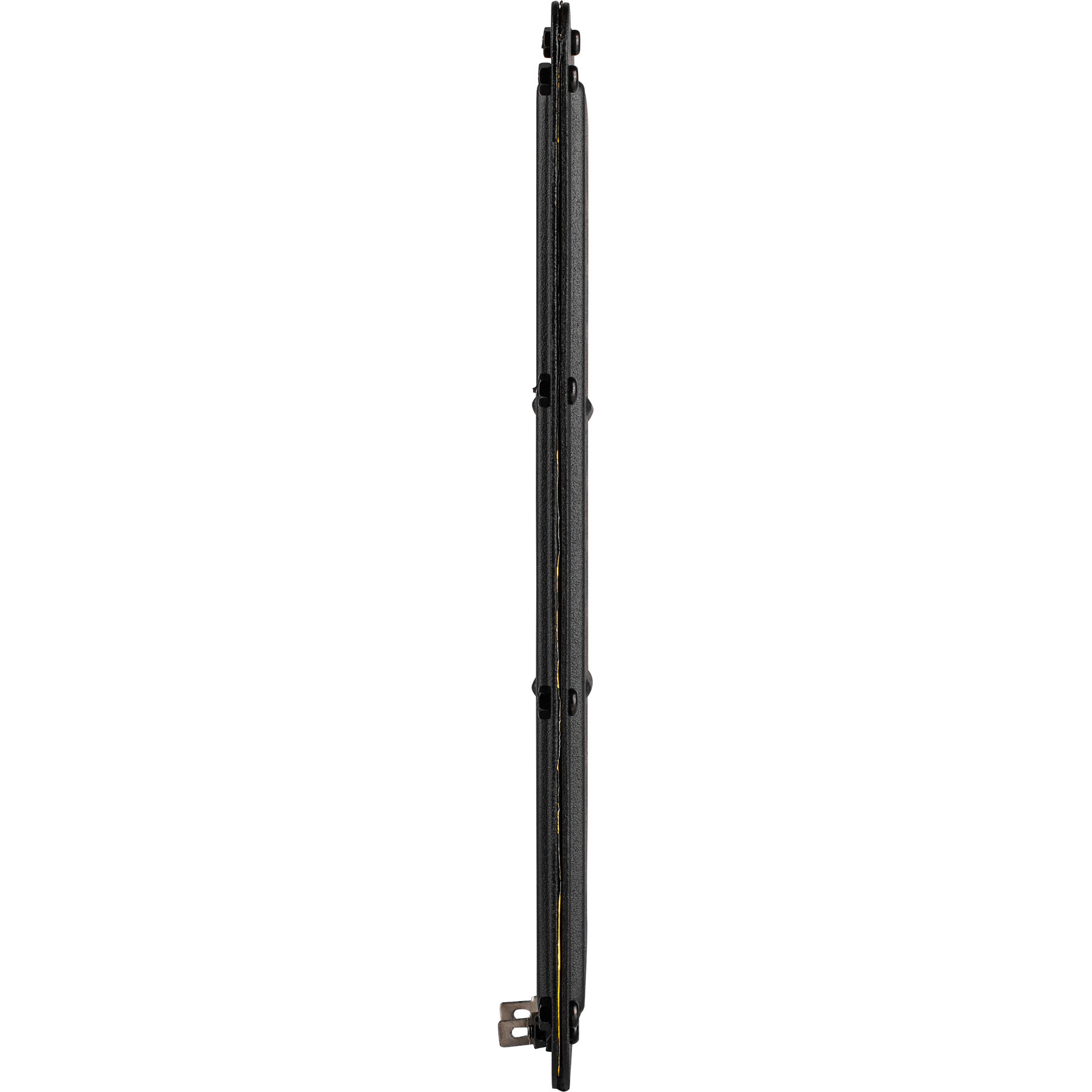

        PT6825-8 Planar Mid/Tweeter

        GRS PT6825-8 Planar Mid/Tweeter

        €89,95

        8 In stock

        GRS PT6825-8 Planar Mid/Tweeter

        5 reviews
        5 from 5
        5 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: GRS
        € 74,34€ 89,95 8 In stock
        • -5% Purchase 4 for only € 85,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description GRS PT6825-8 Planar Mid/Tweeter

        Capable of delivering extremely wide bandwidth with low distortion, the GRS PT6825-8 open back planar driver is designed to deliver natural midrange response while remaining accurate to the highest frequencies. With an extremely lightweight diaphragm and a neodymium motor system, this driver is capable of excellent transient response with amazing dynamics. The open back construction produces true dipole radiation which is ideal for use in open baffle designs.



        Highlights

        • Extremely low mass diaphragm provides excellent transient response and accuracy
        • Large diaphragm produces high efficiency with incredible dynamics
        • Remarkably wide bandwidth for controlled transition to woofer and tweeter drivers
        • Open back delivers true dipole radiation for use in open baffle designs
        • Linear impedance simplifies crossover design
        • Shallow mounting depth for use in low profile designs



        Product Details

        GRS PT6825-8 8" Planar Mid/Tweeter 8 Ohm



        With the ability to provide low distortion output from 500-20,000 Hz, the GRS PT6828-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement in many existing systems. Thanks to a lightweight damped polyimide diaphragm driven by 30 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.4 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.

        Show more

        Specifications

        Article number
        PT6825-8
        EAN
        0848864061238
        Tweeter Type
        Planar
        Power Handling (RMS)
        35 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Frequency Response
        250 to 20,000 Hz
        DC Resistance (Re)
        6.4 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Total Q (Qts)
        2.06
        Overall Outside Diameter
        7.87" x 3.5"
        Cutout Diameter
        6.89" x 2.61"

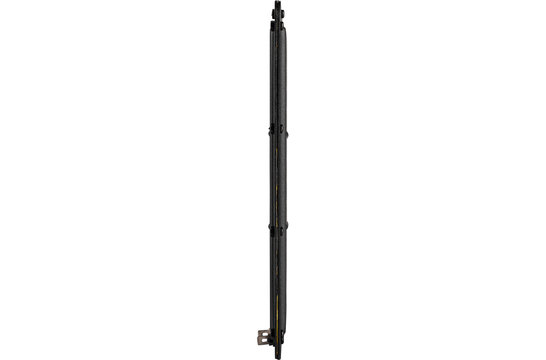

        Depth
        0.37"

        Show more

        5 of 5
        my new product power and loving it
        By zulkifly on 30 January 2024
        5 of 5
        Dit is een uitstekende tweeter. Ik gebruik ze in een dipool luidspreker.
        By Marinus on 18 June 2023
