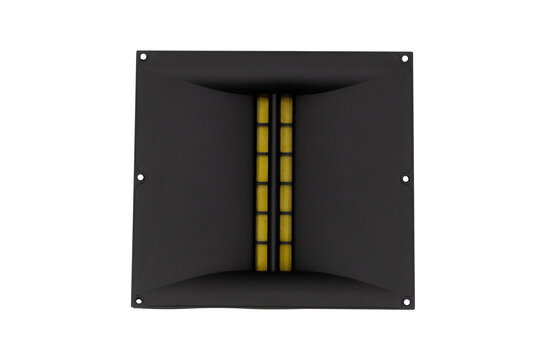

HiVi RT2H-A Isodynamic Planar Horn Tweeter

€89,95

10+ In stock

Add to cart

HiVi RT2H-A Isodynamic Planar Horn Tweeter

5 reviews

Brand: HiVi

Show all Horn/ waveguide tweeter

€ 89,⁹⁵ 10+ In stock

We ship to United States of America
Ordered now, shipped on Monday
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description HiVi RT2H-A Isodynamic Planar Horn Tweeter

The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors. The conductors cover about 90% of the whole vibrating area.

Highlights

Nearly weightless Kapton diaphragm for incredible transient response
Semi-horn loaded faceplate for improved efficiency
Large diaphragm can accommodate crossovers as low as 3,000 Hz

Product details

HiVi RT2H-A Planar Isodynamic Tweeter

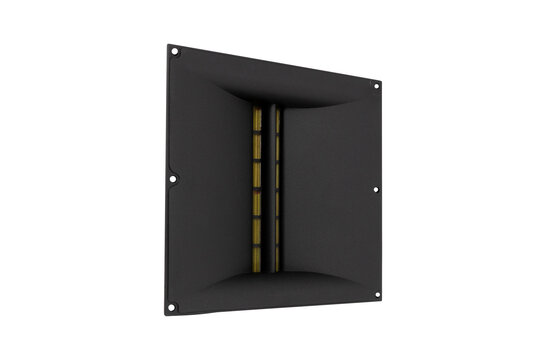

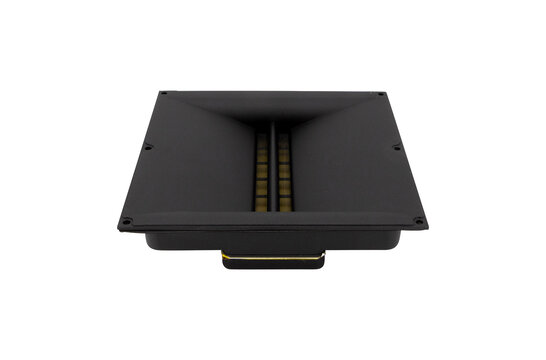

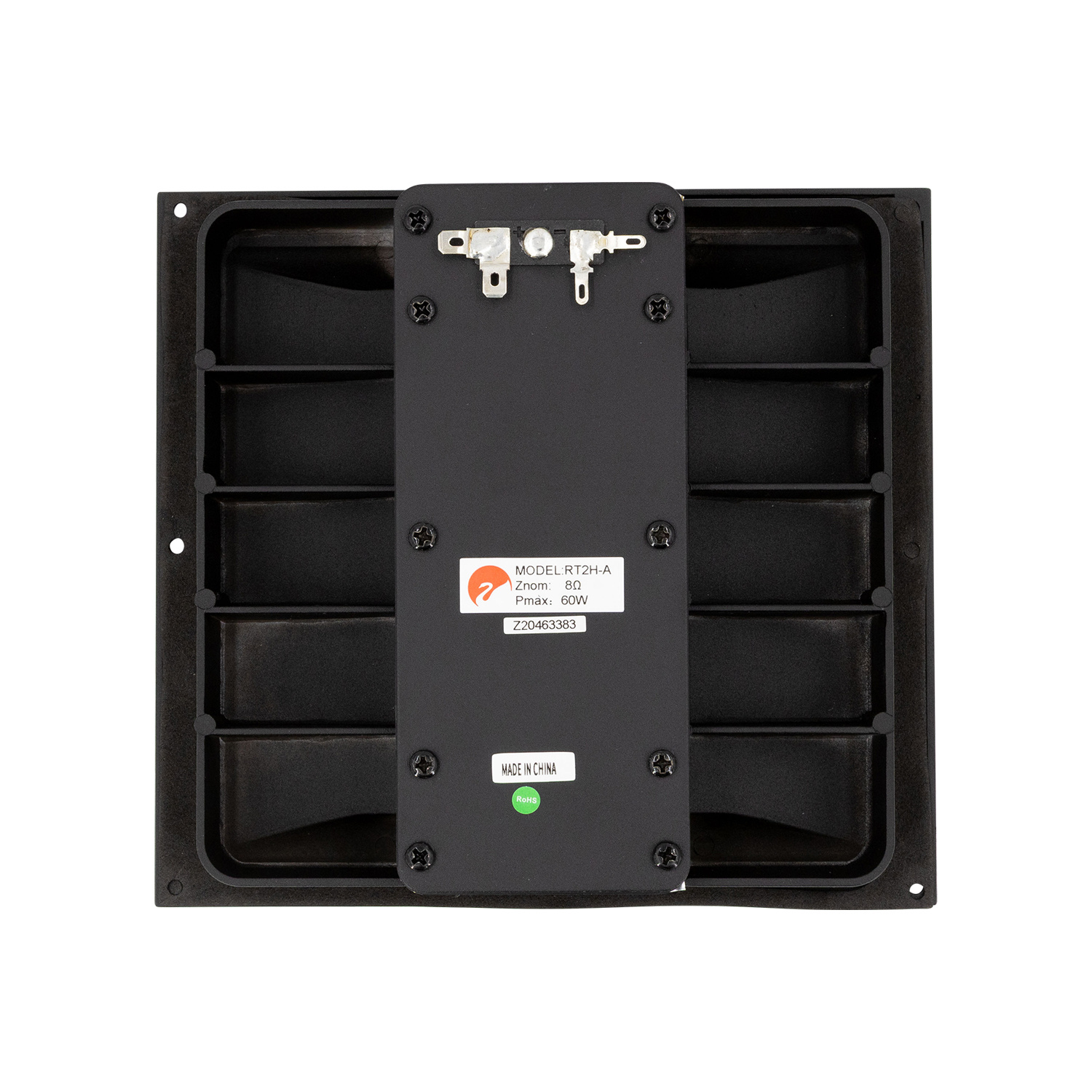

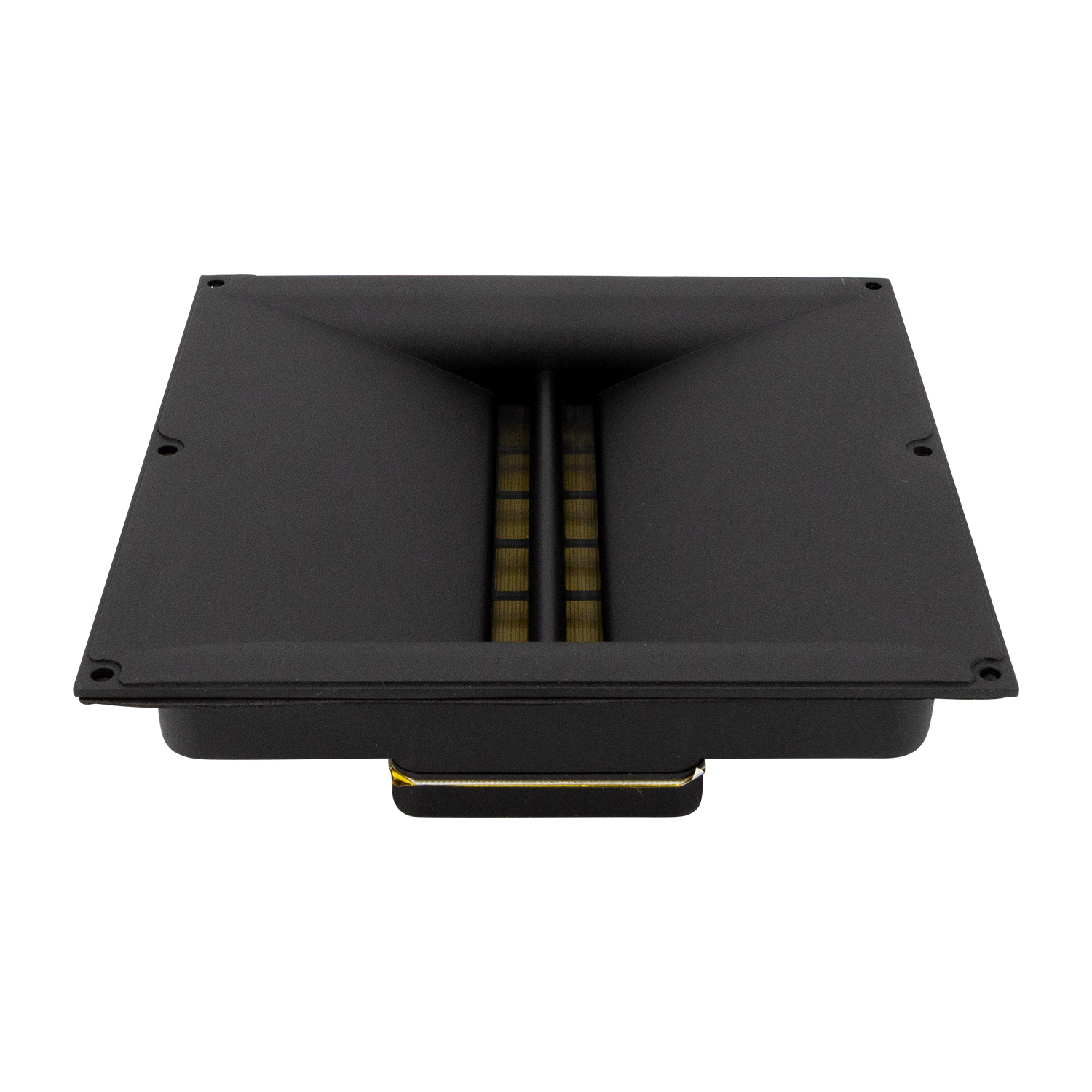

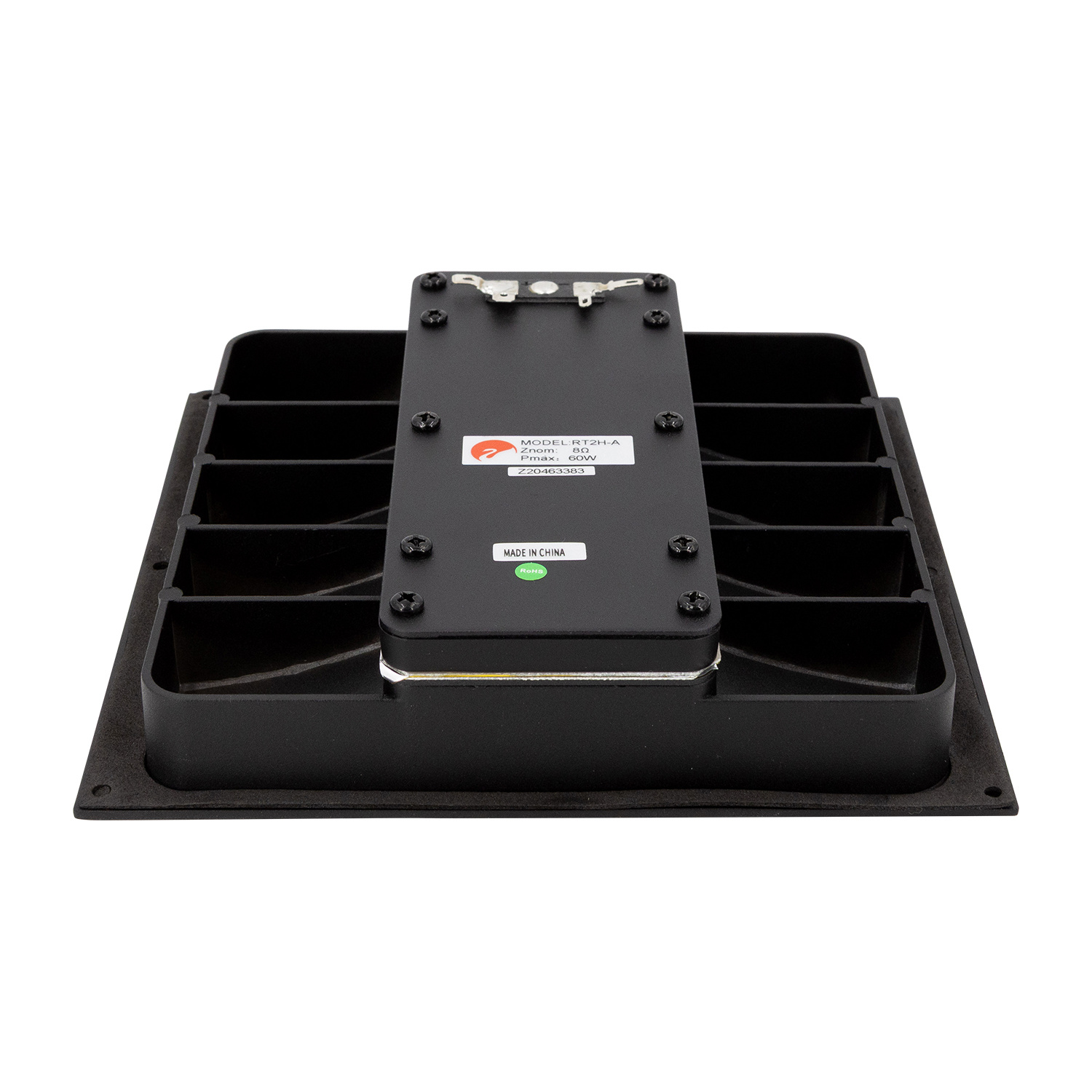

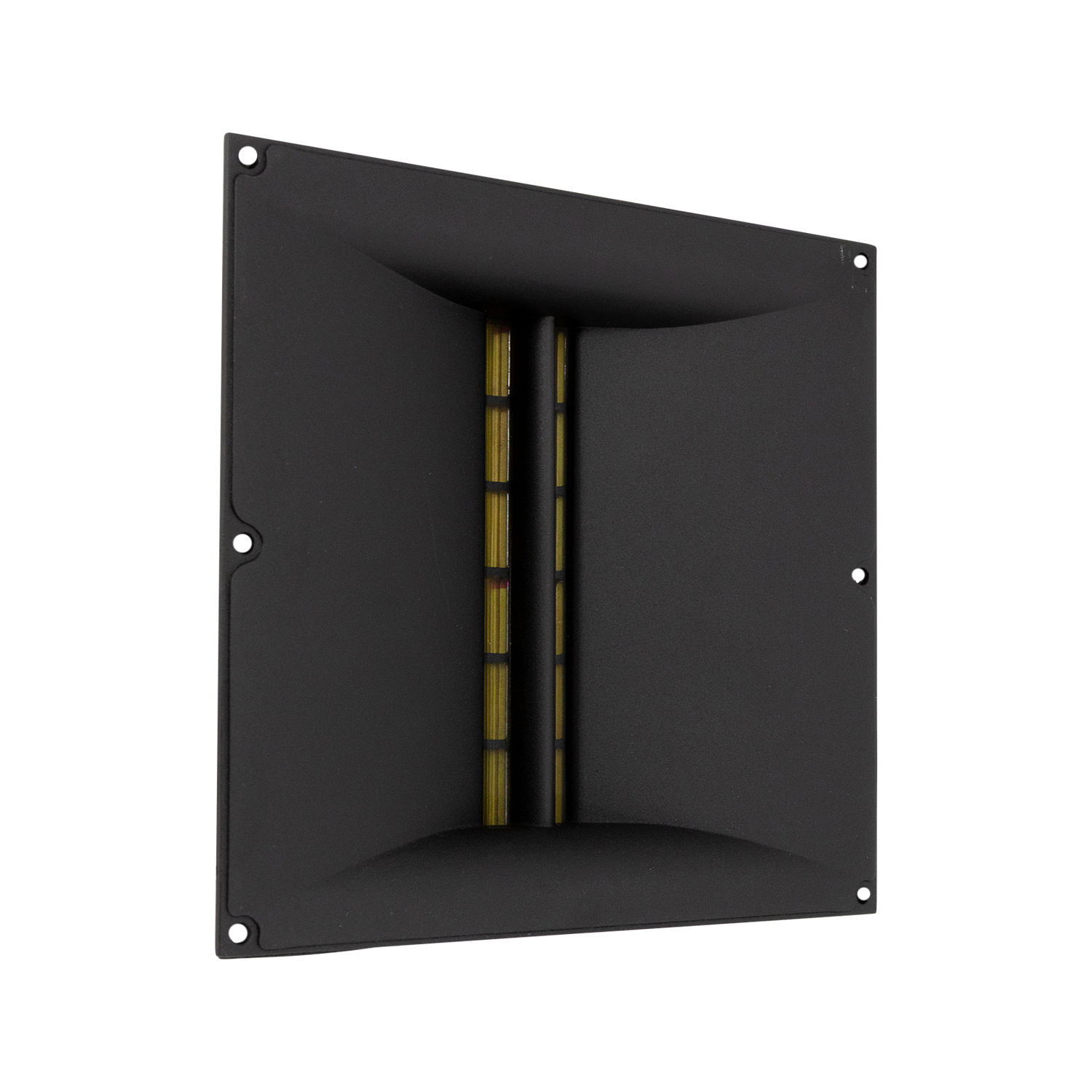

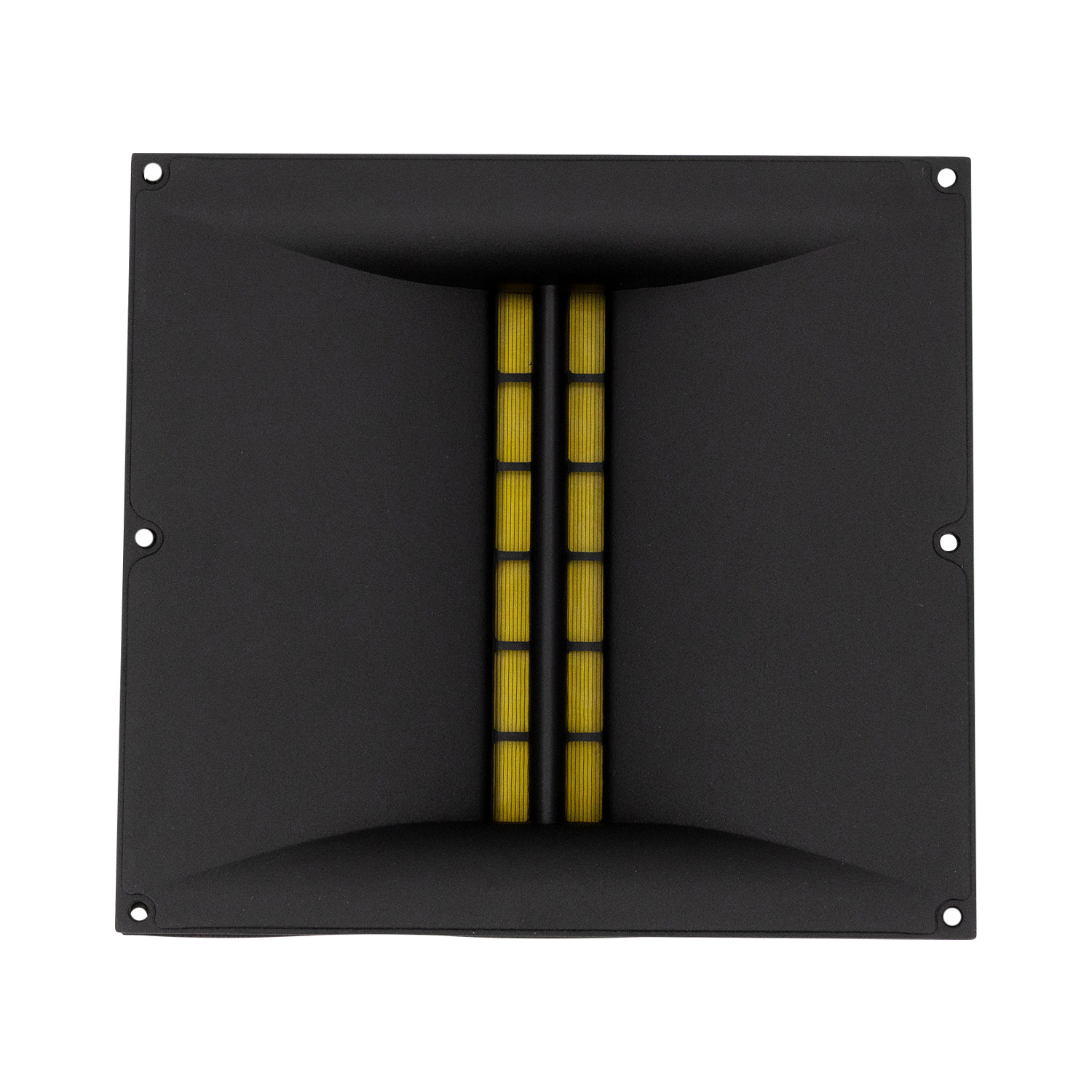

Why Isodynamic? Contrary to a conventional dynamic driver, these transducers have a driving force distributed evenly over the whole area of their vibrating elements. The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors. The conductors cover about 90% of the whole vibrating area. The membrane assembly is placed precisely between two rows of Neodymium and Barium Ferrite bar magnets. A larger membrane area provides higher power handling and substantially extended low-end cut-off frequency. The aluminum mounting flange, with flared waveguide, controls the frequency response and directivity of the tweeter. These tweeters are magnetically shielded and are extremely flat with a depth only 27mm including the mounting flange.

Specifications

Article number: RT2H-A
EAN: 0844632021787
Cone / Dome Diameter: 1.06'' W x 4.61'' H
Power Handling (RMS): 30 Watts
Impedance (Z): 8 Ω
Sensitivity (SPL at 1m / 2.83V): 94 dB
Frequency Response: 1,700 to 25,000 Hz
Overall Outside Diameter: 7.13" x 7.13"
Cutout Diameter: 6.13" x 6.13"
Depth: 1.63"
Recommended cut frequency: 3,000 Hz with 2nd order

Reviews

5 reviews

Review this product

2 of 5

Two out of three were damaged from the factory, extremely poor quality control. The service from sound imports was however, excellent, they solve the problem immediately!! Thanks!!!!

By Jake on 19 January 2025

5 of 5

Vorzügliche Hochtöner, rasant schnell und sehr sicher verpackt geliefert. Danke!

By Michael on 25 December 2024
