Hypex FA501 FusionAmp Plate Amplifier

€499,95

10 In stock

Add to cart

Hypex FA501 FusionAmp Plate Amplifier

8 reviews

Brand: Hypex

Show all Plate amplifiers

1 x 500 W

€ 499,⁹⁵ 10 In stock

We ship to United States of America
Ordered now, shipped today
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

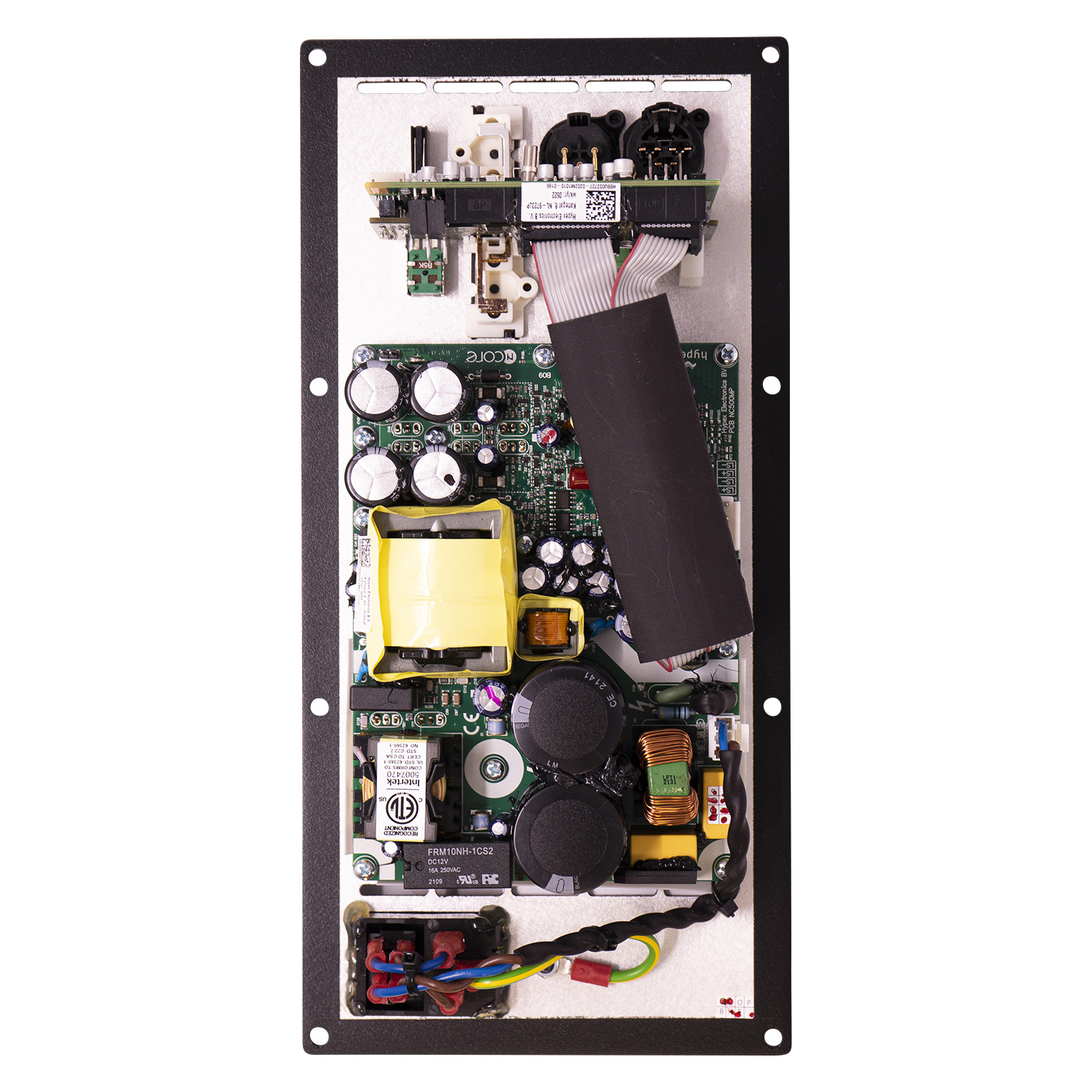

Product description Hypex FA501 FusionAmp Plate Amplifier

The FA501 500 Watt FusionAmp is a DSP controlled plate amplifier. It can be the basis of a powerful active subwoofer or an active one-way monitor.

Highlights

Ncore based amplifier technology
DSP controlled
All-in-one Hypex Solution
Neutral and transparent reproduction
Wide range of analog and digital inputs

Product details

Hypex FA501 500 Watt FusionAmp

Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.

The FA501 has one powerful 500 watt Ncore amplifiers. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.

To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software at Hypex.

Features

15 biquads per amplifier
Three selectable presets for filters
Source selection
Signal detect
Auto shutdown
BTL capable
Clip protect
Thermal protect
Filter protection

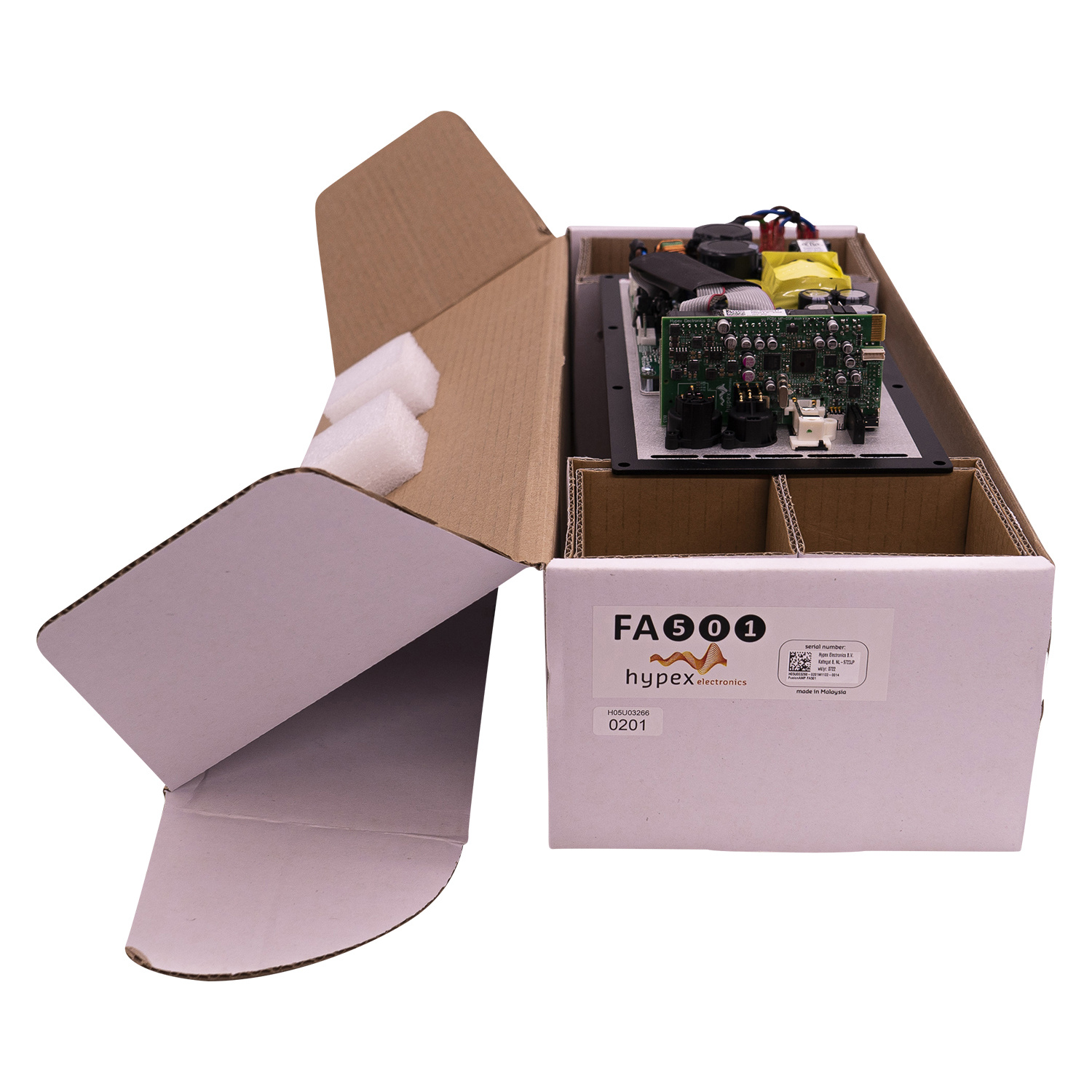

What’s in the box?

FA501 FusioAmp
A printed copy of the user guide
Speaker connection cables
EU (or UK) C13 Power cable

Specifications

Article number: FA501
EAN: 0691046948144
Rated power output: 1 x 500 watts at 4 ohms
1 x 270 watts at 8 ohms
1 x 400 watts at 2 ohms
Rated power output bridged: -
Minimum load: 2 ohms
Signal-to-noise ratio (SNR): 124 dB
Distortion: 0.0020 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Distortion bridged: -
Amplifier classification: Class D
Circuit topology: Ncore®
Efficiency: 92 % at full power
Frequency response: 10 - 50,000 Hz
Input impedance: 54k ohms (unbalanced RCA)
44k ohms (balanced XLR DM)
2.2m ohms (balanced XLR CM)
Input sensitivity: 2.35 Vrms for rated power output
Auto turn-on sensitivity: -
DSP
DAC
Maximum sampling rate: 192 kHz
96 kHz (optical)
Speaker output channels: 1
Analog in/out: 1/1
S/PDIF in/out: - / -
AES/EBU in/out: - / -
Coaxial in/out: - / -
RCA in/out: 1/ -
XLR in/out: 1/1
Jack in/out: - / -
USB connection: configure port only
Network connection: -
Bluetooth: -
Subwoofer pre-out: -
Auto on/off
Remote control: Sold separately
App control: -
Equalizer (EQ) adjustment
Equalizer (EQ) profiles
Phase control
Crossover frequency adjustment
Presets
Control software: Hypex Filter Design
Windows/Mac compatible: / -
Power requirements: 200-240 VAC ±10%
Power inlet connector: IEC C14
Standby power consumption: -
Current limit: 27 A
Under/over voltage protection
Dimensions (H x W x D): 280 x 135 x 55 mm
Cutout dimensions: 256 x 111 mm
