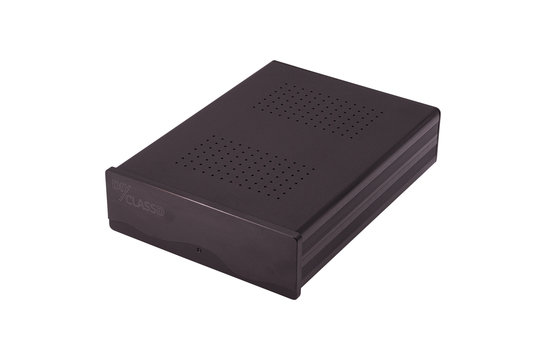

Hypex NC400 Mono Kit amplifier kit

€699,95

Out of stock

Hypex NC400 Mono Kit amplifier kit

14 reviews

Brand: Hypex

Show all DIY kits

1 x 400 W

€ 699,⁹⁵ Out of stock

We ship to United States of America
Ordered now, shipped today
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Hypex NC400 Mono amplifier kit

Build your own high-end class D monoblock amplifier based on the Ncore technology from Hypex.

Highlights

All-in-one monoblock kit
Easy assembly and no soldering required
Unprecedentedly low distortion over frequency and power range
Neutral and transparent reproduction
Plenty of power
Compact design

Product details

Hypex NC400 1x400W Ncore Monoblock Kit

The Ncore technology from Hypex is one the best amplifier technologies available. This class D technology provides extreme high-level performance on any playback level, regardless of load. The NC400 stands among the top of our amplifier module technology.

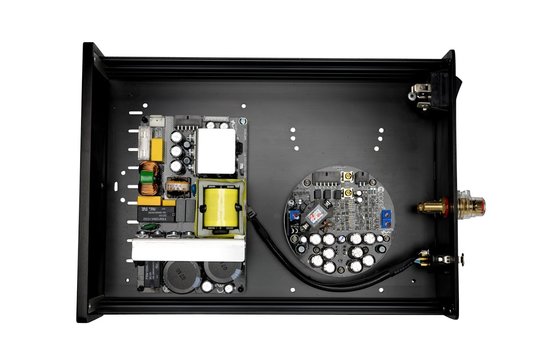

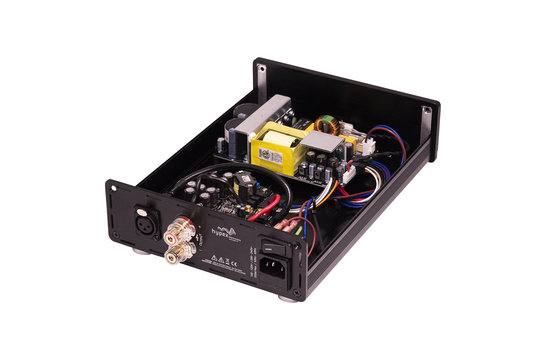

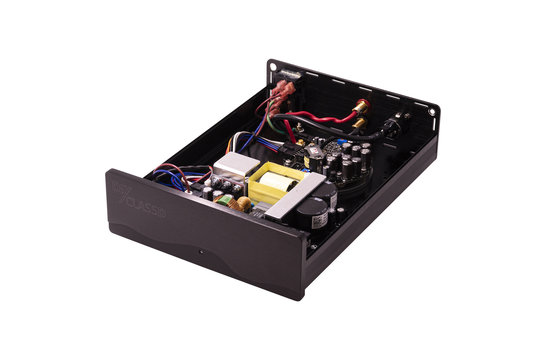

Besides impeccable performance, this kit features everything you need to build your own Ncore monoblock amplifier. The main parts are the NC400 amplifier module, SMPS600N400 switch mode power supply and the DIY Monoblock Case. The amplifier module and power supply combination enable the best performance available from the Ncore technology. The black anodized case provides good heat dissipation and a compact design.

Along with the main parts, everything else you need to build a powerful high-quality monoblock amplifier is included. Assembly only requires proper positioning, around 25 bolts to be tightened and some connectors to be clicked. Anybody comfortable with a screwdriver can build one of the best amplifiers available.

Check out this Hypex UcD400 Stereo Kit and Hypex UcD180 Stereo Kit for stereo amplifier kits based on the UcD® technology from Hypex.

What’s In The Box

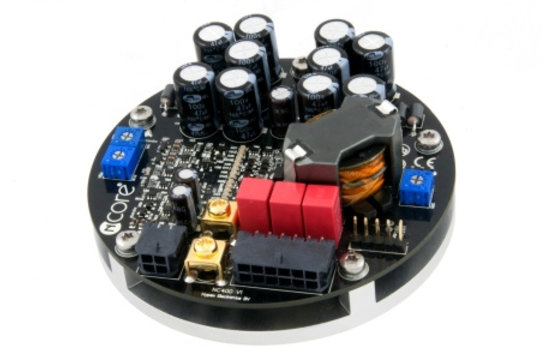

NC400 amplifier module

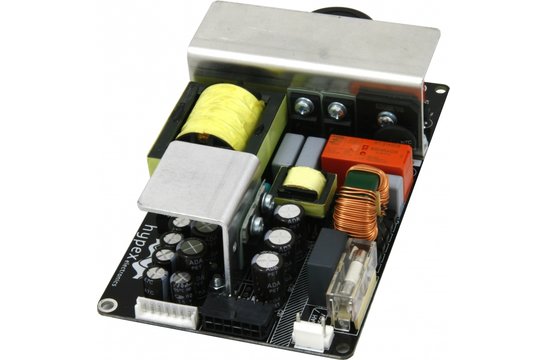

SMPS600N400 switch mode power supply

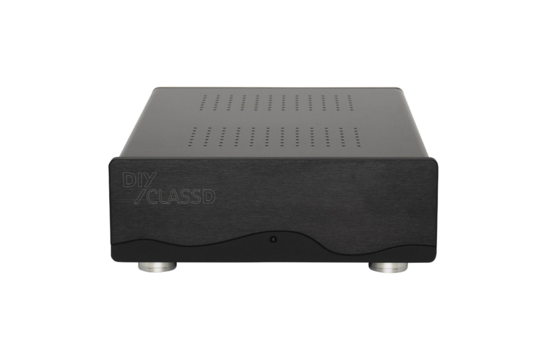

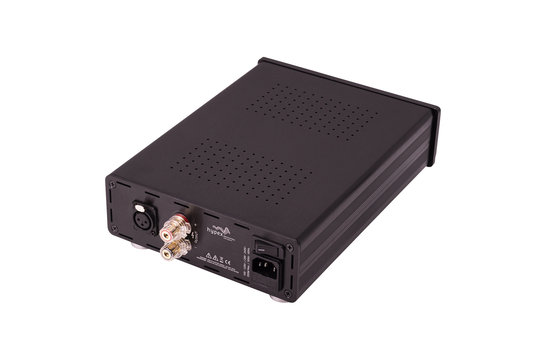

DIY Monoblock Case
Signal cable with XLR female chassis
All internal cables
IEC C14 power connector (including fuse)
On/Off Switch

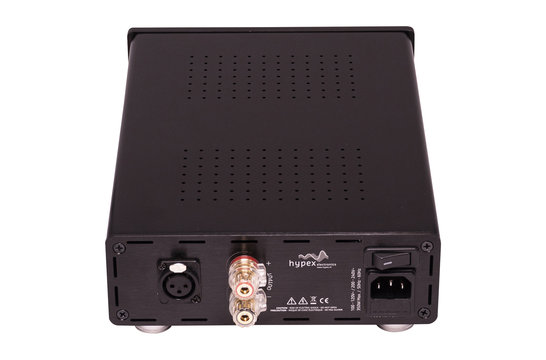

Binding posts
All needed bolts

FAQ

Q: I have a stereo system. Do I need two of these?

A: A monoblock is an amplifier that only has one channel. A stereo setup requires two channels; you would need two monoblock amplifiers for a stereo setup. Compared to a stereo amplifier, this might seem cumbersome. However, a monoblock features a complete power supply for one channel. This allows for the best performance.

Q: Is there a stereo kit available?

A: There is no complete stereo kit for the NC400 available. Combining two NC400 amplifier modules, a SMPS1200A400 power supply and the SMPS1200A400 onto 2x NC400 Connection kit make a NC400 stereo amplifier. This is a bit more of a DIY approach, as you would need additional components (like connectors, binding posts and a case), but it makes a great project! For complete Hypex stereo kits, check out this Hypex UcD400 Stereo Kit and Hypex UcD180 Stereo Kit.

Specifications

Article number

NC400 Mono Kit

EAN

0691046948021

Rated power output (RMS)

1 x 580 watts at 2 ohms

1 x 400 watts at 4 ohms

1 x 200 watts at 8 ohms

Bridged power output (RMS)

Minimum load

2 ohms

Signal-to-noise ratio (SNR)

125 dB

Distortion

0.0007 THD+N (20 Hz - 20 kHz, 4 ohms)

Distortion bridged

Efficiency

93 %

Frequency response

0 Hz - 50 kHz

Input impedance

104k ohms (DM), 1.5M ohms (CM)

Input sensitivity

2.05 V

Auto turn-on sensitivity

DSP

DAC

Maximum sampling rate

Circuit Topology

Ncore®

Amplifier classification

Class D

Speaker output channels

Subwoofer output channel

Analog in/out

-/-

Optical S/PDIF in/out

-/-

Coaxial in/out

-/-

RCA in/out

-/-

AUX in/out

-/-

Bus in/out

-/-

XLR in/out

1/-

USB

Memory card slot

Network connection

Headphone jack

Subwoofer pre-out

Bluetooth

NFC

Wi-Fi

Banana plug compatible

Remote control

App control

Auto turn-on

Accepted file formats

Equalizer (EQ) adjustment

Equalizer (EQ) profiles

Multi zone/room

Crossover frequency adjustment

Bridge mode

Power requirements

110/240 VAC, 50Hz/60Hz

Power inlet connector

IEC C13

Power consumption

Stand-by power consumption

Dimensions (D x W x H)

280 x 200 x 79 mm

Case material

Aluminum
