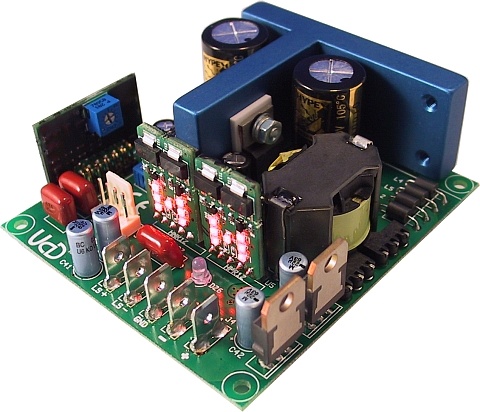

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module

€129,95

8 expected on 06-06-2025

Add to cart

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module

15 reviews

Brand: Hypex

Show all Amplifier modules

1 x 400 W

€ 129,⁹⁵ Out of stock8 expected on 06-06-2025

Backorder

We ship to United States of America
Back in stock soon
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Hypex UcD400HG HxR UcD® Amplifier module

The UcD400HG HxR amplifier module is an entry level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD400HG HxR comes with the required UcD Signal Cable.

Highlights

Flat, fully load-independent frequency
Low output impedance
Very low, frequency-independent THD
Ultra low noise due to HxR regulators

Product details

Hypex UcD400HG HxR 1x400W Universal Class D Amplifier Module

The UcD400HG HxR amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.

The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.

Features

POP-free start and stop control
Differential audio input
Overcurrent and over voltage protection
No compromise components
LM4562 buffer OpAmp

What’s In The Box

UcD400HG HxR amplifier module
Mounting set UcD

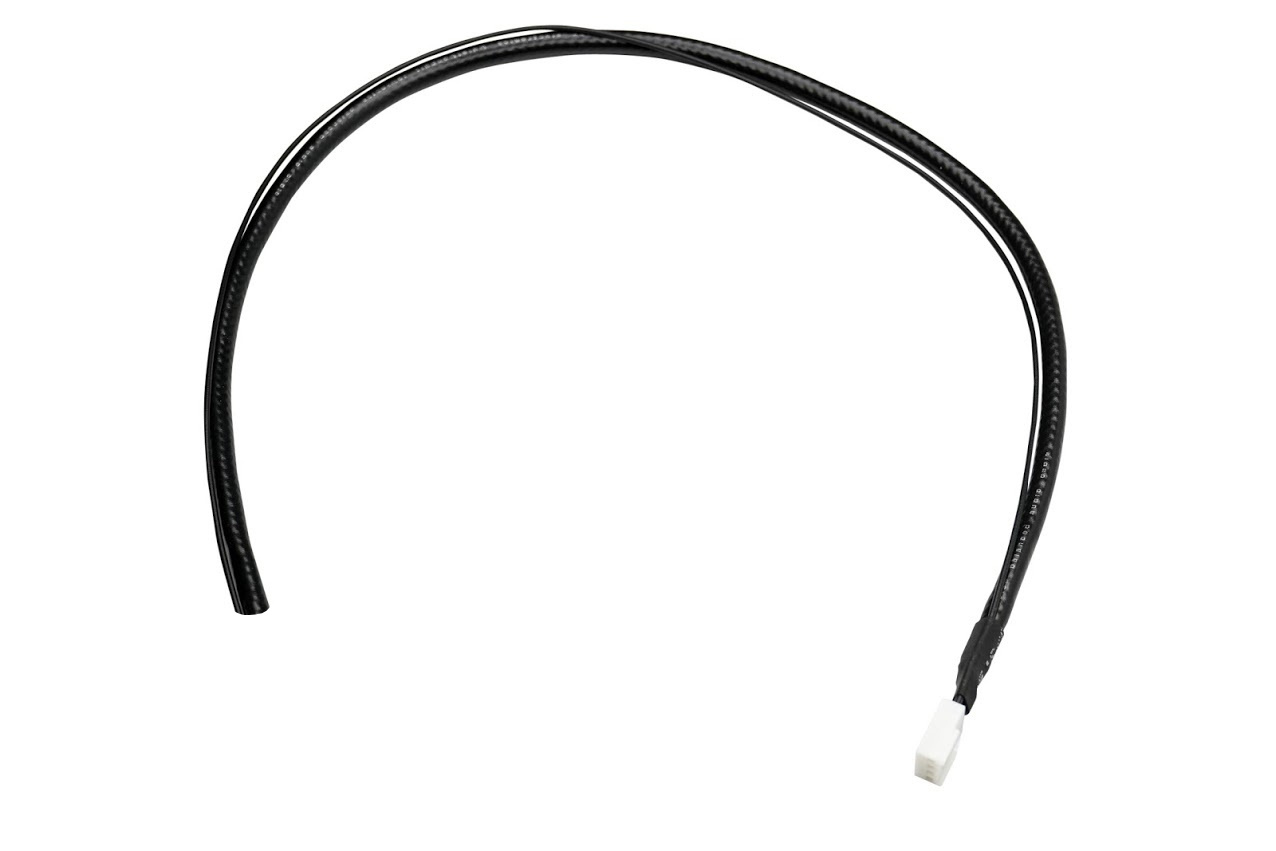

UcD Signal Cable
Manual

The UcD amplifier module only needs the proper power supply to start with their efficient, ultra clean power delivery. We recommend the SMPS400A400 as power supply for the UcD400HG HxR amplifier module.

Specifications

Article number: UcD400HG HxR
EAN: 0691046948069
Rated power output: 400 watts at 4 ohms
240 watts at 8 ohms
Minimum load: 1 ohm
Efficiency: 92 %
Signal-to-noise ratio (SNR): -
Distortion: 0.01 % THD+N (20-20,000 Hz at 0.5 x rated power output)
Frequency response: 10 - 50,000 Hz
Gain: 26 dB
Input sensitivity: -
Input impedance: 100k ohms
Amplifier Classification: Class D
Circuit Topology: UcD®
Speaker output channels: 1
Input connection type: 4 pin PCB connector
Speaker output connection type: Crimp/solder connection tabs
DSP function: -
Bluetooth: -
EQ Adjustment: -
Power Requirements: 45 - 67 VDC (symmetric supply +/-)
Power inlet connector: Crimp/solder connection tabs
Current limit: 20 A
Under/over voltage protection
Dimensions (L x W x H): 82 x 75 x 25 mm
Mounting hole diameter: -

Reviews

15 reviews

Review this product

5 of 5

By Johan on 10 November 2024

5 of 5

SoundImports is the best shop for me. Excellent all around products and service.

By Roberto on 28 October 2024

5 of 5

The service from sound imports is second to none! They definitely have my business!!

By Jake on 6 May 2024

5 of 5

werkt meteen na installatie.

By Cees on 9 December 2023

5 of 5

Exactly as described

By Michel on 21 December 2022

4 of 5

I built a 3 channel amp with 3 of these and 3 x SMPS400A400 modules. Great clean sound, lots of detail in the the upper midrange. Only downside is the case gets very hot, almost too hot to touch. I have decent sized heat sinks on the back of each and mounted in a decent sized aluminium case with ventilation. They have not shut down yet which is what they will do if the temp is too high but I wish I could get them cooler as it currently gets ho...

By Lee Matthews on 28 September 2022

5 of 5

top

By Kerkhofs Jean Pierre on 1 July 2022

5 of 5

Goede kwaliteit inclusief de kabels en hun afscherming. Dit model heeft niet alleen maar koelribben nodig om af te koelen. De PCB en de COIL hebben ook koeling nodig. Gebruik hiervoor ventilatoren met laag toerental, en het liefst meer dan eentje. Hoe meer Fan's, hoe lager het toerental voor dezelfde AIRFLOW. Het is een kleine uitvoering, en dat is dus waarom de warmte meer geconcentreerd is op een kleiner oppervlak.

By D.Vraets. on 29 January 2022

5 of 5

Excellent product and fast delivery. Thankyou.

By Rod C. on 21 March 2021

3 of 5

Prima product, echter het wordt nogal warm. (en dan bedoel ik niet het aluminium blok). Ik heb i.v.m. de lage behuizing een ventilator geplaatst.

By Jaap B. on 9 January 2021

5 of 5

These modules are pretty simple about installation and they sound amazing. Be confident on these!

By Roberto B. on 1 January 2021

5 of 5

very easy-to-install module, very good amplification and s/n ratio - great value-for-money - highly recommended
