        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil

        Intertechnik CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil

        €26,95

        2 In stock

        Add to cart

        Intertechnik CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Copper foil coils
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        € 22,27€ 26,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil
        CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil

        Product description Intertechnik CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG

        A high-quality 2.2 mH choke coil from I.T. Intertechnik with a resistance of 1.06 Ω.



        Highlights

        • Superior copper purity greater than 99.99%
        • Polycarbonate coil body withstanding temperatures from -90 to 135 degrees Celsius
        • Approximate 50 mm wire connection length and 9 mm tinning length
        • Inductance tolerance of -3% ensuring accurate performance



        Product details

        I.T. Intertechnik CO30/2.20/060 | 2,2 mH | 1,06 Ω | 5% | 23 AWG | Choke Coil



        Introducing the I.T. Intertechnik CO30/2.20/060, a top-tier choke coil specially designed for crossover components. This coil features a high inductance of 2.2 mH and a resistance of 1.06 Ω, making it perfect for high-performance audio systems. It is made with copper of exceptional purity, over 99.99%, promising excellent conductivity and superior performance. The coil body is made of durable polycarbonate that can endure temperatures ranging between -90 to 135 degrees Celsius. It also boasts a wire connection length of approximately 50 mm and a tinning length of 9 mm. With an inductance tolerance of -3%, you can trust this coil to deliver accurate and consistent performance. This 23 AWG coil is an excellent choice for those seeking precision and quality in their audio components.



        I.T. Intertechnik article code: 1500107

        Show more

        Specifications

        Article number
        CO30/2.20/060
        EAN
        8785256854257
        Coil type
        Copper foil coils
        Inductance
        2.2 mH
        DCR
        1.06 ohms
        Tolerance
        5%
        Wire diameter
        23 AWG

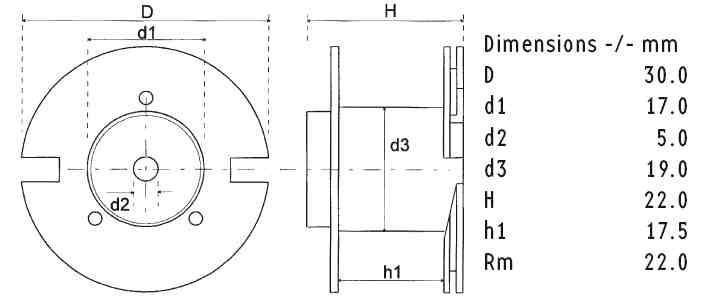

        Dimensions: Ø * H (mm)
        30 x 22

        Show more
