        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil

        Intertechnik DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil

        €65,45

        Out of stock

        Add to cart

        Intertechnik DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Copper foil coils
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        € 54,09€ 65,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil

        Product description Intertechnik DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG

        A top-notch 10mH Ferrobar Coil from I.T. Intertechnik, offering high conductivity and precision.



        Highlights

        • Highly pure copper with >99.99% purity
        • Constructed with durable ABS material for coil body
        • Consistent 5% inductance tolerance
        • Equipped with a Ferrobar Ferrite core for enhanced performance



        Product details

        I.T. Intertechnik DR56/10/140 | 10 mH | 0,371 Ω | 5% | 15 AWG | Ferrobar Coil

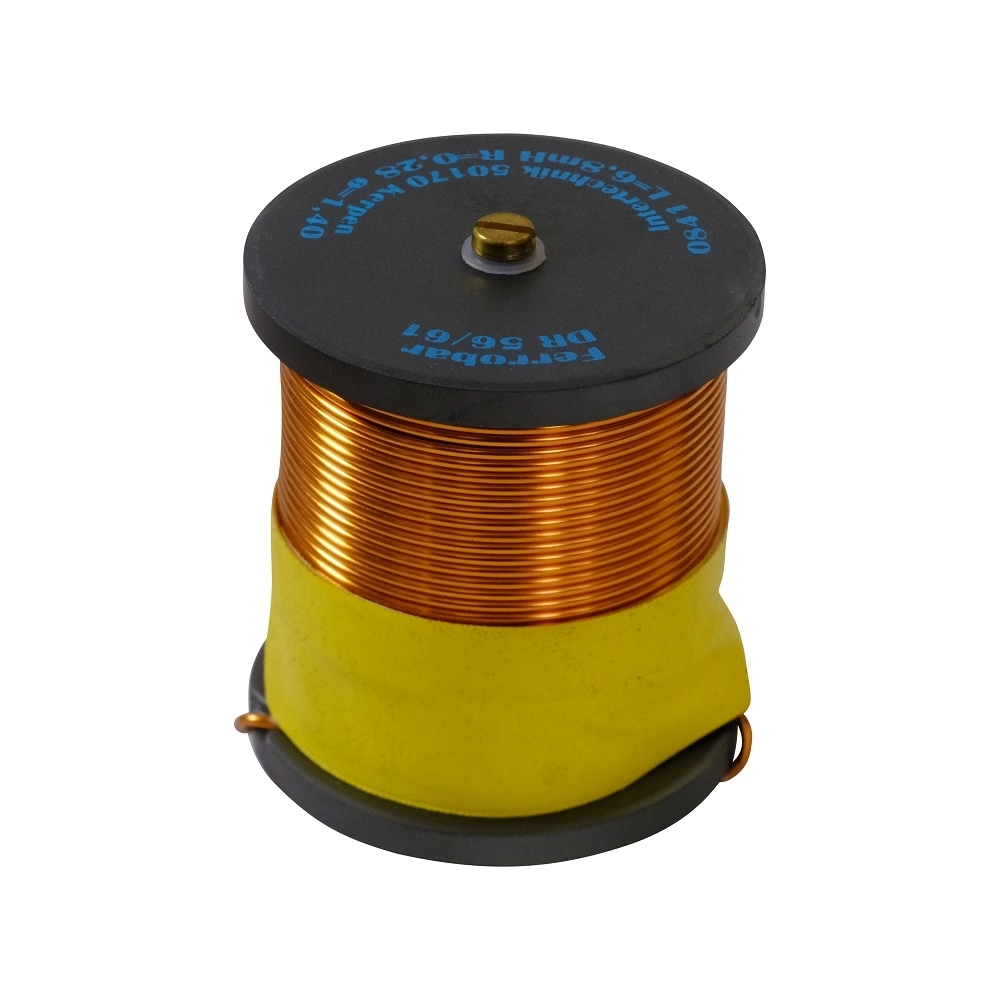

        This I.T. Intertechnik DR56/10/140 Ferrobar Coil is a top-tier product designed for high-performance audio applications. Made with copper of more than 99.99% purity, it guarantees excellent conductivity and signal transmission. The coil body is made from sturdy ABS material, ensuring durability and long-lasting performance. With a precise inductance tolerance of ±5%, it provides a consistent output, making it highly reliable. The coil also incorporates a Ferrobar Ferrite core, which further enhances its performance by reducing core losses at high frequencies. The product is designed with a wire connection length of 10 / 40 mm and a tinning length of 9 mm, ensuring easy installation and use. It's an ideal choice for those seeking high-quality crossover components and copper foil coils.



        I.T. Intertechnik article code: 1340845

        Show more

        Specifications

        Article number
        DR56/10/140
        EAN
        9505997413778
        Coil type
        Copper foil coils
        Inductance
        10 mH
        DCR
        0.371 ohms
        Tolerance
        5%
        Wire diameter
        15 AWG

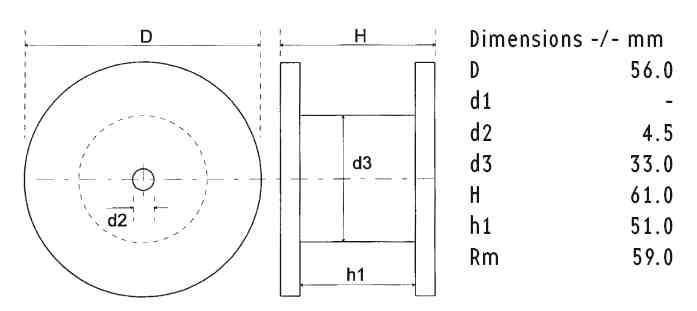

        Dimensions: Ø * H (mm)
        56 x 61

        Show more
