        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil

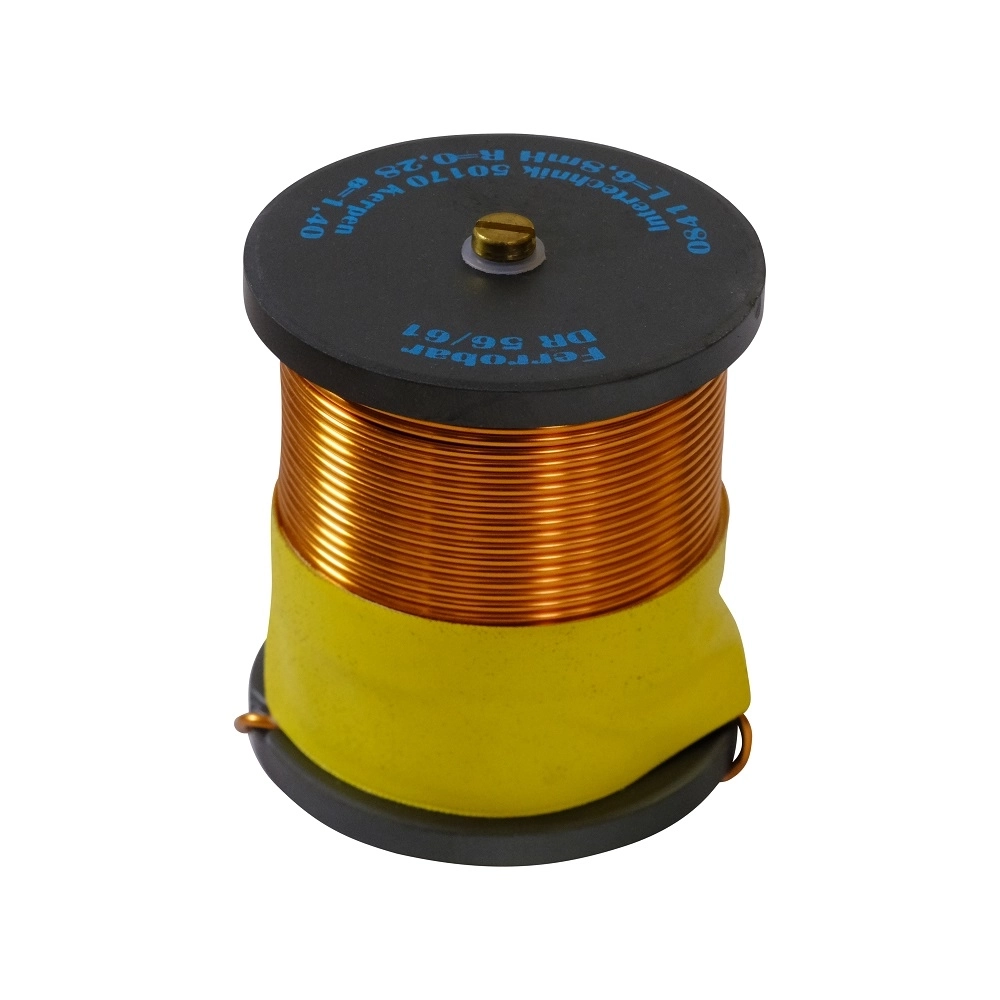

        Intertechnik DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil

        €68,45

        Out of stock

        Add to cart

        Intertechnik DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Copper foil coils
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        € 56,57€ 68,45 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil
        DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil

        Product description Intertechnik DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG

        The I.T. Intertechnik DR56/12/140 is a high-quality 12 mH Ferrobar Coil with 5% tolerance.



        Highlights

        • 12 mH Inductance
        • 0.411 Ω Resistance
        • 5% Tolerance
        • 15 AWG Wire Size



        Product details

        I.T. Intertechnik DR56/12/140 | 12 mH | 0,411 Ω | 5% | 15 AWG | Ferrobar Coil



        The I.T. Intertechnik DR56/12/140 is a 12 mH Ferrobar Coil, designed for use in crossover components and copper foil coils. This coil offers an inductance of 12 mH with a resistance of 0.411 Ω, providing a tolerance of 5%. It uses a 15 AWG wire size. The coil has a copper purity of more than 99.99%, with a wire connection length of 10/40 mm and a tin length of 9 mm. The coil body material is FERROBAR Ferrite and the core shape is Ferrobar. The inductance measurement value is nominal at 25 degrees Celsius with 1 kHz FERROBAR (R). It's an ideal choice for those seeking a high-performance crossover component.



        I.T. Intertechnik article code: 1340847

        Show more

        Specifications

        Article number
        DR56/12/140
        EAN
        9503147839560
        Coil type
        Copper foil coils
        Inductance
        12 mH
        DCR
        0.411 ohms
        Tolerance
        5%
        Wire diameter
        15 AWG

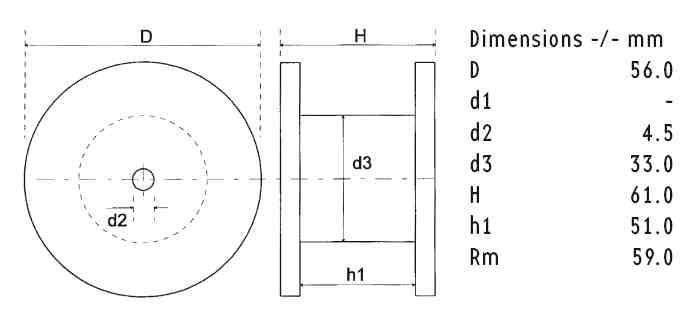

        Dimensions: Ø * H (mm)
        56 x 61

        Show more
