        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil

        Intertechnik LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil

        €128,25

        Out of stock

        Add to cart

        Intertechnik LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        € 105,99€ 128,25 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil
        LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG | Air Coil

        Product description Intertechnik LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG

        The I.T. Intertechnik LU120/3.3/20 is a high precision air coil with 3.3 mH inductance and 0.35 Ω resistance.



        Highlights

        • High precision with 3% inductance tolerance
        • Strong 12 AWG wire
        • Superior ABS coil body material
        • Wire connection length of 10 mm with 9 mm tinning length



        Product details

        I.T. Intertechnik LU120/3.3/20 | 3,3 mH | 0,35 Ω | 3% | 12 AWG |Air Coil



        The I.T. Intertechnik LU120/3.3/20 is a top-quality air coil, specifically designed as a crossover component for high-end audio systems. With a precise inductance of 3.3 mH and a resistance of 0.35 Ω, it delivers optimal performance. The coil has an inductance tolerance of 3%, ensuring consistent audio output. The coil is wound with a robust 12 AWG wire, guaranteeing durability and longevity. The wire connection length is 10 mm, with a tinning length of 9mm for easy installation. The coil body is made from strong ABS material, ensuring it can withstand rigorous use. The inductance measurements are nominal at 25 degrees C, at 1kHz, ensuring consistent performance across a range of temperatures. Invest in the I.T. Intertechnik LU120/3.3/20 for superior audio performance.



        I.T. Intertechnik article code: 1340077

        Show more

        Specifications

        Article number
        LU120/3.3/20
        EAN
        9507236417479
        Coil type
        Air core coils
        Inductance
        3.3 mH
        DCR
        0.35 ohms
        Tolerance
        3%
        Wire diameter
        12 AWG

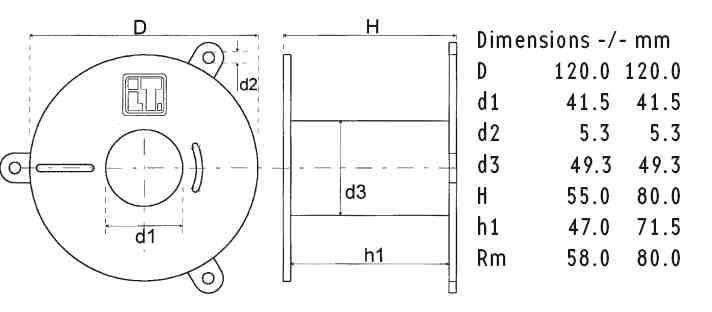

        Dimensions: Ø * H (mm)
        120 x 55
