        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil

        Intertechnik LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil

        €176,25

        Out of stock

        Add to cart

        Intertechnik LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        € 145,66€ 176,25 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil
        LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG | Air Coil

        Product description Intertechnik LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG

        The I.T. Intertechnik LU120/6.8/20 is a high-quality air coil with a 6.8 mH inductance and 0.53 Ω resistance.



        Highlights

        • 6.8 mH inductance
        • 0.53 Ω resistance
        • 3% inductance tolerance
        • Wire made from 12 AWG



        Product details

        I.T. Intertechnik LU120/6.8/20 | 6,8 mH | 0,53 Ω | 3% | 12 AWG |Air Coil



        This I.T. Intertechnik LU120/6.8/20 air coil, a high-end product in the category of Crossover Components Air Core Coils, delivers impressive performance with its 6.8 mH inductance and 0.53 Ω resistance. This product is designed with precision, having a tight inductance tolerance of 3%. The coil's wire is made of 12 AWG, ensuring its robustness and longevity. The coil is produced with a wire connection length of 10 mm and a tinning length of 9mm, using ABS as the bobbin material. The inductance measurement is nominal at 25 degrees C at 1KHz. This product provides a superior solution for those requiring high-quality crossover components.



        I.T. Intertechnik article code: 1340083

        Show more

        Specifications

        Article number
        LU120/6.8/20
        EAN
        9503543788196
        Coil type
        Air core coils
        Inductance
        6.8 mH
        DCR
        0.53 ohms
        Tolerance
        3%
        Wire diameter
        12 AWG

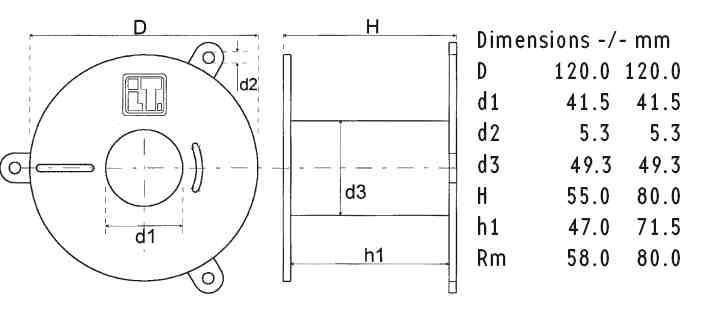

        Dimensions: Ø * H (mm)
        120 x 55
