        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil

        Intertechnik LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil

        €11,45

        2 In stock

        Add to cart

        Intertechnik LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        € 9,46€ 11,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil
        LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG | Air Coil

        Product description Intertechnik LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG

        The I.T. Intertechnik LU55/010/140 is a high-quality air coil of 0.1mH inductance, with a resistance of 0.08 Ω.



        Highlights

        • High-quality air coil with 0.1mH inductance
        • Low electrical resistance of 0.08 Ω
        • Exceptional tolerance of 3%
        • Constructed with a reliable 15 AWG wire



        Product details

        I.T. Intertechnik LU55/010/140 | 0,1 mH | 0,08 Ω | 3% | 15 AWG |Air Coil



        The I.T. Intertechnik LU55/010/140 air coil is a top-notch product in the category of 'Crossover components Air core coils'. The coil, having an inductance of 0.1mH and an electrical resistance of 0.08 Ω, is designed to deliver optimal performance. The product's inductance tolerance is an impressive -3%, ensuring unwavering performance. The coil is constructed with a 15 AWG wire, promising durability and long-term usage. The coil's wire connection length is 10mm, with a tinning length of 9mm. The coil body material is ABS, adding to the product's robustness. The inductance measure is nominal at 25 degrees Celsius at 1KHz, reinforcing the coil's effective operation under different conditions.



        I.T. Intertechnik article code: 1340046

        Show more

        Specifications

        Article number
        LU55/010/140
        EAN
        8785256848997
        Coil type
        Air core coils
        Inductance
        0.1 mH
        DCR
        0.08 ohms
        Tolerance
        3%
        Wire diameter
        15 AWG

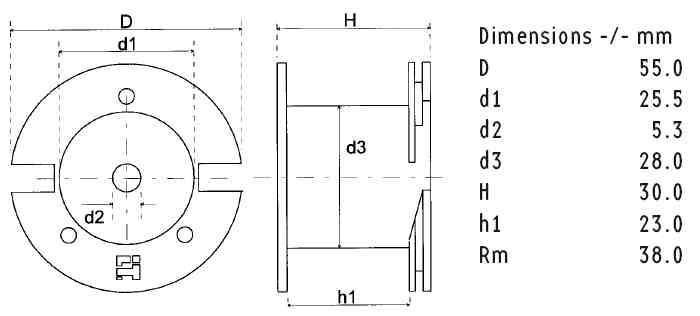

        Dimensions: Ø * H (mm)
        55 x 30

        Show more
