        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil

        Intertechnik LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil

        €14,25

        4 In stock

        Add to cart

        Intertechnik LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        € 11,78€ 14,25 4 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil
        LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG | Air Coil

        Product description Intertechnik LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG

        This is a high-quality Air Coil from I.T. Intertechnik with 0.22 mH inductance, 0.13 Ω resistance, and 3% tolerance.



        Highlights

        • 0.22 mH inductance for efficient signal transmission
        • 0.13 Ω resistance for minimized power loss
        • 3% tolerance for precise operations
        • Constructed with 15 AWG wire for durability



        Product details

        I.T. Intertechnik LU55/022/140 | 0,22 mH | 0,13 Ω | 3% | 15 AWG |Air Coil



        This I.T. Intertechnik Air Coil is a top-of-the-line crossover component that offers 0.22 mH inductance and 0.13 Ω resistance, ensuring efficient signal transmission and minimal power loss. It has a tolerance of 3%, making it a precise and reliable component for any application. Manufactured with a 15 AWG wire, this coil is durable and built to last. The coil's wire is 99.99% pure, with a wire connection length of 10 mm and a tinning length of 9 mm. Its coil bobbin material is ABS, ensuring longevity and resilience. The coil's inductance value is measured nominally at 25 degrees C at 1KHz. With its high-quality construction and precise specifications, this air coil is an excellent choice for any high-performance crossover application.



        I.T. Intertechnik article code: 1340050

        Show more

        Specifications

        Article number
        LU55/022/140
        EAN
        8785256849031
        Coil type
        Air core coils
        Inductance
        0.22 mH
        DCR
        0.13 ohms
        Tolerance
        3%
        Wire diameter
        15 AWG

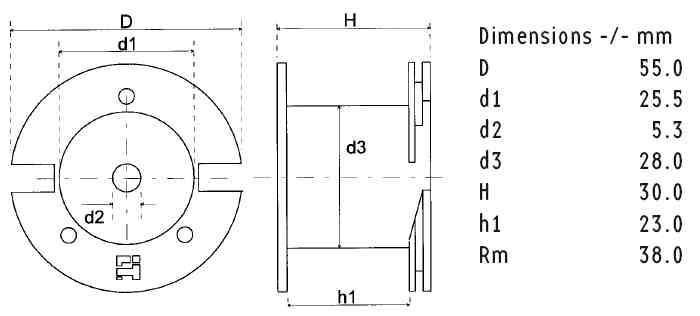

        Dimensions: Ø * H (mm)
        55 x 30
