        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil

        Intertechnik LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil

        €18,25

        Out of stock

        Add to cart

        Intertechnik LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        € 18,25 Out of stock
        +-
        Add to cart
        • We ship to United States of America
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil
        LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG | Air Coil

        Product description Intertechnik LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG

        An air coil with a high-quality design for crossover components.



        Highlights

        • Inductance of 1.2mH.
        • Resistance of 0.65Ω.
        • Capacitance Tolerance of 3%.
        • Made with 18 AWG wire.



        Product details

        I.T. Intertechnik LU55/1.2/100 | 1,2 mH | 0,65 Ω | 3% | 18 AWG |Air Coil

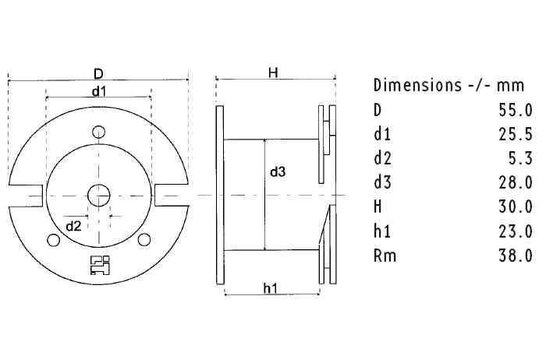

        This I.T. Intertechnik LU55/1.2/100 air coil is a high-quality product designed for use in crossover components. It features a precise inductance of 1.2mH and exhibits a resistance of 0.65 ohms. The air coil is wound with 18 AWG wire and offers a capacitance tolerance of 3%, ensuring reliable performance. Its wire connection length is 10mm and the tinning length is 9mm. The spool body material is made of tough ABS, designed to withstand demanding applications. This air coil is measured at the nominal temperature of 25 degrees Celsius at 1KHz, offering consistent performance across a wide range of operating conditions.



        I.T. Intertechnik article code: 1340028

        Specifications

        Article number
        LU55/1.2/100
        EAN
        8785256848928
        Coil type
        Air core coils
        Inductance
        1.2 mH
        DCR
        0.65 ohms
        Tolerance
        3%
        Wire diameter
        18 AWG

        Show more
