        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil

        Intertechnik LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil

        €23,45

        2 In stock

        Add to cart

        Intertechnik LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        € 19,38€ 23,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil
        LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG | Air Coil

        Product description Intertechnik LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG

        This intertechnik LU55/2.2/100 is a powerful 2.2mH air coil with excellent performance and reliability.



        Highlights

        • Premium 2.2mH air coil
        • Exceptional 0.89 Ohm resistance
        • High precision with 3% tolerance
        • Constructed with 18 AWG wire for optimal conductivity



        Product details

        I.T. Intertechnik LU55/2.2/100 | 2,2 mH | 0,89 Ω | 3% | 18 AWG |Air Coil



        The I.T. Intertechnik LU55/2.2/100 is a high-quality 2.2mH air coil specially designed for crossover components in the audio industry. It features a resistance of 0.89 Ohm and a tolerance of 3%, ensuring accurate sound reproduction with minimum distortion. The coil is wound with 18 AWG wire, providing superior electrical conductivity and durability. The coil has been designed with a wire connection length of 10mm and a tinning length of 9mm. It uses ABS as the coil body material, providing it with excellent heat resistance and mechanical strength. The inductance value is measured at a nominal 25 degrees C at 1KHz, providing consistent performance across a wide temperature range. This air coil from I.T. Intertechnik is a reliable choice for any audio system requiring high-quality crossover components.



        I.T. Intertechnik article code: 1340034

        Show more

        Specifications

        Article number
        LU55/2.2/100
        EAN
        8785256848959
        Coil type
        Air core coils
        Inductance
        2.2 mH
        DCR
        0.89 ohms
        Tolerance
        3%
        Wire diameter
        18 AWG

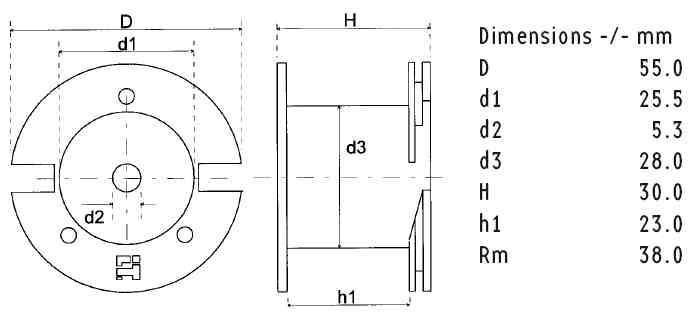

        Dimensions: Ø * H (mm)
        55 x 30
