        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil

        Intertechnik LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil

        €34,25

        2 In stock

        Add to cart

        Intertechnik LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        € 28,31€ 34,25 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil
        LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG | Air Coil

        Product description Intertechnik LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG

        The I.T. Intertechnik LU92/039/200 offers high-quality inductance with minimal resistance.



        Highlights

        • 0.39 mH inductance
        • 0.10 Ω resistance
        • 3% inductance tolerance
        • 12 AWG wire gauge



        Product details

        I.T. Intertechnik LU92/039/200 | 0,39 mH | 0,10 Ω | 3% | 12 AWG |Air Coil



        The I.T. Intertechnik LU92/039/200 is a premium quality air coil from the crossover components category. It offers a precise 0.39 mH inductance and a minimal resistance of 0.10 Ω. With a tolerance level of 3%, it guarantees consistent performance. The coil uses 12 AWG wire gauge, ensuring durability and efficiency. The coil has a wire connection length of 10 mm and a tinning length of 9mm. The coil body material is ABS, which is known for its robustness and reliability. The inductance measurement is nominal at 25 degrees C at 1KHz. This product is ideal for applications that require high inductance with minimal resistance.



        I.T. Intertechnik article code: 1340914

        Show more

        Specifications

        Article number
        LU92/039/200
        EAN
        8785256850129
        Coil type
        Air core coils
        Inductance
        0.39 mH
        DCR
        0.10 ohms
        Tolerance
        3%
        Wire diameter
        12 AWG

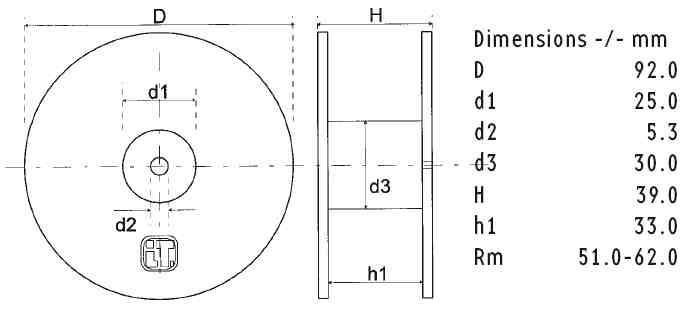

        Dimensions: Ø * H (mm)
        92 x 39
