        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor

        Intertechnik LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor

        €8,95

        4 In stock

        Add to cart

        Intertechnik LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        € 7,40€ 8,95 4 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor
        LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor

        Product description Intertechnik LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG

        High-grade air therm inductor with exceptional inductance and resistance precision.



        Highlights

        • Inductance value of 0.15mH
        • Resistance of 0.21 Ohms
        • 3% inductance tolerance
        • Constructed with 18 AWG wire



        Product details

        I.T. Intertechnik LUT32/015/10 | 0,15 mH | 0,21 Ω | 3% | 18 AWG | Air Therm Inductor



        This I.T. Intertechnik air therm inductor is a standout component in the crossover components coils air core coils category. It features an inductance value of 0.15mH and a resistance of 0.21 Ohms, delivering high precision and reliability. The 3% inductance tolerance ensures consistent performance, while the 18 AWG wire construction offers the robustness needed in a variety of applications. The inductor is made with >99.99% pure copper wire that employs thermoplastic insulation for enhanced durability. It has a wire connection length of 50 mm and a tinning length of 9 mm. The coil body material is polycarbonate, able to withstand temperatures ranging from -90 to 135 degrees Celsius. The inductor's inductance measurement is nominal at 25 degrees Celsius. This product is the epitome of high-quality design and meticulous construction, meeting the exacting requirements of modern electronic components.



        I.T. Intertechnik article code: 1340604

        Show more

        Specifications

        Article number
        LUT32/015/10
        EAN
        8785256849826
        Coil type
        Air core coils
        Inductance
        0.15 mH
        DCR
        0.21 ohms
        Tolerance
        3%
        Wire diameter
        18 AWG

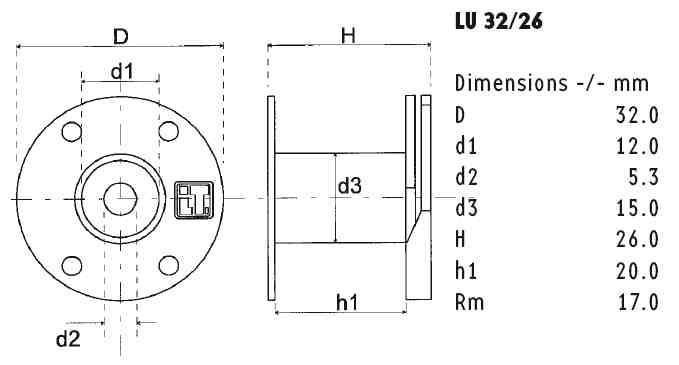

        Dimensions: Ø * H (mm)
        32 x 26

        Show more
