        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil

        Intertechnik TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil

        €152,45

        2 In stock

        Add to cart

        Intertechnik TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        € 125,99€ 152,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil
        TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil

        Product description Intertechnik TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG

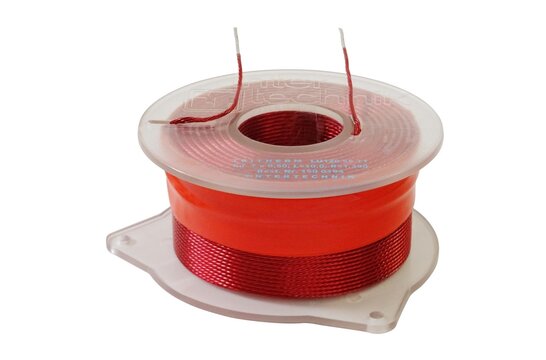

        The I.T. Intertechnik TRI120/1.50/0.80 Tritec Coil is a high-end inductor, specifically designed for crossover components in the audio industry.



        Highlights

        • High-end inductor with "Septem Coxid" technology
        • Pure copper quality of >99.99%
        • 7-fold individual stranded wires for increased current capacity
        • No saturation distortions and low skin effect



        Product details

        I.T. Intertechnik TRI120/1.50/0.80 | 1,5 mH | 0,24 Ω | 1% | 20 AWG | Tritec Coil



        The I.T. Intertechnik TRI120/1.50/0.80 Tritec Coil is a state-of-the-art inductor coil for crossover components, using the innovative "Septem Coxid" technology. The coil offers a constant inductance at voltage and load changes, with a very low skin effect and no saturation distortions. The winding is constructed with a 7-fold individual stranded wire setup, increasing the effective cross-sectional area of the wire and thus the current capacity, reducing overheating. The coil also minimizes electromagnetic interferences and high-frequency noises due to its design. It features an insulation temperature of 150 degrees C and a temperature coefficient of 0.000394 per degree C. The pure copper quality is higher than 99.99%, ensuring excellent sound properties. With a wire connection length of 100 mm and a tin-plating of 10 mm, this coil is a preferred choice in audio wiring.



        I.T. Intertechnik article code: 1500292

        Show more

        Specifications

        Article number
        TRI120/1.50/0.80
        Coil type
        Air core coils
        Inductance
        1.5 mH
        DCR
        0.24 ohms
        Tolerance
        1%
        Wire diameter
        20 AWG

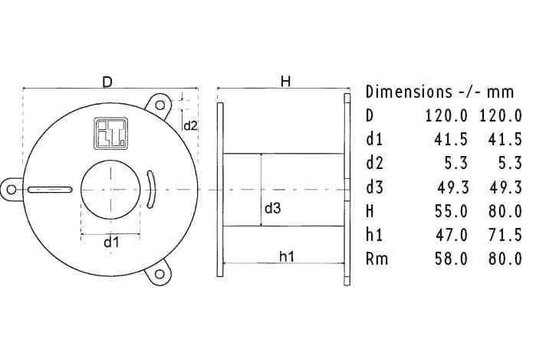

        Dimensions: Ø * H (mm)
        120 x 55

        Show more
