        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil

        Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil

        €284,95

        Out of stock

        Add to cart

        Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        € 235,50€ 284,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil
        TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil

        Product description Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG

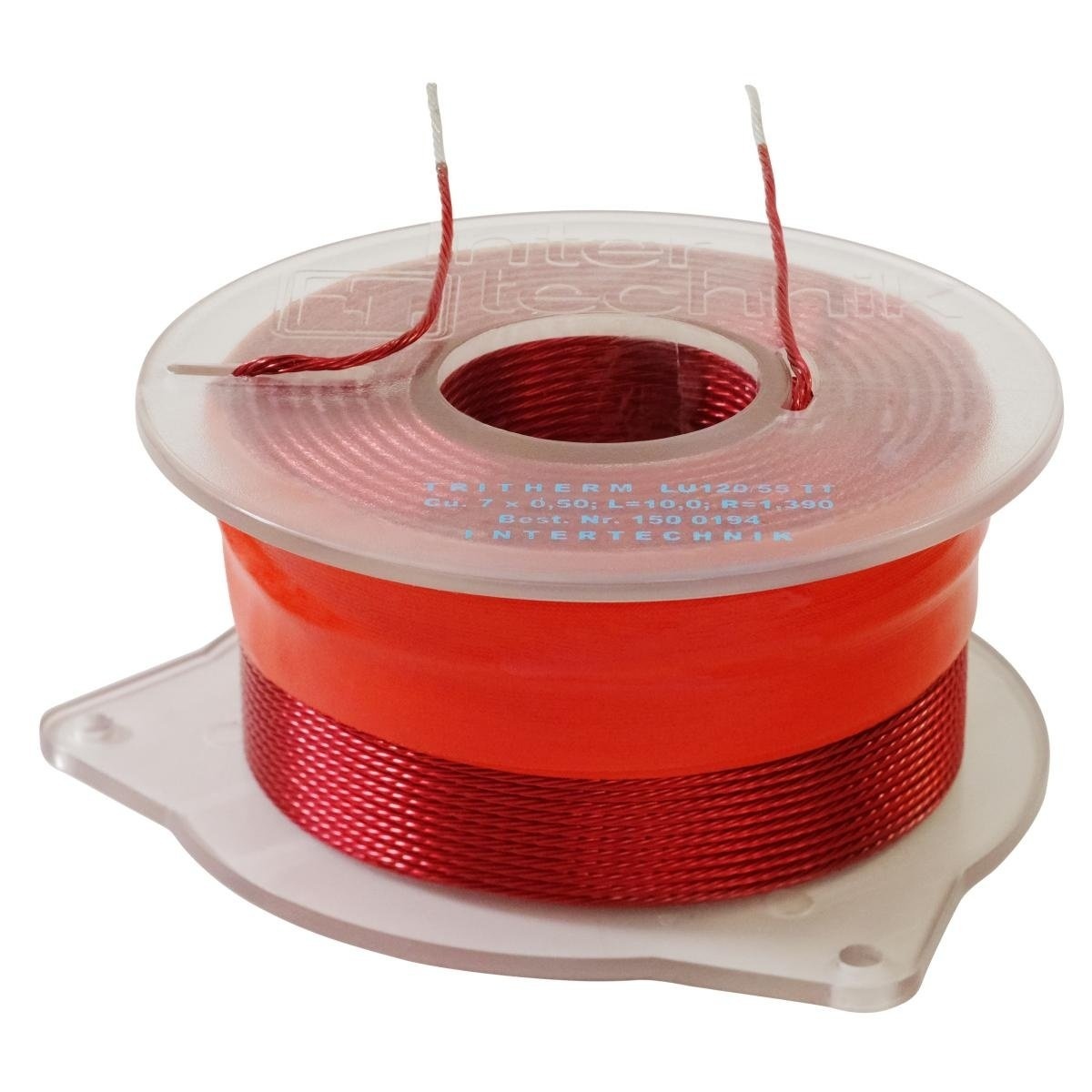

        This is a high-end, 10mH air core coil with 1.09Ω resistance, 1% tolerance, and 23 AWG from I.T. Intertechnik's Tritec series.



        Highlights

        • Uses "Septem Coxid" technology for superior performance
        • Offers low ohmic resistances and skin effect
        • Constant inductance during voltage and load changes
        • Excellent sound properties with noise reduction



        Product details

        I.T. Intertechnik TRI120/10.0/0.60 | 10 mH | 1,09 Ω | 1% | 23 AWG | Tritec Coil



        This I.T. Intertechnik Tritec Coil is an exceptional crossover component that combines all the positive effects of an inductor. This coil boasts of "Septem Coxid" technology with a concentric stranded construction of seven individual strands. The coil is baked and impregnated with thermoplastic enamel wire, ensuring very low ohmic resistances and skin effect. There is no saturation distortion and hysteresis distortion, maintaining a constant inductance with voltage and load changes. It also has a low self-capacity, excellent sound properties, and a copper purity of more than 99.99%. The coil's wire connection length is 100mm, with a tin plating of 10mm. It has an L-tolerance of -1% and an L-measured value of Nom. 25 degrees C Cu. 1 kHz. The coil can withstand an insulation temperature of 150 degrees C and a heat deformation resistance of -90 degrees C to 135 degrees C. The temperature coefficient is 0.000394 per degree C. Its unique 7-wire twisted design offers higher flexibility, increased current carrying capacity, reduced skin effect, and noise reduction, making it a preferred choice in audio cabling.



        I.T. Intertechnik article code: 1500246

        Show more

        Specifications

        Article number
        TRI120/10.0/0.60
        EAN
        9508291541222
        Coil type
        Air core coils
        Inductance
        10 mH
        DCR
        1.09 ohms
        Tolerance
        1%
        Wire diameter
        23 AWG

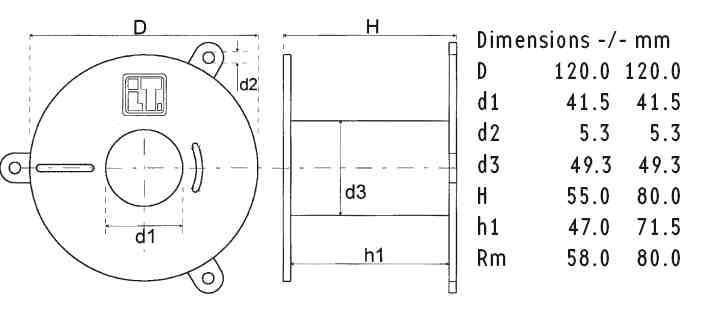

        Dimensions: Ø * H (mm)
        120 x 55

        Show more
