        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil

        Intertechnik TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil

        €38,25

        2 In stock

        Add to cart

        Intertechnik TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        € 31,61€ 38,25 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil
        TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil

        Product description Intertechnik TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG

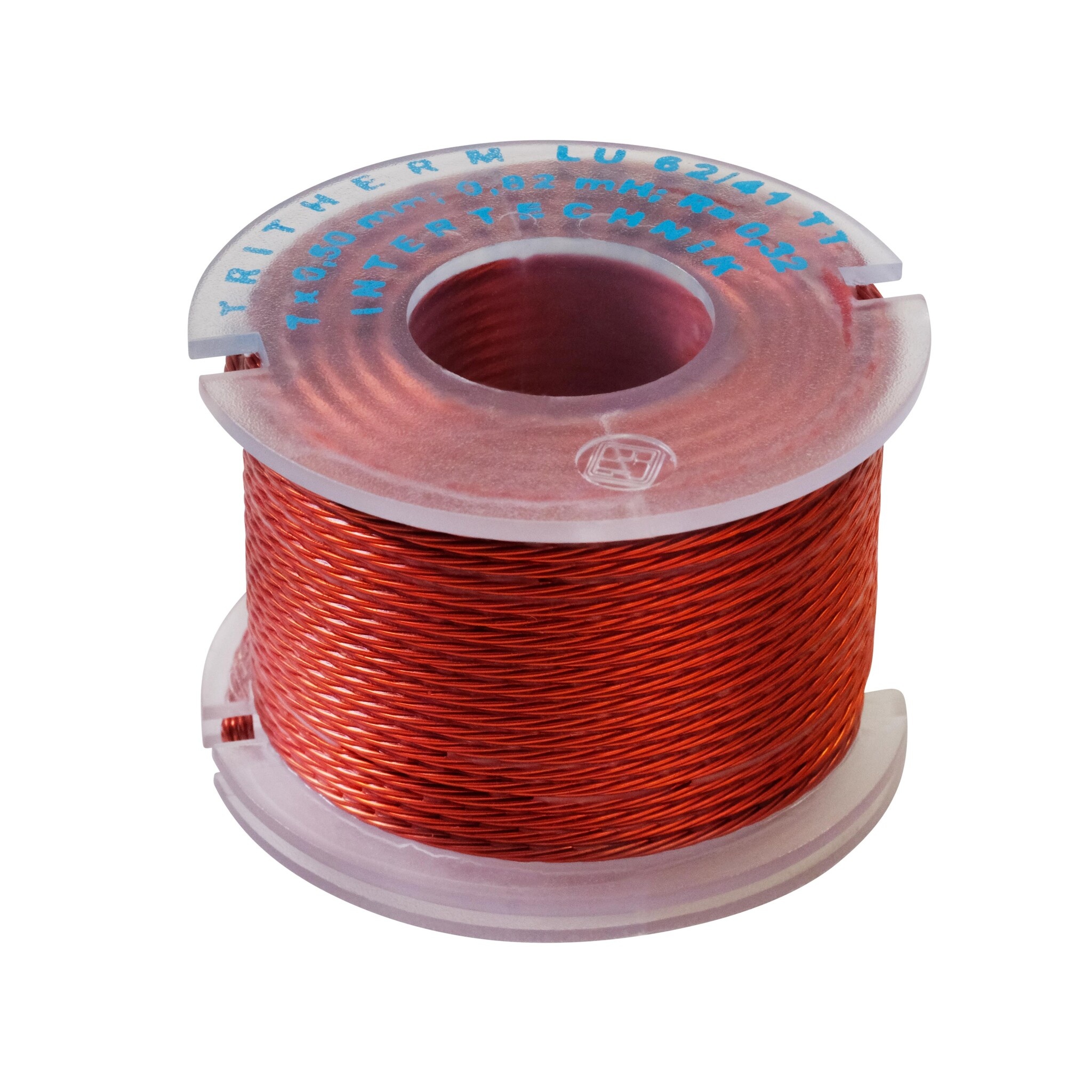

        The I.T. Intertechnik TRI62/039/0.50 is a high-end air core coil for audio crossover applications.



        Highlights

        • Precision wound with 7-strand Tritec wire for high flexibility
        • Low ohmic resistance and minimal skin effect
        • No saturation or hysteresis distortion
        • Excellent sound properties with >99.99% copper purity



        Product details

        I.T. Intertechnik TRI62/039/0.50 | 0,39 mH | 0,209 Ω | 1% | 24 AWG | Tritec Coil



        The I.T. Intertechnik TRI62/039/0.50 is a high-end air core coil specifically designed for audio crossover applications. This coil is precision wound with a 7-strand Tritec wire, ensuring increased flexibility and ease of handling. The use of thermoplastic enamel wire, baked and impregnated, leads to very low ohmic resistances and a significantly reduced skin effect. The coil offers no saturation or hysteresis distortions and maintains constant inductance under voltage and load changes. With a copper purity of over 99.99%, it provides excellent sound properties. The coil features a low self-capacitance, a nominal measurement at 25°C, and a temperature coefficient of 0.000394 per °C. The insulation temperature is 150°C, and it can withstand heat form resistance from -90°C to 135°C. With its seven-strand twisted conductor, it can carry higher currents without overheating, reduce electromagnetic interference and high-frequency noise, making it the preferred choice for audio cabling.



        I.T. Intertechnik article code: 1500177

        Show more

        Specifications

        Article number
        TRI62/039/0.50
        EAN
        8785256854349
        Coil type
        Air core coils
        Inductance
        0.39 mH
        DCR
        0.209 ohms
        Tolerance
        1%
        Wire diameter
        24 AWG

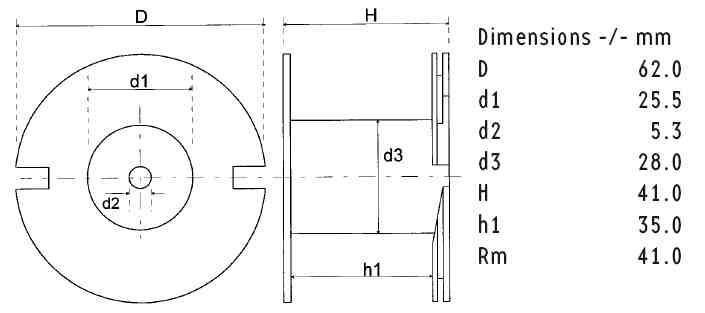

        Dimensions: Ø * H (mm)
        62 x 41
