        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil

        Intertechnik TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil

        €74,45

        2 In stock

        Add to cart

        Intertechnik TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        € 61,53€ 74,45 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil

        Product description Intertechnik TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG

        A superior air core coil for crossover components, with Tritec technology and 1% inductance tolerance.



        Highlights

        • Manufactured with the innovative "Septem Coxid" technology.
        • Boasts low ohmic resistance and negligible skin effect.
        • Offers constant inductance during voltage and load changes.
        • Exhibits excellent sound properties with minimal distortion.



        Product details

        I.T. Intertechnik TRI92/0.82/0.60 | 0,82 mH | 0,231 Ω | 1% | 23 AWG | Tritec Coil

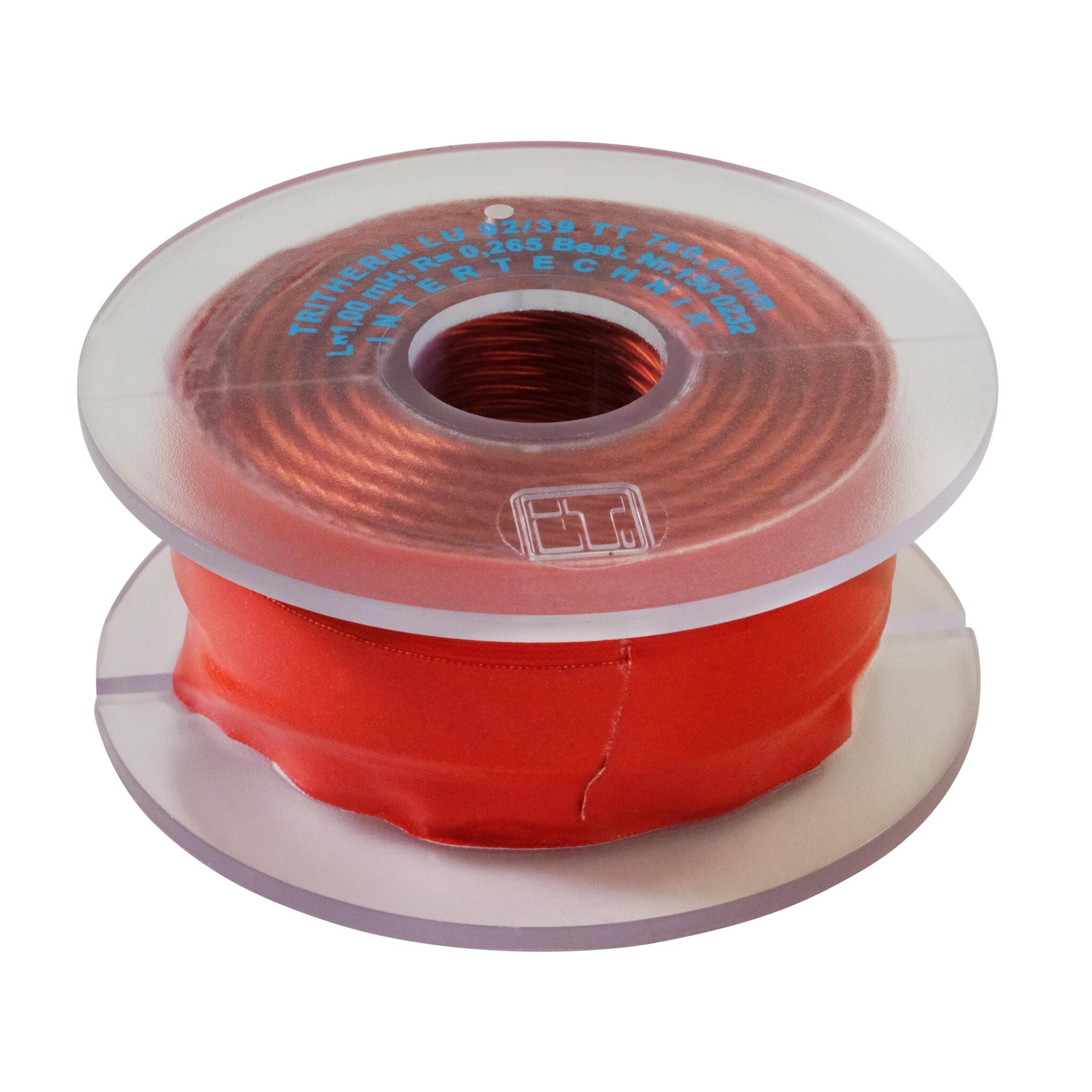

        The I.T. Intertechnik TRI92/0.82/0.60 Tritec Coil is a high-end crossover component that offers a range of superior features. This coil is manufactured using the advanced 'Septem Coxid' technology and boasts a concentric stranded construction with seven individual strands. It is backed and impregnated with thermoplastic enamel wire, ensuring low ohmic resistance and minimal skin effect. One of the standout features of this coil is its constant inductance during voltage and load changes. It offers negligible saturation and hysteresis distortions, and a low self-capacitance. The coil not only exhibits superior sound properties but also has a copper purity of over 99.99%. The coil body is made of polycarbonate and has a temperature resistance of 150 degrees Celsius. Its heat deformation resistance ranges from -90 degrees Celsius to 135 degrees Celsius, and it has a temperature coefficient of 0.000394 per degree Celsius. With a wire connection length of 100mm and tinning of 10mm, this coil is a preferred choice in audio cabling.



        I.T. Intertechnik article code: 1500231

        Show more

        Specifications

        Article number
        TRI92/0.82/0.60
        Coil type
        Air core coils
        Inductance
        0.82 mH
        DCR
        0.231 ohms
        Tolerance
        1%
        Wire diameter
        23 AWG

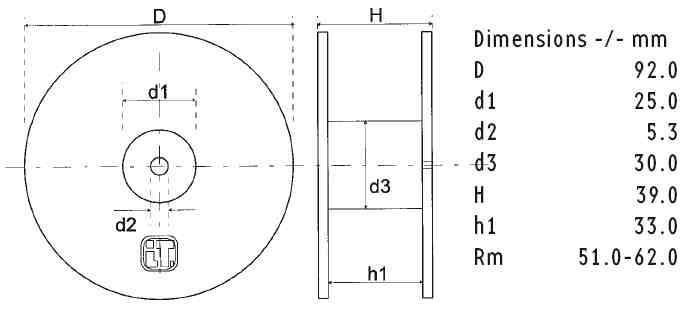

        Dimensions: Ø * H (mm)
        92 x 39

        Show more
