        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil

        Intertechnik TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil

        €132,95

        2 In stock

        Add to cart

        Intertechnik TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        € 132,95 2 In stock
        +-
        Add to cart
        • We ship to United States of America
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil
        TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG | Tritec Coil

        Product description Intertechnik TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 7 x 20 AWG

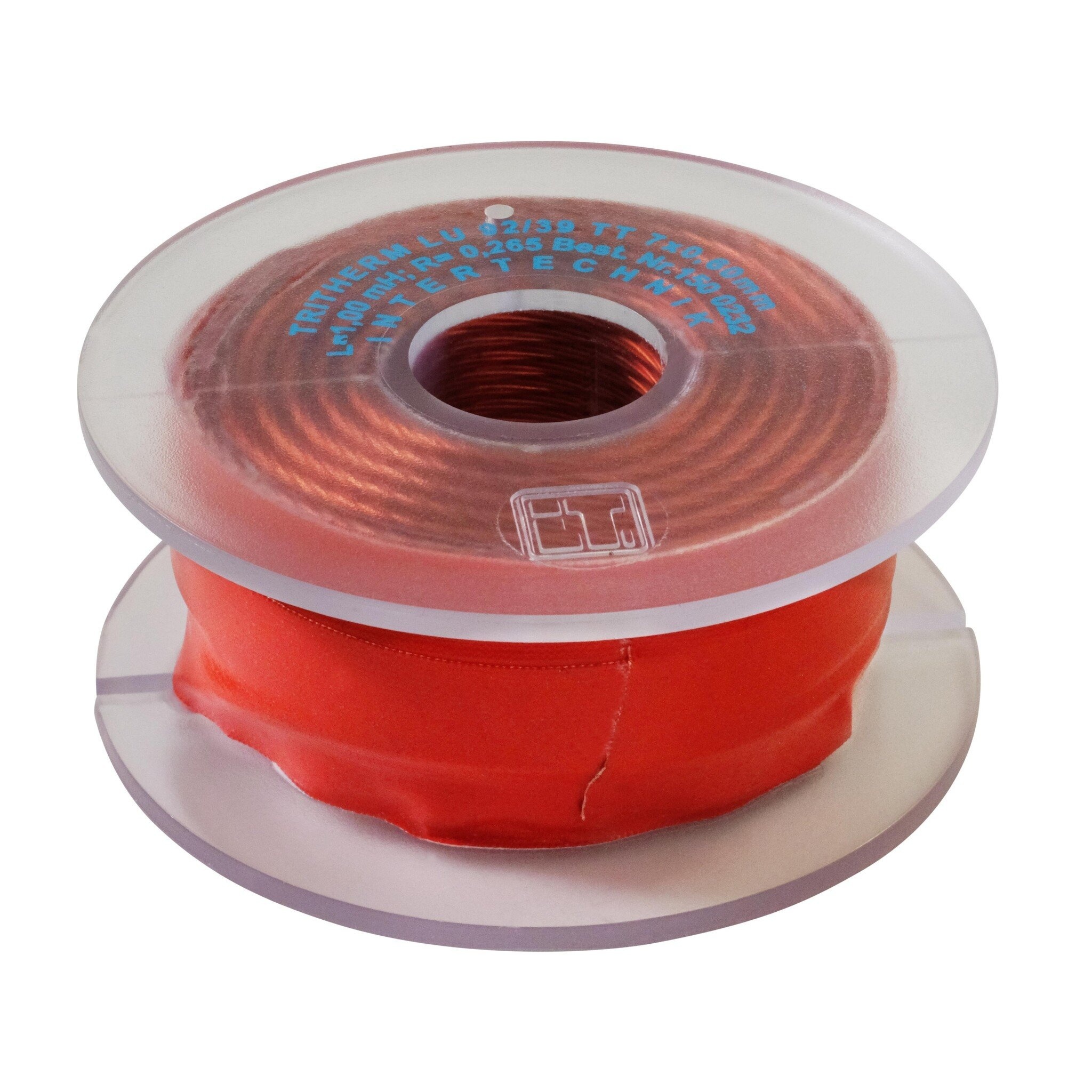

        Intertechnik Tritec air coil, 1.0 mH inductance, with 0.17 Ω resistance, and 1% tolerance.



        Highlights

        • Uses "Septem Coxid" technology for high-end choke coils.
        • Consistent inductance during voltage and load changes.
        • Flexibility and increased current carrying capacity due to 7-strand twisted conductor.
        • Reduces noise and electromagnetic interference.



        Product details

        I.T. Intertechnik TRI92/1.00/0.80 | 1,0 mH | 0,17 Ω | 1% | 20 AWG | Tritec Coil



        The I.T. Intertechnik Tritec air coil is a high-end choke coil employing "Septem Coxid" technology. It features a concentric stranded construction with seven individual strands, thermoplastic enamel wire, low ohmic resistances, and minimal skin effect. This coil effectively eliminates saturation and hysteresis distortions, maintaining constant inductance during voltage and load changes. The 7-strand twisted conductor offers flexibility, increased current carrying capacity, and reduces skin effect. This reduction in skin effect allows the current to distribute more evenly across the conductor. Moreover, the twisted design minimizes the occurrence of magnetic fields and electromagnetic interference, reducing noise in the process. Its excellent sound properties and low self-capacitance make it a preferred choice for audio cabling.



        I.T. Intertechnik article code: 1500289

        Specifications

        Article number
        TRI92/1.00/0.80
        EAN
        8785256854684
        Coil type
        Air core coils
        Inductance
        1 mH
        DCR
        0.17 ohms
        Tolerance
        1%
        Wire diameter
        20 AWG

        Show more
