        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil

        Intertechnik TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil

        €146,95

        2 In stock

        Add to cart

        Intertechnik TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Intertechnik
        Show all Air core coils
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        € 121,45€ 146,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil
        TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil

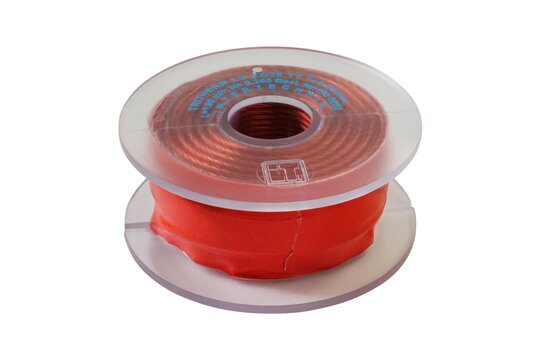

        Product description Intertechnik TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG

        The I.T. Intertechnik TRI92/270/0.60 is a high-end Tritec Coil with superior sound quality attributes.



        Highlights

        • High-end coil with "Septem Coxid" technology.
        • Constant inductance with voltage and load change.
        • Low self-capacitance and excellent sound properties.
        • Reduction in skin-effect for balanced current distribution.



        Product details

        I.T. Intertechnik TRI92/270/0.60 | 2,7 mH | 0,46 Ω | 1% | 23 AWG | Tritec Coil



        The I.T. Intertechnik TRI92/270/0.60 is a top-notch Tritec Coil designed with "Septem Coxid" technology. It features a winding with concentric litz construction with 7-fold single strands, thermoplastic enameled wire, baked and impregnated. It has low ohmic resistances and a very low skin effect. There are no saturation distortions, no hysteresis distortions, and it maintains constant inductance with voltage and load changes. Additionally, it has a low self-capacity and provides excellent sound properties. The twisted 7-strand Tritec wire offers flexibility, increased current carrying capability, reduction in skin effect, and noise reduction. With its superior features, this coil is a preferred choice in audio cabling.



        I.T. Intertechnik article code: 1500238

        Show more

        Specifications

        Article number
        TRI92/270/0.60
        EAN
        8785256854615
        Coil type
        Air core coils
        Inductance
        2.7 mH
        DCR
        0.46 ohms
        Tolerance
        1%
        Wire diameter
        23 AWG

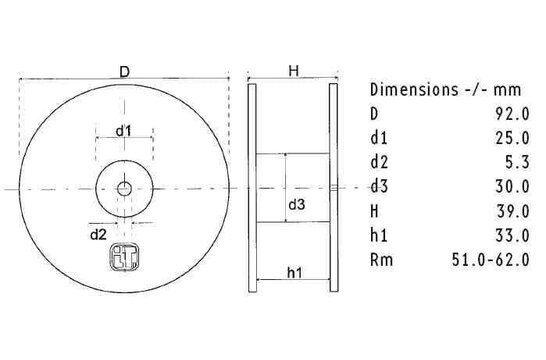

        Dimensions: Ø * H (mm)
        92 x 39

        Show more
