        000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG | Air Core Coil

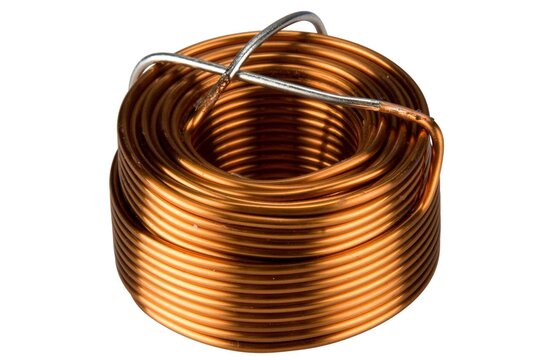

        Jantzen Audio 000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG | Air Core Coil

        €2,45

        8 In stock

        Add to cart

        Jantzen Audio 000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG | Air Core Coil
        € 2,02€ 2,45 8 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG | Air Core Coil

        Product description Jantzen Audio 000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG

        A high-purity copper wire air core coil, perfect for all audio applications.



        Highlights

        • High-purity copper wire for distortion-free sound
        • Modern self-supporting design with no plastic bobbins
        • Low inductance tolerance of +/-3%
        • Grade 1B copper wire with aliphatic polyamide bond coat



        Product details

        Jantzen Audio 000-1073 | 0,20 mH | 0,60 Ω | 3% | 24 AWG | Air Core Coil



        This Jantzen Audio 000-1073 air core coil is an exceptional addition to any audio application. It boasts a high-purity copper wire that is "baked" into a perfect shape to create a distortion-free inductor. With a modern self-supporting design, there's no need for plastic bobbins, offering a more natural and cleaner sound. The enameled copper wire is solderable with a self-bonding topcoat, class 155, in accordance with IEC 60317-35, DIN EN 60317-35. Its grade 1B copper wire is complemented by a polyurethane bond coat with aliphatic polyamide. Notably, it maintains a low inductance tolerance of +/-3%, ensuring precise and consistent performance. This air core coil is a reliable and high-quality component for all your crossover needs.

        Show more

        Specifications

        Article number
        000-1073
        EAN
        9501732744282
        Coil type
        Air core coils
        Inductance
        0.2 mH
        DCR
        0.60 ohms
        Tolerance
        3%
        Wire diameter
        24 AWG
        Dimensions: Ø * H (mm)
        24 x 8
