      Product description Jantzen Audio 000-1127 | 3,9 mH | 2,32 Ω | 3% | 22 AWG

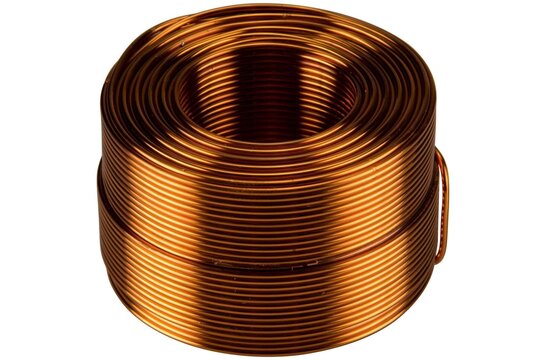

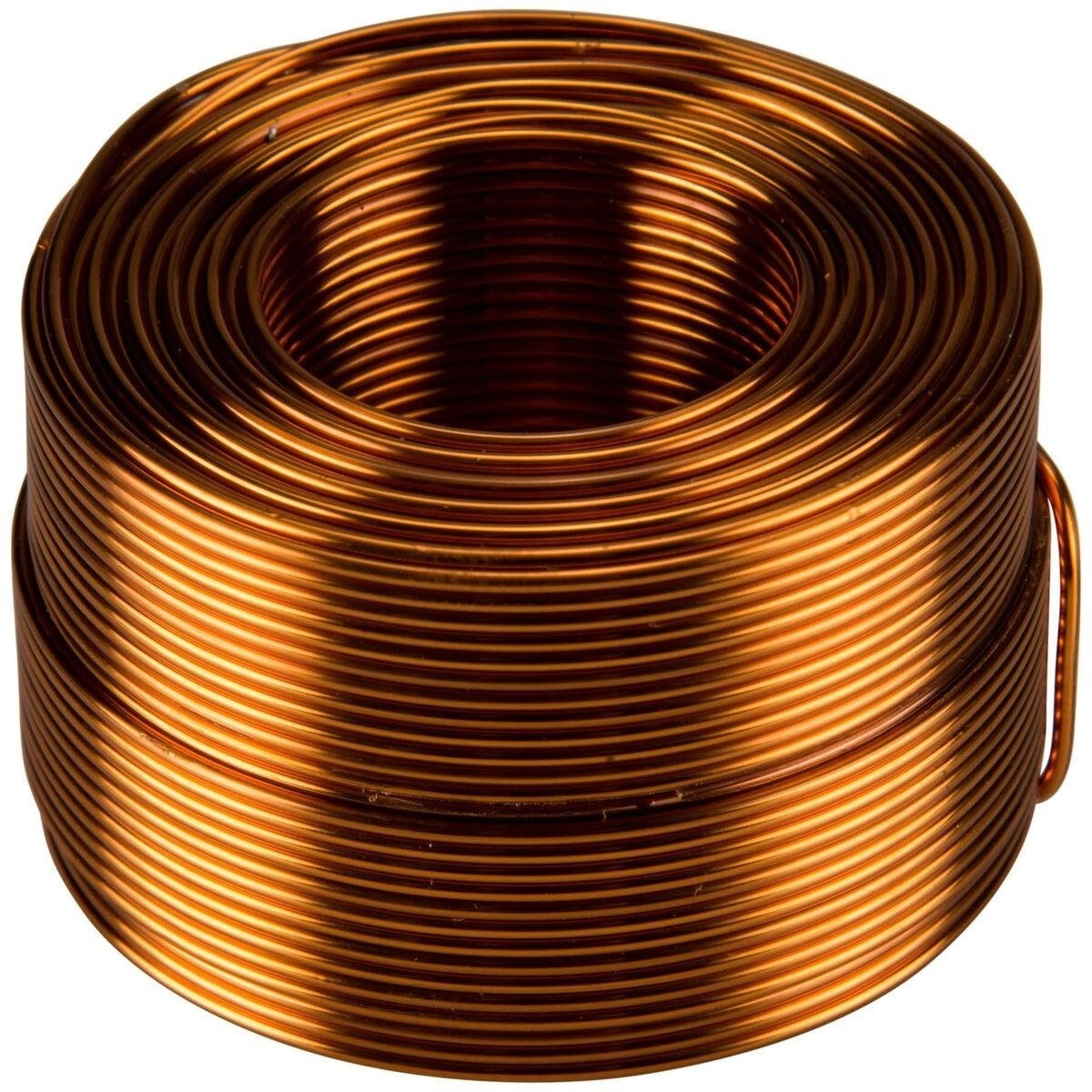

      The Jantzen Audio 000-1127 is a premium-quality air core coil that offers high-purity copper wire and superior inductance tolerance.



      Highlights

      • High-purity copper wire for distortion-free sound quality
      • Modern self-supporting design for optimal stability
      • Low inductance tolerance of +/-3% for precise sound reproduction
      • Versatile, enameled and solderable wire with self-bonding topcoat



      Product details

      Jantzen Audio 000-1127 | 3,9 mH | 2,32 Ω | 3% | 22 AWG | Air Core Coil



      The Jantzen Audio 000-1127 Air Core Coil, a standout in the category of Crossover components Air core coils, is an exceptional choice for all audio applications. It's designed with high-purity copper wire "baked" into a perfect shape, ensuring a distortion-free inductor. Its modern, self-supporting design eliminates the need for plastic bobbins, making it both effective and eco-friendly. This model boasts a low inductance tolerance of +/-3%, guaranteeing accurate and precise sound reproduction. The coil is made of Grade 1B copper wire, coated with polyurethane and an aliphatic polyamide bond, adhering to IEC 60317-35 and DIN EN 60317-35 standards. The enameled copper wire is easily solderable, thanks to its self-bonding topcoat, offering flexibility for various installations. Choose Jantzen Audio 000-1127 for a sound experience like no other.

      Specifications

      Article number
      000-1127
      EAN
      9508336618230
      Coil type
      Air core coils
      Inductance
      3.9 mH
      DCR
      2.32 ohms
      Tolerance
      3%
      Wire diameter
      22 AWG
