        Product description Jantzen Audio 000-1132 | 1,8 mH | 0,57 Ω | 3% | 17 AWG

        An exceptional 17 AWG Air Core Coil by Jantzen Audio, designed for high-quality audio applications.



        Highlights

        • High-purity copper wire for distortion-free sound
        • Modern self-supporting design without plastic bobbins
        • Low inductance tolerance of +/-3%
        • Compliant with IEC 60317-35, DIN EN 60317-35



        Product details

        Jantzen Audio 000-1132 | 1,8 mH | 0,57 Ω | 3% | 17 AWG | Air Core Coil

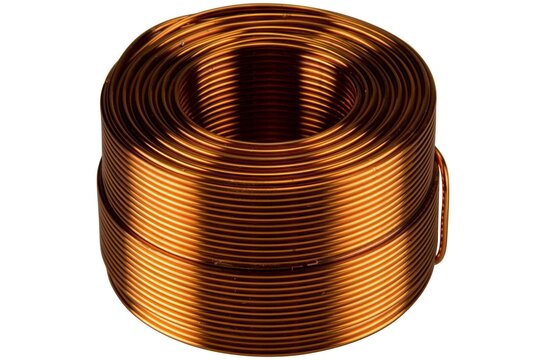

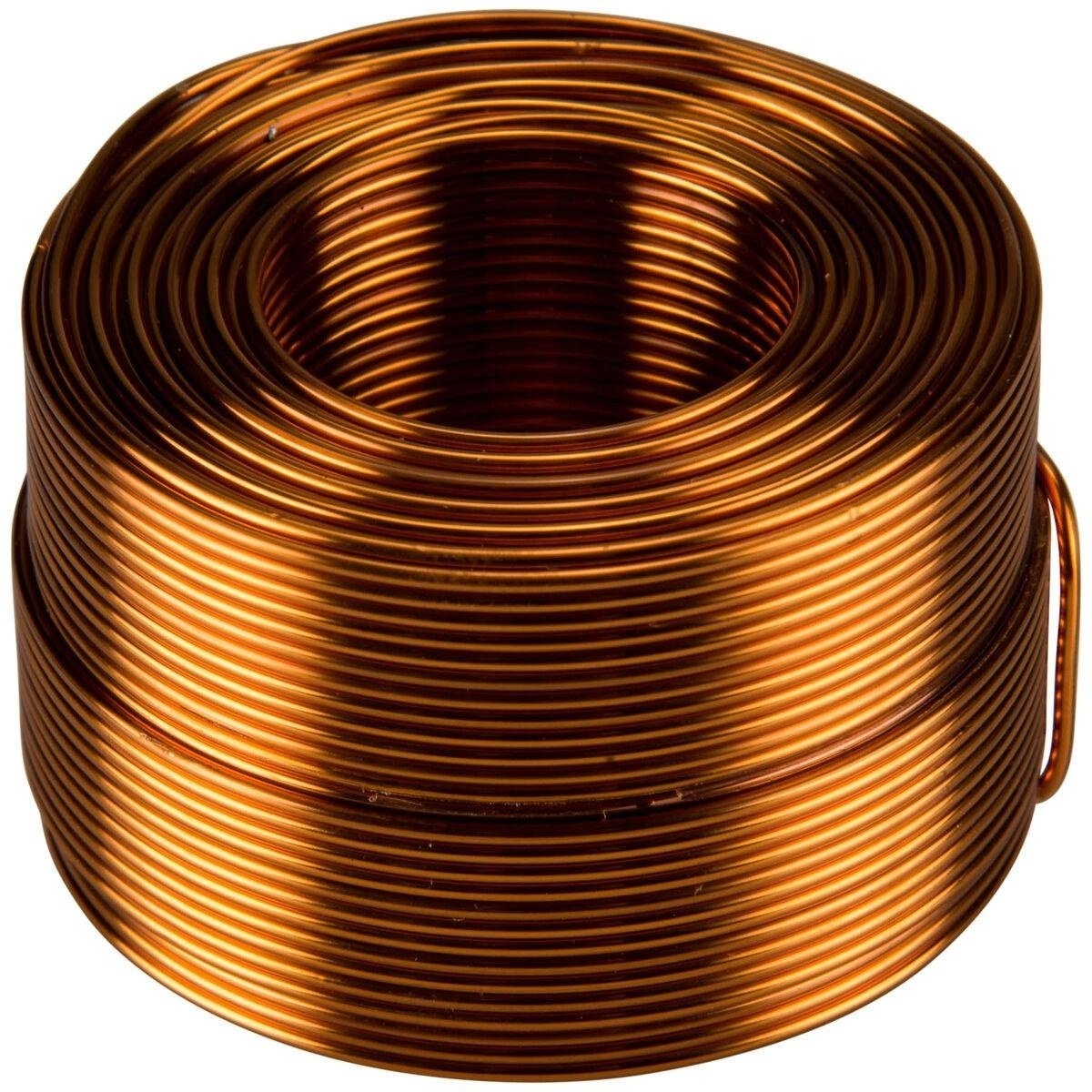

        The Jantzen Audio 000-1132 Air Core Coil is a superior crossover component designed for premium audio applications. Crafted with high-purity, Grade 1B copper wire, it is "baked" into a perfect shape to deliver a distortion-free inductor. The coil boasts a modern self-supporting design that eliminates the need for plastic bobbins. Its enameled copper wire is solderable with a self-bonding topcoat that meets class 155 standards according to IEC 60317-35, DIN EN 60317-35. The polyurethane with aliphatic polyamide bond coat ensures longevity and reliability. Notably, this Air Core Coil offers a low inductance tolerance of +/-3%, guaranteeing optimal performance. Ideal for all audio applications that demand precision and high-quality sound transmission.

        Show more

        Specifications

        Article number
        000-1132
        EAN
        9503976212589
        Coil type
        Air core coils
        Inductance
        1.8 mH
        DCR
        0.57 ohms
        Tolerance
        3%
        Wire diameter
        17 AWG
        Dimensions: Ø * H (mm)
        55 x 30
