        000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG | Air Core Coil

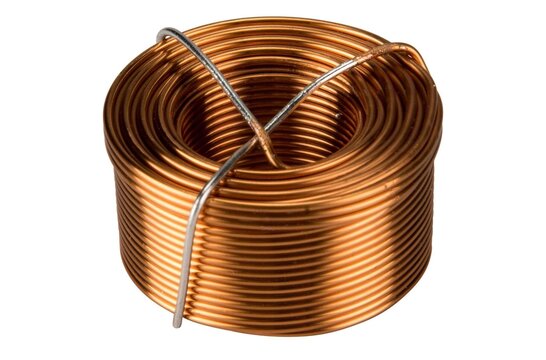

        Jantzen Audio 000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG | Air Core Coil

        €2,95

        Out of stock

        Add to cart

        Jantzen Audio 000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG | Air Core Coil
        € 2,44€ 2,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG | Air Core Coil

        Product description Jantzen Audio 000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG

        High-purity, distortion-free Jantzen Audio Air Core Coil for optimal audio performance.



        Highlights

        • High-purity copper wire for distortion-free sound
        • Modern self-supporting design without plastic bobbins
        • Solderable enameled copper wire with self-bonding topcoat
        • Low inductance tolerance of +/-3%



        Product details

        Jantzen Audio 000-1143 | 0,30 mH | 0,55 Ω | 3% | 22 AWG | Air Core Coil



        The Jantzen Audio 000-1143 Air Core Coil is a top-of-the-line component for crossover circuits in all audio applications. Constructed using high-purity copper wire, it produces distortion-free sound, thanks to its "baked" perfect shape. The modern self-supporting design eliminates the need for plastic bobbins, resulting in a more efficient and durable coil. The coil's wire is enameled and solderable with a self-bonding topcoat of class 155, in accordance with IEC 60317-35 and DIN EN 60317-35 standards. The grade 1B copper wire is coated with polyurethane with an aliphatic polyamide bond, ensuring longevity and reliability. With a low inductance tolerance of +/-3%, this coil provides consistent performance for your audio setup.

        Show more

        Specifications

        Article number
        000-1143
        EAN
        9504328189863
        Coil type
        Air core coils
        Inductance
        0.3 mH
        DCR
        0.55 ohms
        Tolerance
        3%
        Wire diameter
        22 AWG
        Dimensions: Ø * H (mm)
        33 x 15

        Show more
