        000-1422 | 3,2 mH | 0,78 Ω | 3% | 17 AWG | Air Core Coil

        Product description Jantzen Audio 000-1422 | 3,2 mH | 0,78 Ω | 3% | 17 AWG

        Compact Jantzen Air Core Coil for high-fidelity audio crossovers, 3.2mH, 0.78Ω.



        Highlights

        • High-purity 17 AWG Grade 1B copper wire for superior conductivity.
        • Modern self-supporting coil design without plastic bobbins.
        • Low inductance tolerance of +/-3% for precise audio tuning.
        • Environmentally friendly, with a solderable self-bonding topcoat.



        Product details

        Jantzen Audio 000-1422 | 3,2 mH | 0,78 Ω | 3% | 17 AWG | Air Core Coil

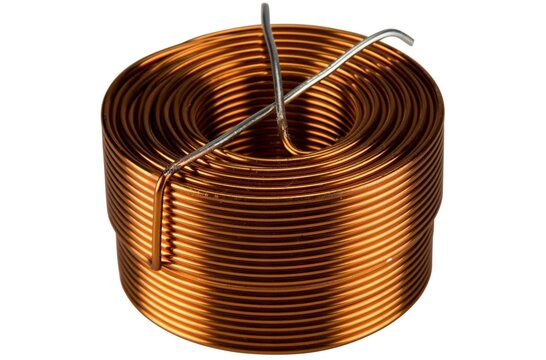

        The Jantzen Audio 000-1422 air core coil is an essential component for audiophiles seeking to design or upgrade their loudspeaker crossovers. Crafted with high-purity 17 AWG Grade 1B copper wire, it ensures minimal signal distortion and maximum conductivity. This coil's modern self-supporting design eliminates the need for plastic bobbins, thus reducing unwanted resonances and enhancing audio clarity. With a precise inductance of 3.2 mH and a low resistance of 0.78 Ω, it's engineered for high-performance audio applications. The inductance tolerance is held tightly to +/-3%, enabling accurate crossover tuning for a balanced audio experience. Furthermore, the coil is coated with a polyurethane and aliphatic polyamide bond, conforming to IEC 60317-35 and DIN EN 60317-35 standards. This ensures a solderable surface with a self-bonding topcoat, making it a sustainable choice that meets class 155 requirements. Whether you're a DIY enthusiast or a professional, the Jantzen Audio 000-1422 air core coil is the definitive choice for achieving pristine sound in your audio system.

        Show more

        Specifications

        Article number
        000-1422
        EAN
        9508397835751
        Coil type
        Air core coils
        Inductance
        3.2 mH
        DCR
        0.78 ohms
        Tolerance
        3%
        Wire diameter
        17 AWG
        Dimensions: Ø * H (mm)
        60 x 30

        Show more
