        000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG | Air Core Coil

        Jantzen Audio 000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG | Air Core Coil

        €3,25

        8 In stock

        Add to cart

        Jantzen Audio 000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG | Air Core Coil
        € 2,69€ 3,25 8 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG | Air Core Coil

        Product description Jantzen Audio 000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG

        High-grade Jantzen Audio air core coil for superior audio crossover circuits.



        Highlights

        • Grade 1B high-purity copper wire for exceptional signal clarity
        • Self-supporting coil structure eliminates the need for plastic bobbins
        • Low inductance tolerance of +/-3% for precise frequency response
        • 21 AWG enameled copper wire with solderable self-bonding topcoat



        Product details

        Jantzen Audio 000-1474 | 0,40 mH | 0,53 Ω | 3% | 21 AWG | Air Core Coil

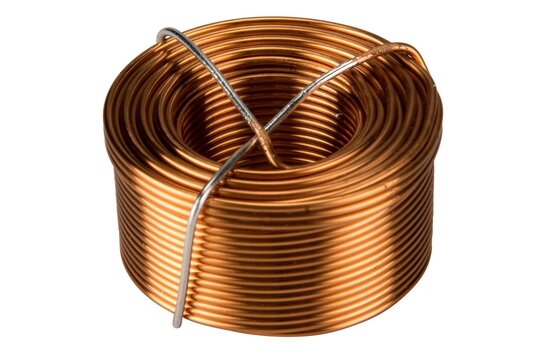

        The Jantzen Audio 000-1474 air core coil is a high-fidelity component designed to deliver uncompromised audio performance in crossover networks. Crafted from Grade 1B high-purity copper wire, this coil is "baked" into perfection, ensuring a distortion-free inductor suitable for all audio applications. Its modern self-supporting design foregoes the need for traditional plastic bobbins, enabling an unadulterated signal path. The coil features 21 AWG enameled copper wire that is solderable, thanks to its self-bonding topcoat, conforming to class 155 according to IEC 60317-35 and DIN EN 60317-35 standards. With an inductance of 0.40 mH and a resistance of 0.53 Ω, this air core coil maintains a tight inductance tolerance of +/-3%, ensuring precise control over the crossover frequency response. The coil's polyurethane construction with an aliphatic polyamide bond coat enhances its durability and longevity. Ideal for audiophiles and professional sound system designers, the Jantzen Audio 000-1474 is a testament to quality and performance in the realm of crossover components.

        Show more

        Specifications

        Article number
        000-1474
        EAN
        9507613559327
        Coil type
        Air core coils
        Inductance
        0.4 mH
        DCR
        0.53 ohms
        Tolerance
        3%
        Wire diameter
        21 AWG
        Dimensions: Ø * H (mm)
        29 x 15

        Show more
