        000-1475 | 0,18 mH | 1,35 Ω | 3% | 29 AWG | Air Core Coil

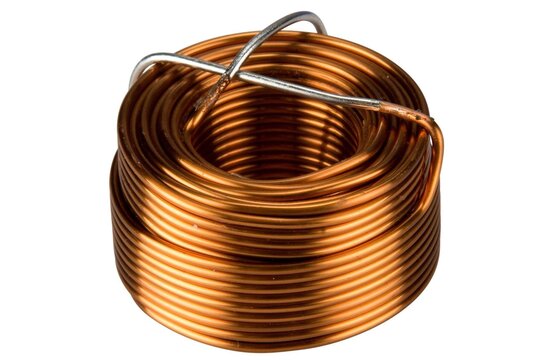

        Jantzen Audio 000-1475 | 0,18 mH | 1,35 Ω | 3% | 29 AWG | Air Core Coil

        €3,45

        3 In stock

        Add to cart

        Jantzen Audio 000-1475 | 0,18 mH | 1,35 Ω | 3% | 29 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1475 | 0,18 mH | 1,35 Ω | 3% | 29 AWG | Air Core Coil
        € 3,45 3 In stock
        +-
        Add to cart
        • We ship to United States of America
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        000-1475 | 0,18 mH | 1,35 Ω | 3% | 29 AWG | Air Core Coil

        Product description Jantzen Audio 000-1475 | 0,18 mH | 1,35 Ω | 3% | 29 AWG

        Superior 0.18mH air core coil with 1.20Ω resistance, ideal for audio crossover networks.



        Highlights

        • High-purity Grade 1B copper wire for exceptional signal fidelity.
        • Precision-crafted for minimal distortion and a +/-3% inductance tolerance.
        • Robust self-supporting design, eliminating the need for plastic bobbins.
        • Environmentally stable with a solderable enameled topcoat.



        Product details

        Jantzen Audio 000-1475 | 0,18 mH | 1,20 Ω | 3% | 29 AWG | Air Core Coil



        Jantzen Audio's Air Core Coil is meticulously crafted to deliver unparalleled audio performance. Utilizing high-purity Grade 1B copper, the 000-1475 model boasts a 0.18 mH inductance with a low resistance of 1.20 Ω and a tight inductance tolerance of +/-3%. The modern, self-supporting design of this 29 AWG coil ensures a distortion-free experience, making it the perfect component for high-quality audio crossover networks. The absence of a plastic bobbin enhances the coil's durability while maintaining a cleaner signal path. The coil is coated with polyurethane and an aliphatic polyamide bond, with a solderable enamel that complies with class 155 according to IEC 60317-35 and DIN EN 60317-35. This air core coil is a testament to Jantzen Audio's commitment to quality, ensuring that your audio applications retain their purity and clarity.

        Specifications

        Article number
        000-1475
        EAN
        9507221916864
        Coil type
        Air core coils
        Inductance
        0.18 mH
        DCR
        1.35 ohms
        Tolerance
        3%
        Wire diameter
        29 AWG

        Show more
