        Product description Jantzen Audio 000-1606 | 0,20 mH | 0,115 Ω | 3% | 15 AWG

        High-fidelity 0.20mH air core coil for premium audio crossovers.

        Highlights

        • 0.20 mH inductance with a low 3% tolerance
        • 15 AWG high-purity Grade 1B copper wire
        • Robust self-supporting coil design
        • Efficient heat resistance with class 155 insulation

        Product details

        Jantzen Audio 000-1606 | 0,20 mH | 0,115 Ω | 3% | 15 AWG | Air Core Coil

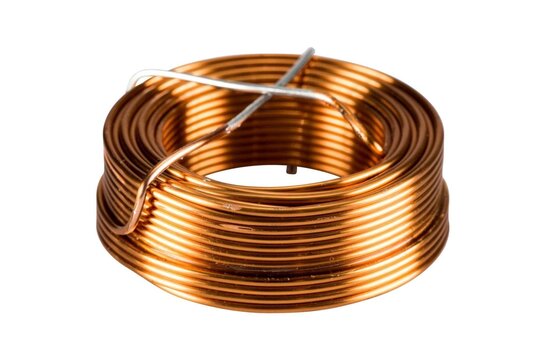

        The Jantzen Audio 000-1606 air core coil is a meticulously engineered component designed for use in high-end audio crossovers. It boasts an inductance of 0.20 mH and features an impressively low resistance of 0.115 Ω, ensuring minimal signal loss and superior sound clarity. The precise 3% inductance tolerance indicates a commitment to audio fidelity and component quality. Crafted from Grade 1B high-purity copper wire, this 15 AWG coil maintains the integrity of audio signals by reducing distortion and preserving the nuances of the music. The modern self-supporting coil design eliminates the need for plastic bobbins, thus avoiding any potential interference with the signal path. The enameled copper wire is solderable due to its self-bonding topcoat, conforming to international standards like IEC 60317-35 and DIN EN 60317-35. This also provides efficient thermal resistance, withstanding class 155 insulation requirements. Ideal for audiophiles and professional audio manufacturers, the Jantzen Audio 000-1606 air core coil is a vital component that enhances the performance of audio systems where only the purest signal transmission is acceptable.

        Show more

        Specifications

        Article number
        000-1606
        EAN
        9506466945349
        Coil type
        Air core coils
        Inductance
        0.2 mH
        DCR
        0.115 ohms
        Tolerance
        3%
        Wire diameter
        15 AWG
        Dimensions: Ø * H (mm)
        48 x 15
