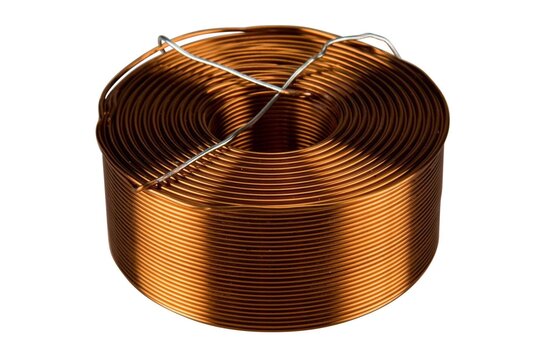

        000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG | Air Core Coil

        Jantzen Audio 000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG | Air Core Coil

        €20,95

        3 In stock

        Add to cart

        Jantzen Audio 000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG | Air Core Coil
        € 17,31€ 20,95 3 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG | Air Core Coil

        Product description Jantzen Audio 000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG

        Compact 2.5mH air core coil with low resistance for high-end audio crossover networks.



        Highlights

        • 2.5mH inductance with tight +/-3% tolerance
        • Low 0.67Ω DC resistance for minimal signal loss
        • 17 AWG high-purity copper wire for clear audio transmission
        • Self-supporting design, eliminating the need for plastic bobbins



        Product details

        Jantzen Audio 000-1673 | 2,5 mH | 0,67 Ω | 3% | 17 AWG | Air Core Coil



        The Jantzen Audio 000-1673 air core coil is meticulously crafted for audiophiles who demand uncompromised sound quality in their audio systems. Featuring an inductance of 2.5mH and an impressively low resistance of just 0.67Ω, this coil is designed to maintain audio integrity by minimizing signal loss. The precision-wound 17 AWG high-purity copper wire ensures superior electrical conductivity and audio signal clarity. What sets this air core coil apart is its modern self-supporting design, which foregoes the need for traditional plastic bobbins, thereby reducing material interactions that could color the sound. The copper wire is coated with polyurethane and an aliphatic polyamide bond, which not only provides robust thermal stability with a class 155 rating but also allows for easy soldering due to the self-bonding topcoat. Ideal for all audio applications, the Jantzen Audio 000-1673 air core coil ensures a distortion-free path for the crossover signals, thanks to its meticulous "baked" shaping process and a low inductance tolerance of +/-3%, guaranteeing consistent performance across the audio spectrum.

        Show more

        Specifications

        Article number
        000-1673
        EAN
        9502576494265
        Coil type
        Air core coils
        Inductance
        2.5 mH
        DCR
        0.67 ohms
        Tolerance
        3%
        Wire diameter
        17 AWG
        Dimensions: Ø * H (mm)
        56 x 30

        Show more
