        000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG | Air Core Coil

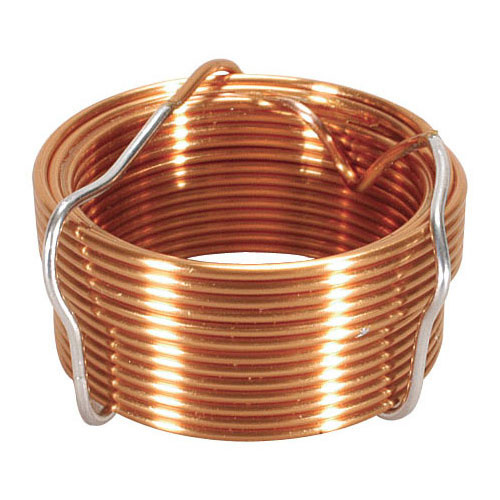

        Jantzen Audio 000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG | Air Core Coil

        €4,95

        Out of stock

        Add to cart

        Jantzen Audio 000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG | Air Core Coil

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG | Air Core Coil
        € 4,09€ 4,95 Out of stock
        • -5% Purchase 4 for only € 4,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG | Air Core Coil

        Product description Jantzen Audio 000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG

        High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor, for all audio applications.



        Highlights

        • Enameled copper wire solder able with self-bonding topcoat, class 155, acc to IEC 60317-35, DIN EN 60317-35
        • Grade 1B copper wire
        • Polyurethane with aliphatic polyamide bond coat
        • Temperature index of 155, solder ability at 390°C without removing the enamel coating, bonded under action of heat (high voltage)
        • High power handling



        Product details

        Jantzen Audio 000-1804 | 0,025 mH | 0,06 Ω | 1% | 18 AWG | Air Core Coil



        The copper wire has an insulating layer of lacquer and a bonding layer of lacquer which is melted at high voltage to create the bonding of the “baked” wire, making the inductor self-sustaining. Modern self-supporting design, low inductance tolerance of +/-3% and power handling depending on the wire used, makes it the most versatile coil on the market.



        All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



        Specifications: Overall diameter: max 1.091 • Flexibility: 10% 1 d • Elongation: ³30 % • Temperature index: 155 • Cut through: ³ 200°C • Heat shock at 175°C: 1xd • Bonding temperature: 170-200°C • Re-softening temperature: 155°C • Breakdown voltage: In accordance with IEC 60317-0-1 (7,8 kV) • Tangent delta /TD 300/: ³ 140 • Solder ability at 390°C: 8 s.

        Show more

        Specifications

        Article number
        000-1804
        EAN
        8785256838080
        Coil type
        Air core coil
        Inductance
        0.025 mH
        DCR
        0.06 ohms
        Tolerance
        1%
        Wire diameter
        18 AWG
        Power handling (RMS)
        300 watts
        Dimensions: Ø * H (mm)
        31 x 15
