        000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG | Air Core Coil

        Jantzen Audio 000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG | Air Core Coil

        €6,25

        Out of stock

        Add to cart

        Jantzen Audio 000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG | Air Core Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Jantzen Audio
        Show all Air core coils
        000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG | Air Core Coil
        € 5,17€ 6,25 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG | Air Core Coil

        Product description Jantzen Audio 000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG

        Premium 0.60mH air core coil for high-fidelity crossovers, low 0.37Ω resistance, precise 3% tolerance.



        Highlights

        • High-purity Grade 1B copper wire for exceptional signal integrity
        • Self-supporting structure, eliminating the need for plastic bobbins
        • Low inductance tolerance of +/-3% for accurate frequency crossover
        • 18 AWG enameled copper wire with solderable self-bonding topcoat



        Product details

        Jantzen Audio 000-1951 | 0,60 mH | 0,37 Ω | 3% | 18 AWG | Air Core Coil

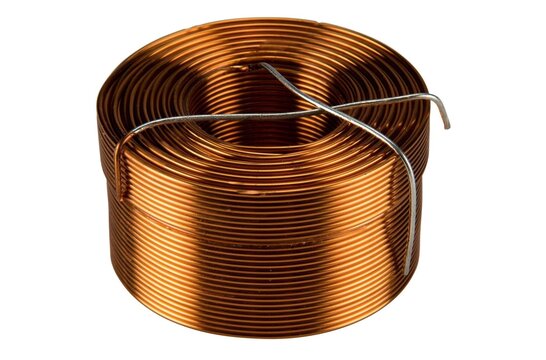

        The Jantzen Audio 000-1951 air core coil is designed to meet the rigorous standards of high-end audio applications. Utilizing Grade 1B high-purity copper wire, this coil ensures minimal signal distortion and maintains audio fidelity. The modern self-supporting design foregoes the traditional plastic bobbin, minimizing material interference with the inductor's performance. The coil's inductance is rated at 0.60mH with a low resistance of 0.37Ω, facilitating a seamless integration into audio crossover circuits. Precision is paramount, and the Jantzen Audio coil boasts a low inductance tolerance of +/-3%, guaranteeing an accurate crossover point for high-quality sound reproduction. The 18 AWG wire is coated with polyurethane and an aliphatic polyamide bond coat, which not only protects the copper but also allows for easy soldering due to its self-bonding topcoat. Adhering to IEC 60317-35 and DIN EN 60317-35 standards, this air core coil is a reliable component for enthusiasts and professionals seeking to enhance their audio systems with superior components.

        Show more

        Specifications

        Article number
        000-1951
        EAN
        9508736445771
        Coil type
        Air core coils
        Inductance
        0.6 mH
        DCR
        0.37 ohms
        Tolerance
        3%
        Wire diameter
        18 AWG
        Dimensions: Ø * H (mm)
        47 x 15

        Show more
